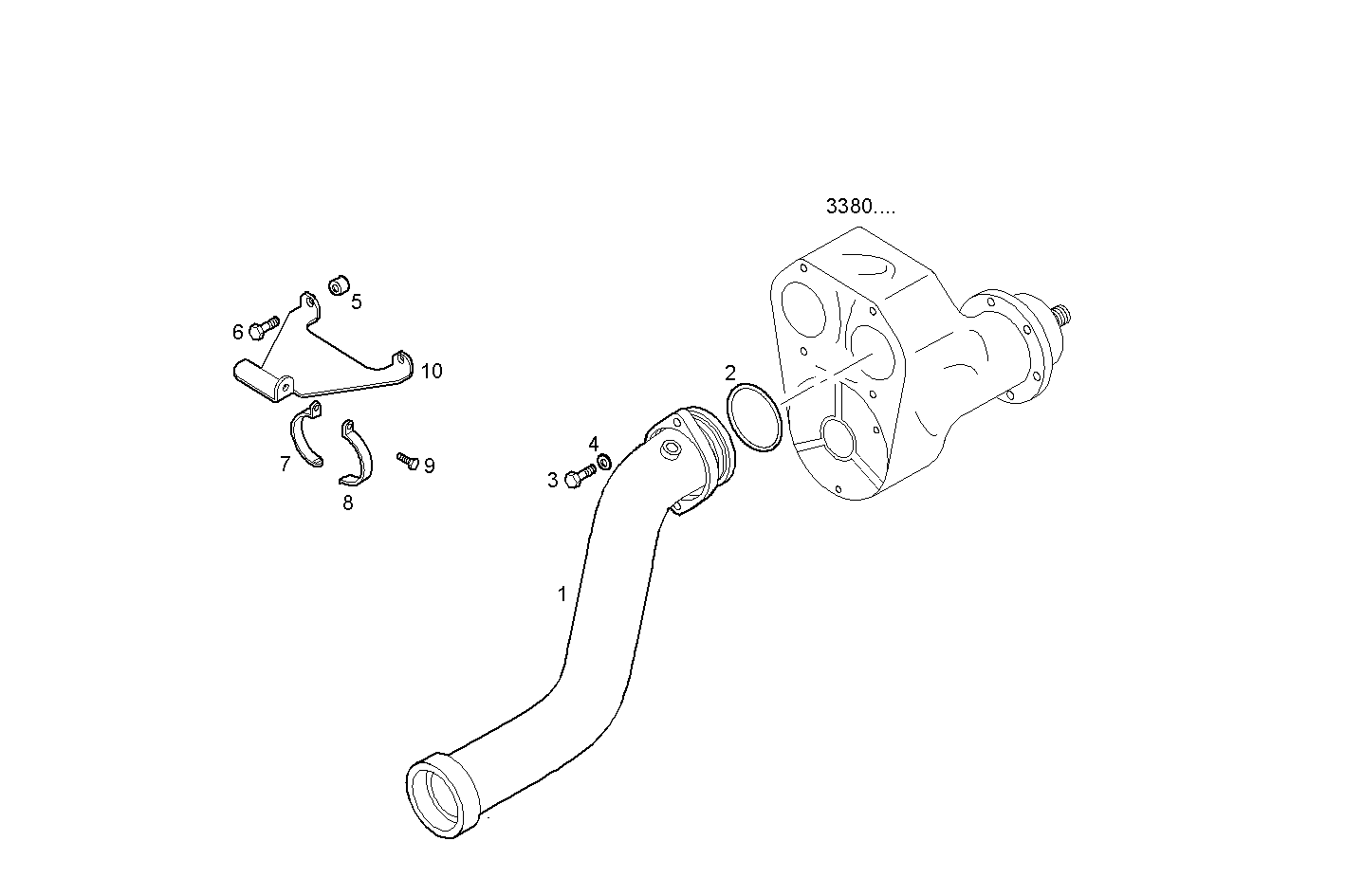

SEA WATER LINES
C13ENAM19.00 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8043524 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 17284981 | O-RING O-RING | 1 | |
| 3 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 17816214 | SPACER SPACER | 2 | |
| 6 | 16691224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 7 | 8017811 | CLAMP CLAMP | 1 | |
| 8 | 8017810 | CLAMP CLAMP | 1 | |
| 9 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 8045022 | RETAINER RETAINER | 1 |
