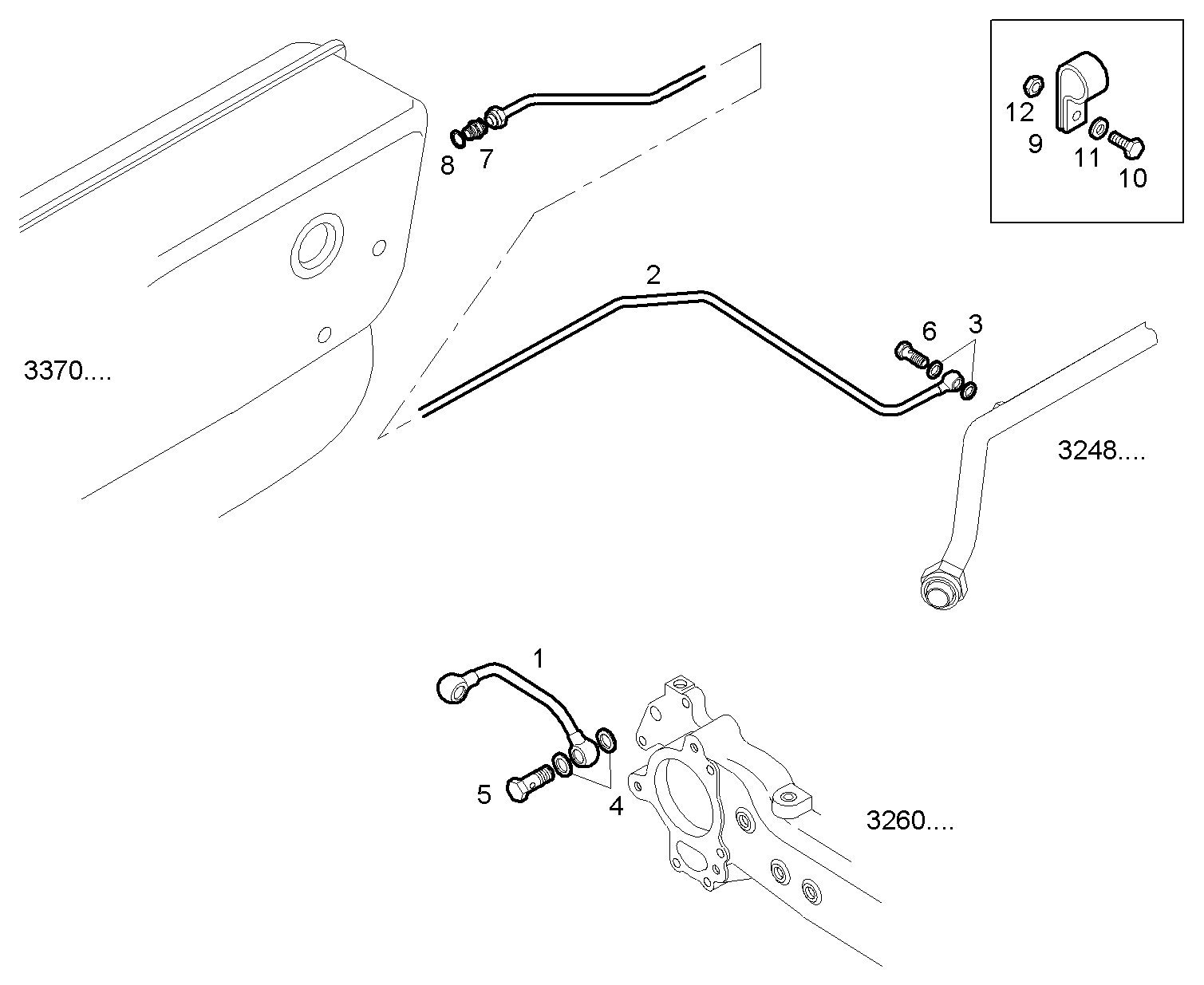

BLEEDER TUBING
C13ENSM33.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032701 | BREATHER PIPE BREATHER PIPE | 1 | |
| 2 | 8040734 | WATER PIPE WATER PIPE | 1 | |
| 3 | 98474305 | WASHER WASHER | 2 | |
| 4 | 98474308 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 6 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 16500114 | THREADED UNION THREADED UNION | 1 | |
| 8 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 17314790 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 10 | 16603425 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17800374 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 |
