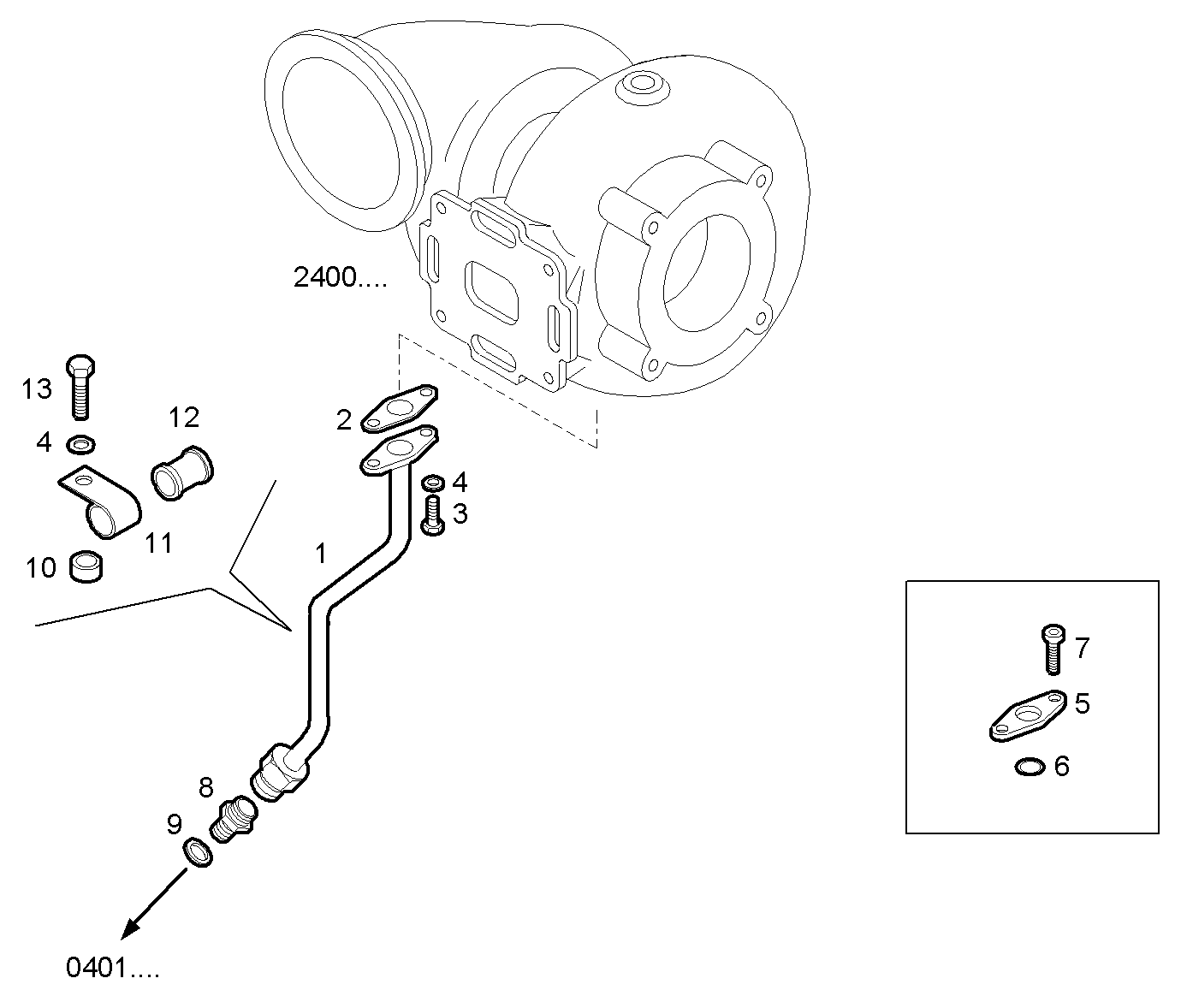

RETURN OIL LINE
C13ENSM33.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042426 | OIL LINE OIL LINE | 1 | |
| 2 | 98412509 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 8040800 | RETAINER RETAINER | 1 | |
| 6 | 17282681 | O-RING O-RING | 1 | |
| 7 | 16690624 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 8 | 8031297 | THREADED UNION THREADED UNION | 1 | |
| 9 | 18064760 | GASKET GASKET | 1 | |
| 10 | 17816614 | SPACING BAR SPACING BAR | 1 | |
| 11 | 8033225 | CLIP CLIP | 1 | |
| 12 | 4747140 | RUBBER PAD RUBBER PAD | 1 | |
| 13 | 16606034 | HEXAGON BOLT HEXAGON BOLT | 1 |
