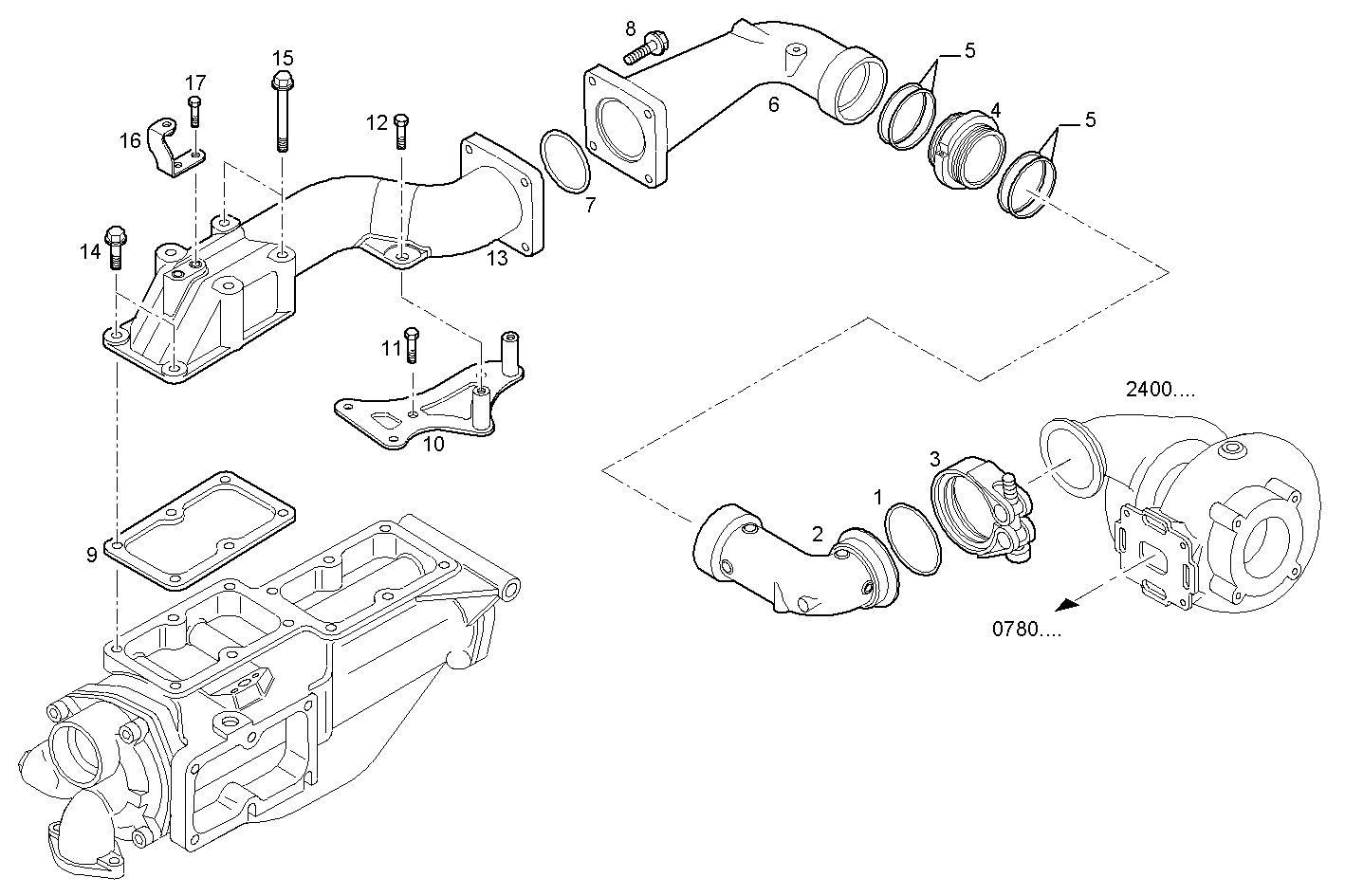

SUPERCHARGING LINES
C13ENSM33.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17285481 | O-RING O-RING | 1 | |
| 2 | 8042421 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 3 | 504073261 | CLIP CLIP | 1 | |
| 4 | 8009896 | ADAPTER ADAPTER | 1 | |
| 5 | 17290581 | O-RING O-RING | 4 | |
| 6 | 8038089 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 7 | 17291481 | O-RING O-RING | 1 | |
| 8 | 16587425 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 9 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 8043535 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 16600224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 8043431 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 14 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16593125 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 8043581 | RETAINER RETAINER | 1 | |
| 17 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 2 |
