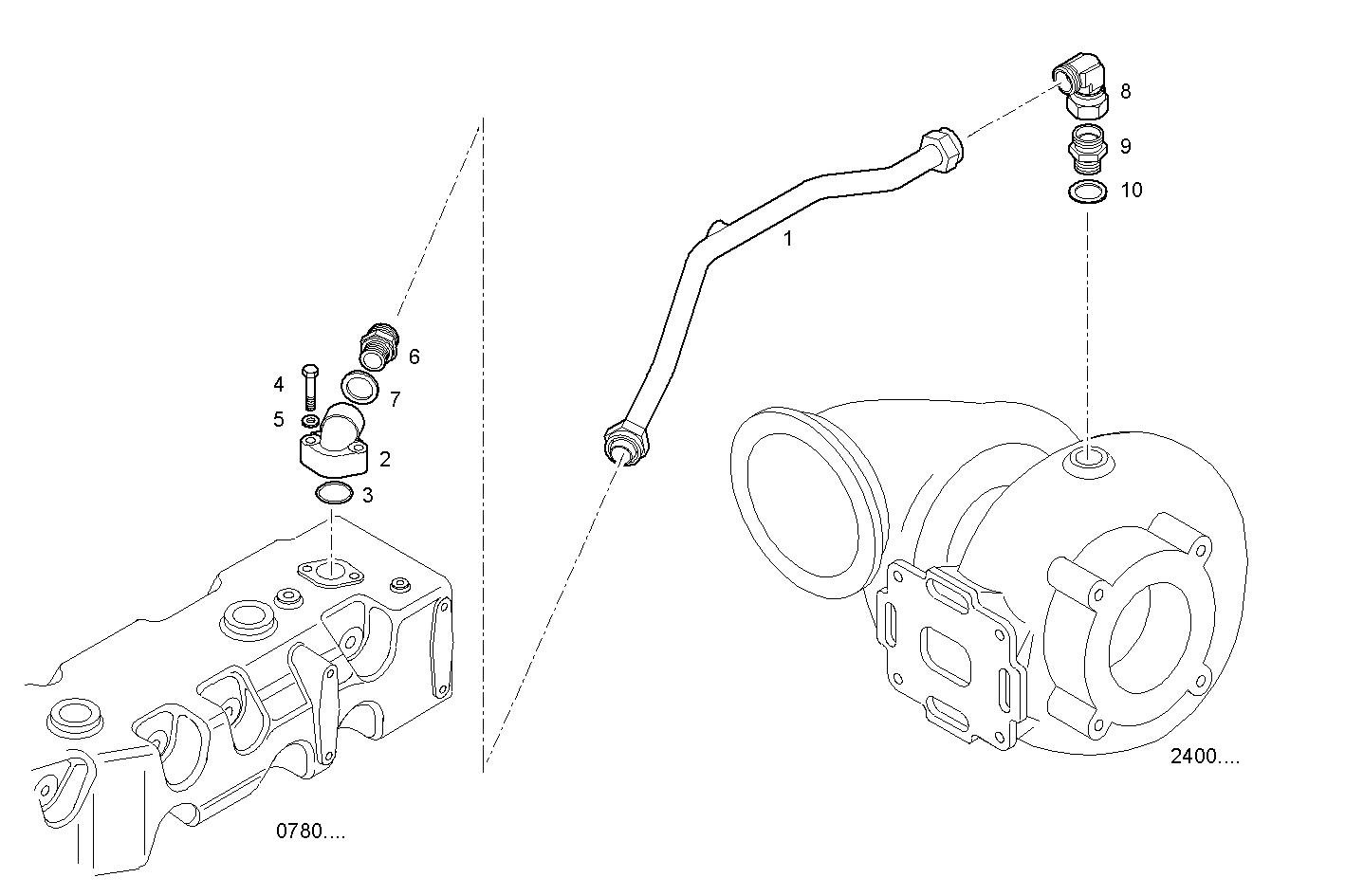

TURBO WATER OUTLET PIPE
C13ENSM33.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040703 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8039949 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 3 | 98465110 | O-RING O-RING | 1 | |
| 4 | 16605934 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 6 | 8110943 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 99489024 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 16526514 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 9 | 8040224 | THREADED UNION THREADED UNION | 1 | |
| 10 | 98429282 | SEAL GASKET SEAL GASKET | 1 |
