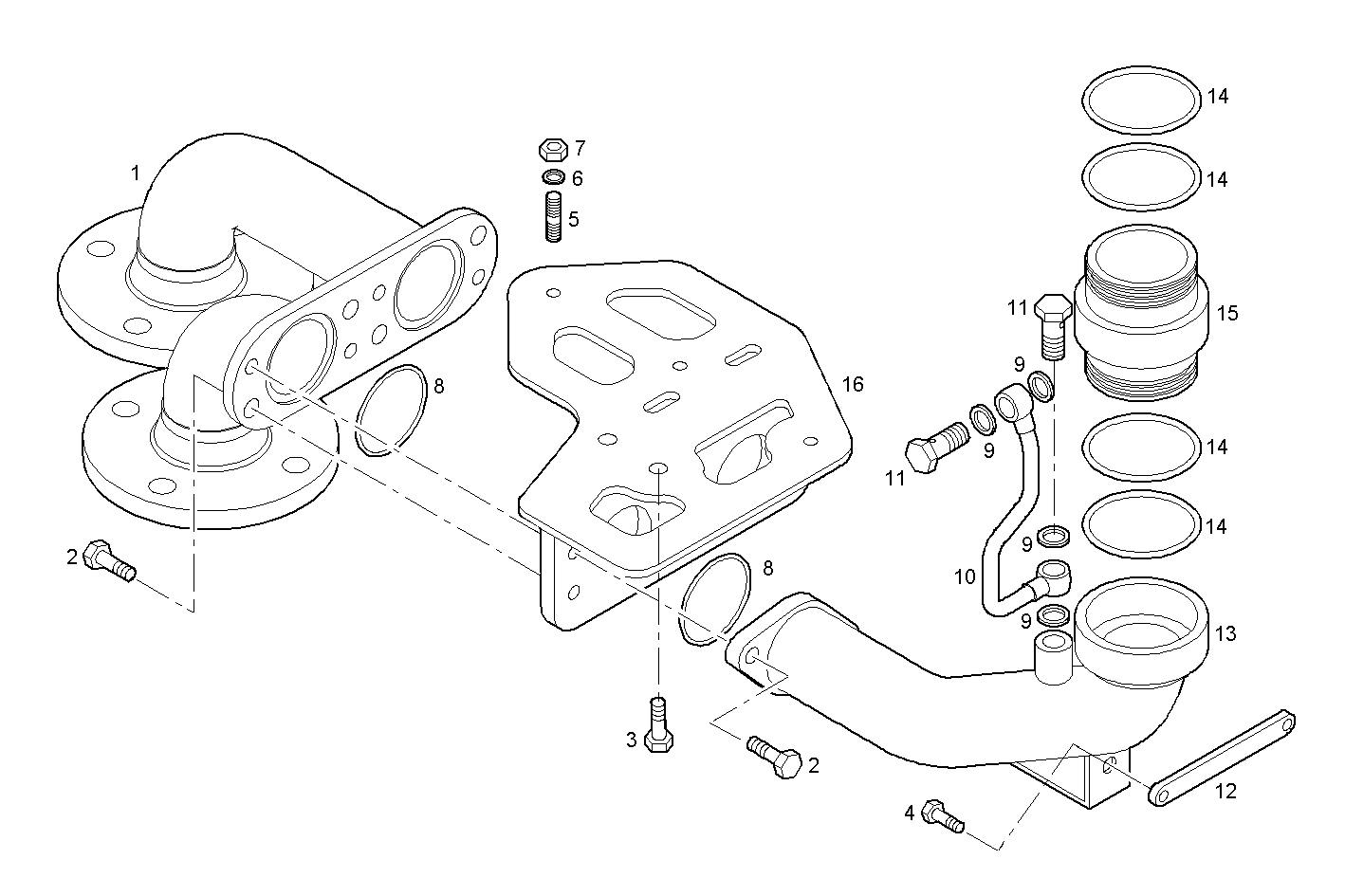

SEA WATER LINES
C13ENSM33.30 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8046323 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 3 | 16587024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 8039231 | STUD STUD | 3 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 7 | 17044725 | HEXAGON NUT HEXAGON NUT | 3 | |
| 8 | 17290081 | O-RING O-RING | 4 | |
| 9 | 98474308 | SEAL GASKET SEAL GASKET | 4 | |
| 10 | 8046498 | BREATHER PIPE BREATHER PIPE | 1 | |
| 11 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 12 | 8046495 | SPACING BAR SPACING BAR | 1 | |
| 13 | 8046181 | SEA WATER PIPE SEA WATER PIPE | 2 | |
| 14 | 17290581 | O-RING O-RING | 8 | |
| 15 | 8046188 | ADAPTER ADAPTER | 2 | |
| 16 | 8046370 | RETAINER RETAINER | 1 |
