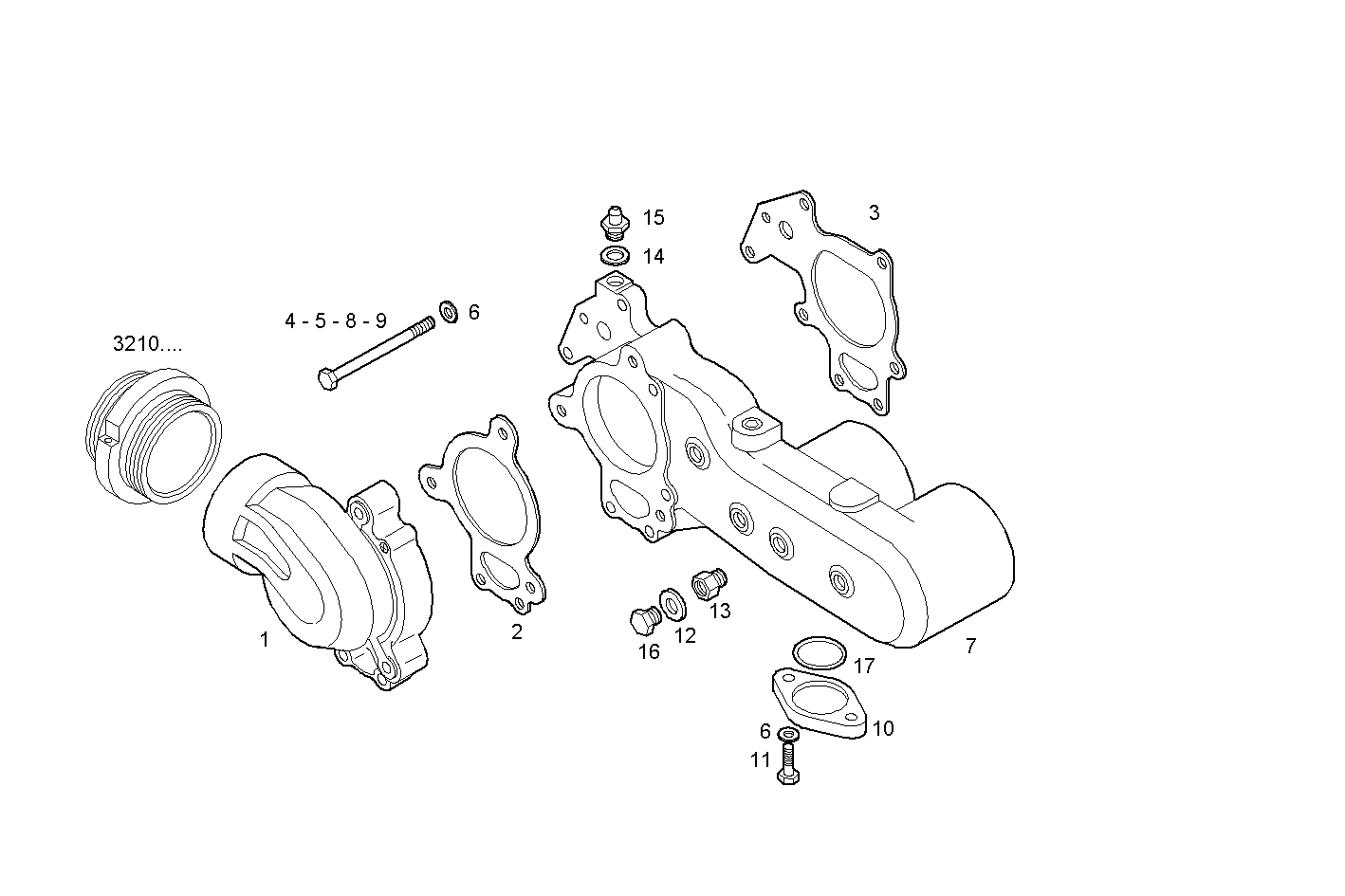

TEMPERATURE REGULATOR
C13ENSM33.30 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8047117 | THERMOSTAT THERMOSTAT | 1 | |
| 2 | 8032186 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8032184 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 16606824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 11 | |
| 7 | 8032716 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 8 | 16607124 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 16607024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 8040699 | FLANGE FLANGE | 1 | |
| 11 | 16606924 | SCREW SCREW | 1 | |
| 12 | 99489016 | SEAL GASKET SEAL GASKET | 1 | |
| 13 | 8041871 | THREADED UNION THREADED UNION | 1 | |
| 14 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 500304562 | BREATHER PLUG BREATHER PLUG | 1 | |
| 16 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 17 | 17289481 | O-RING O-RING | 1 |
