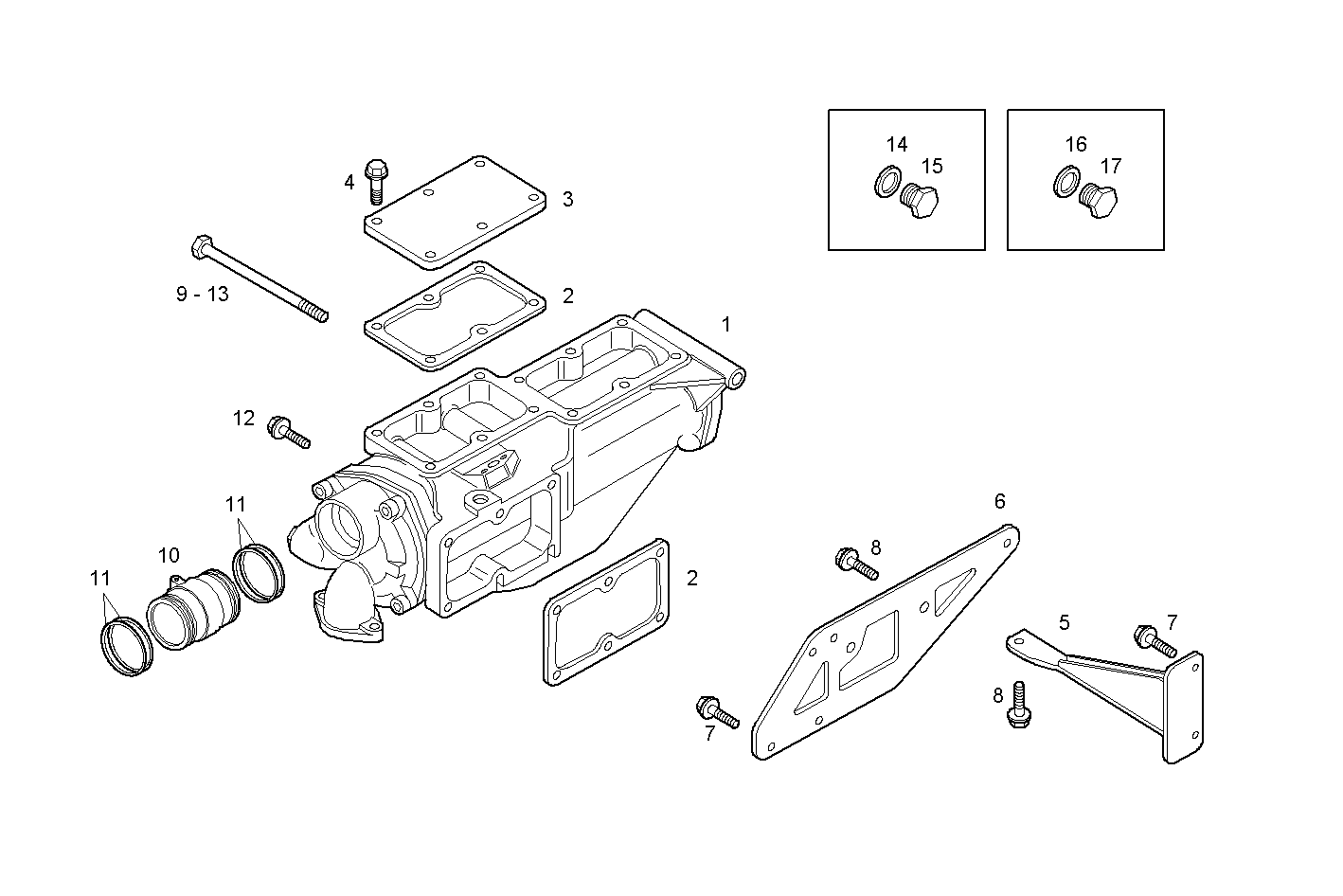

AIR - WATER HEAT EXCHANGER
C13ENTM50.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036971 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 2 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 3 | 8034337 | COVER COVER | 1 | |
| 4 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 5 | 8038264 | RETAINER RETAINER | 1 | |
| 6 | 8037508 | RETAINER RETAINER | 1 | |
| 7 | 16600224 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 8 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 16599324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 8038043 | ADAPTER ADAPTER | 1 | |
| 11 | 17290481 | O-RING O-RING | 4 | |
| 12 | 16587325 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 13 | 8037478 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 14 | 99489016 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 16 | 99489019 | WASHER WASHER | 1 | |
| 17 | 16992415 | THREADED PLUG THREADED PLUG | 1 |
