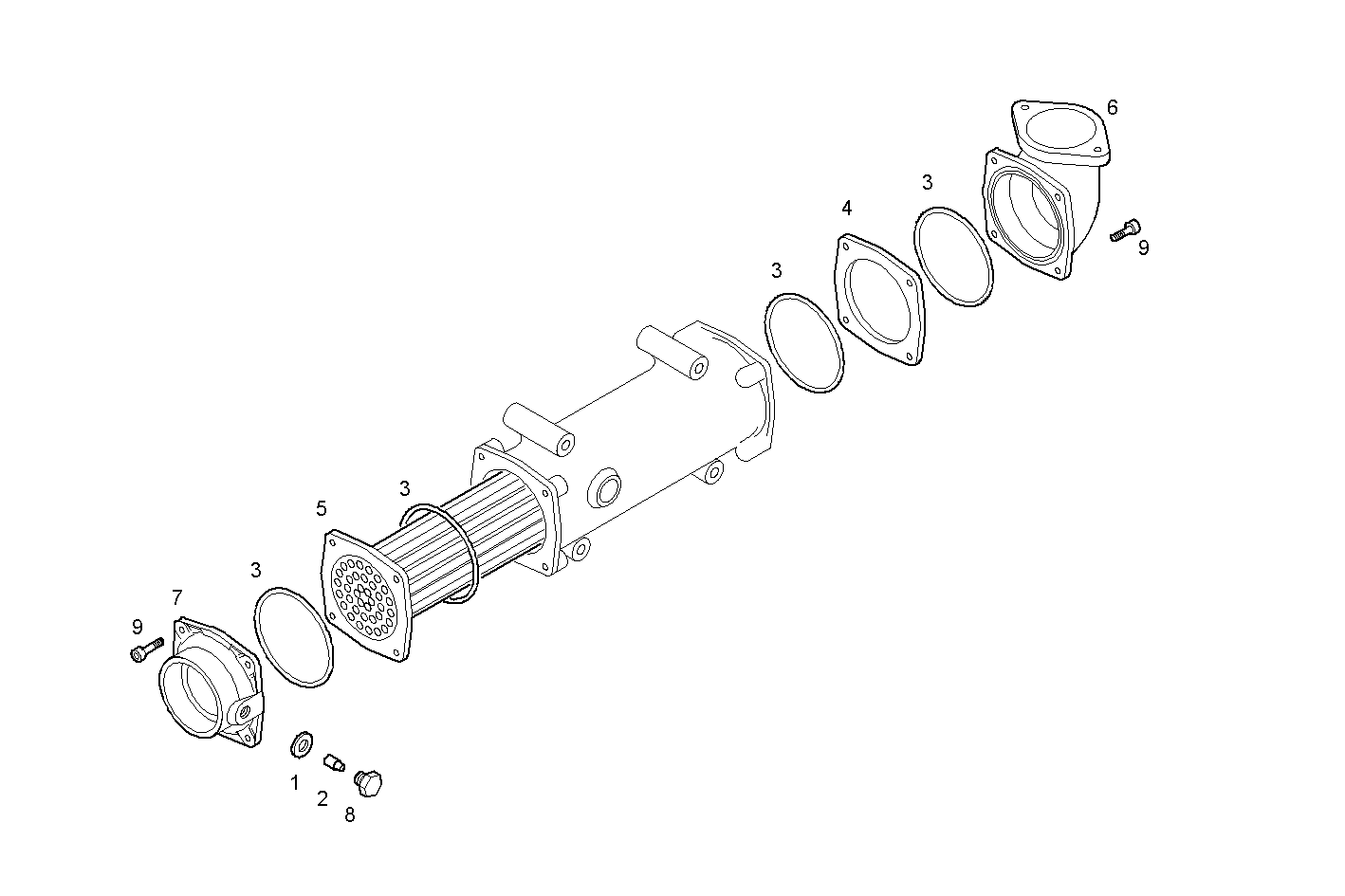

ARRANGED FOR GEAR ZF
C13ENTM50.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99489020 | SEAL GASKET SEAL GASKET | 1 | |
| 2 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 3 | 8041542 | O-RING O-RING | 4 | |
| 4 | 8041541 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8041540 | TUBE STACK TUBE STACK | 1 | |
| 6 | 8041539 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 7 | 8041538 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 8 | 4917793 | PLUG PLUG | 1 | |
| 9 | 16690924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 |
