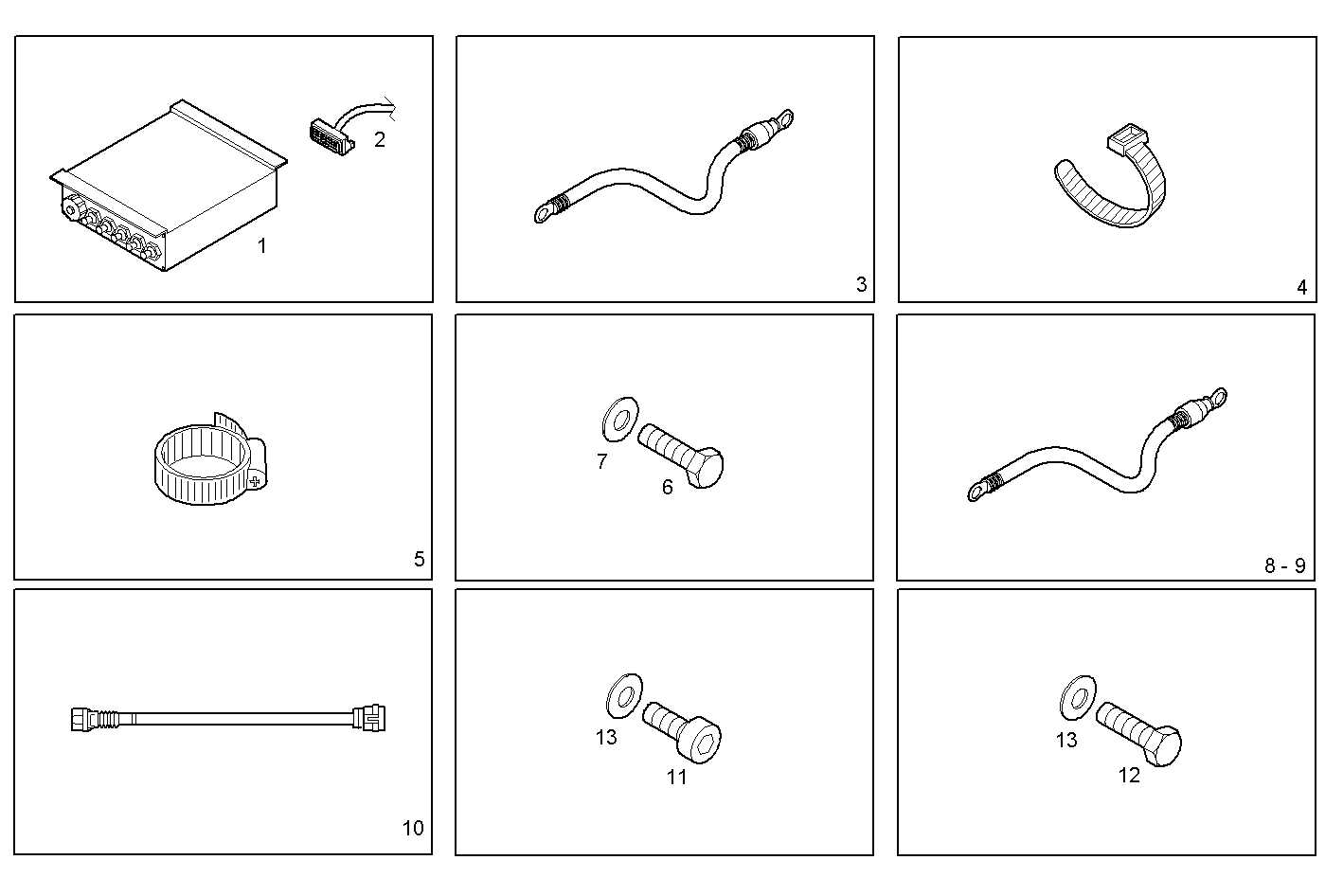

CABLES
C13ENTM50.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034887 | SWITCH PANEL SWITCH PANEL | 1 | |
| 2 | 8034891 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 8038053 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 4 | 14560187 | CABLE STRAP CABLE STRAP | 33 | |
| 5 | 10450590 | PIPE CLIP PIPE CLIP | 2 | |
| 6 | 16605324 | SCREW SCREW | 2 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 8031723 | EARTH WIRE EARTH WIRE | 5 | |
| 9 | 8031281 | EARTH WIRE EARTH WIRE | 1 | |
| 10 | 8039269 | WIRE/CABLE WIRE/CABLE | 1 | |
| 11 | 16688924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 12 | 16603524 | SCREW SCREW | 2 | |
| 13 | 17094724 | WASHER WASHER | 6 |
