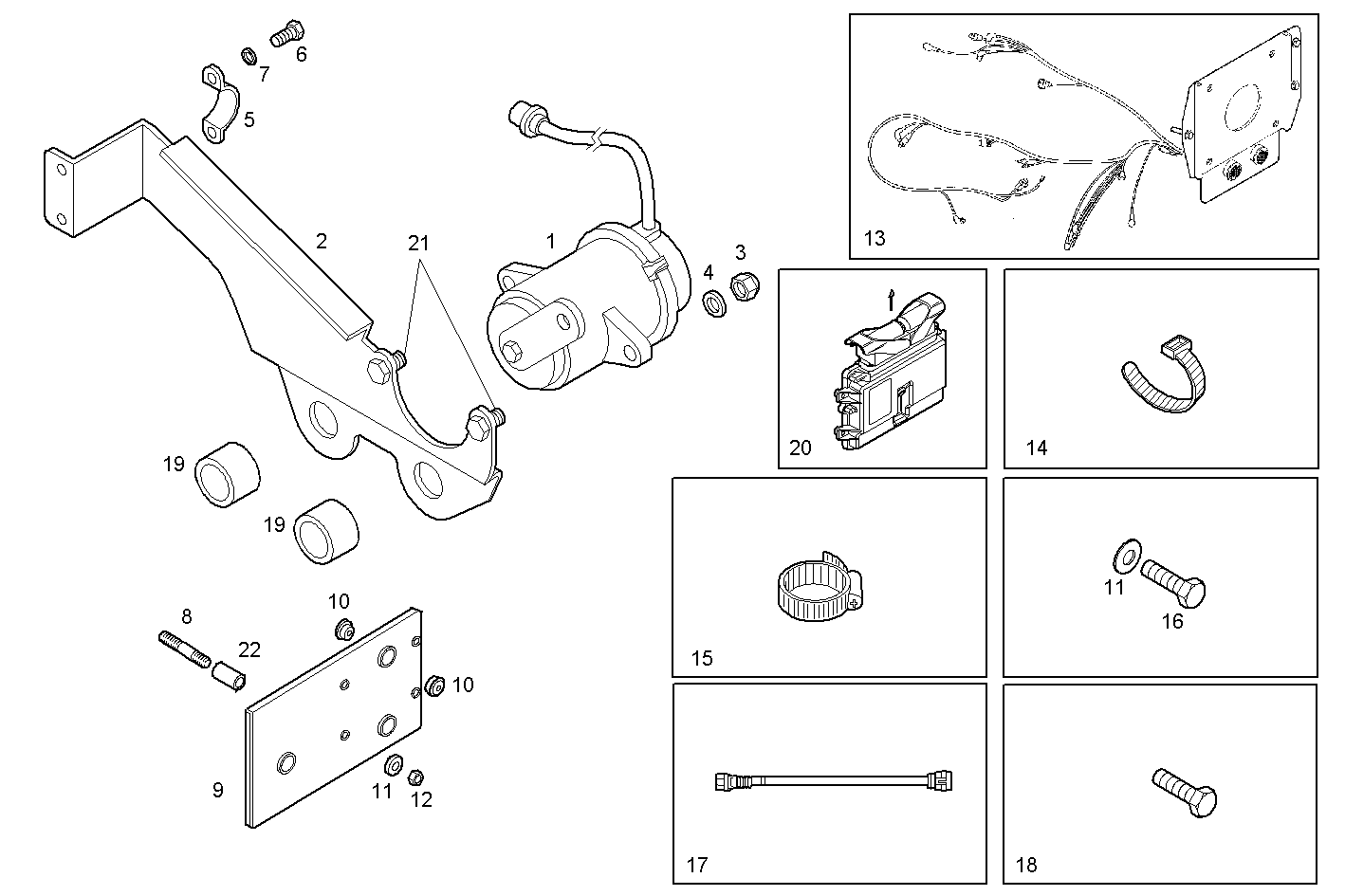

ELECTRONIC CONTROL UNIT
C13ENTM50.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030707 | POTENTIOMETER POTENTIOMETER | 1 | |
| 2 | 8036696 | RETAINER RETAINER | 1 | |
| 3 | 17787270 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 17088474 | WASHER WASHER | 2 | |
| 5 | 8033783 | RETAINER RETAINER | 1 | |
| 6 | 16601924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17800274 | SPRING WASHER SPRING WASHER | 2 | |
| 8 | 16729824 | STUD STUD | 4 | |
| 9 | 8033485 | BRACKET BRACKET | 1 | |
| 10 | 98498817 | DOWEL DOWEL | 6 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 17037925 | HEXAGON NUT HEXAGON NUT | 4 | |
| 13 | 8038053 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 14 | 14560187 | CABLE STRAP CABLE STRAP | 33 | |
| 15 | 10450590 | PIPE CLIP PIPE CLIP | 2 | |
| 16 | 16043024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 8039269 | WIRE/CABLE WIRE/CABLE | 1 | |
| 18 | 16586824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 19 | 4753027 | SPACER SPACER | 2 | |
| 20 | 8093995 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 21 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 17816314 | SPACING BAR SPACING BAR | 4 |
