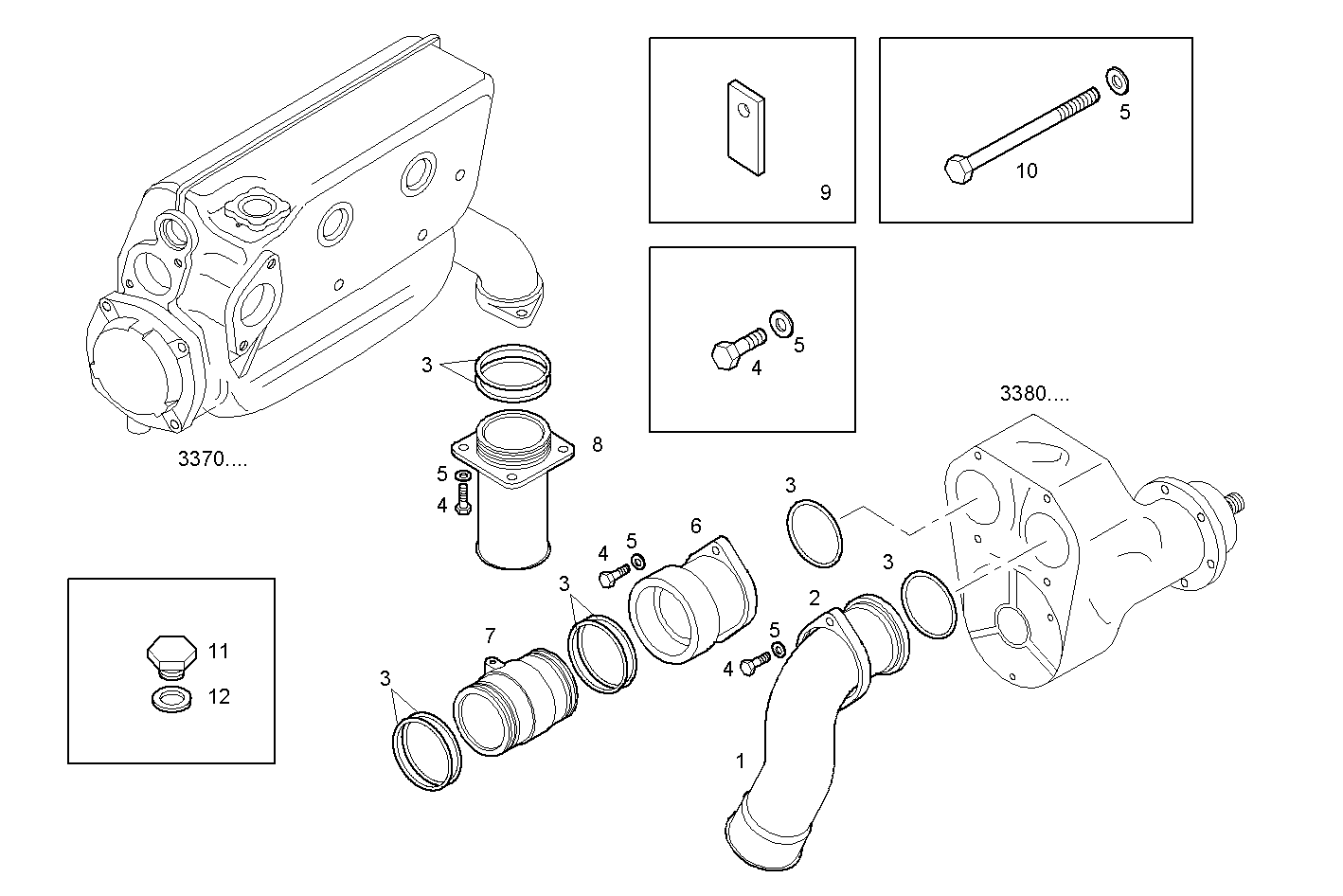

SEA WATER LINES
C13ENTM50.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8038239 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 8038238 | FLANGE FLANGE | 1 | |
| 3 | 17290481 | O-RING O-RING | 8 | |
| 4 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 8038208 | ADAPTER ADAPTER | 1 | |
| 7 | 8038043 | ADAPTER ADAPTER | 1 | |
| 8 | 8039848 | SPACING BAR SPACING BAR | 1 | |
| 9 | 8038156 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 10 | 16045424 | SCREW SCREW | 2 | |
| 11 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 12 | 99489018 | SEAL GASKET SEAL GASKET | 1 |
