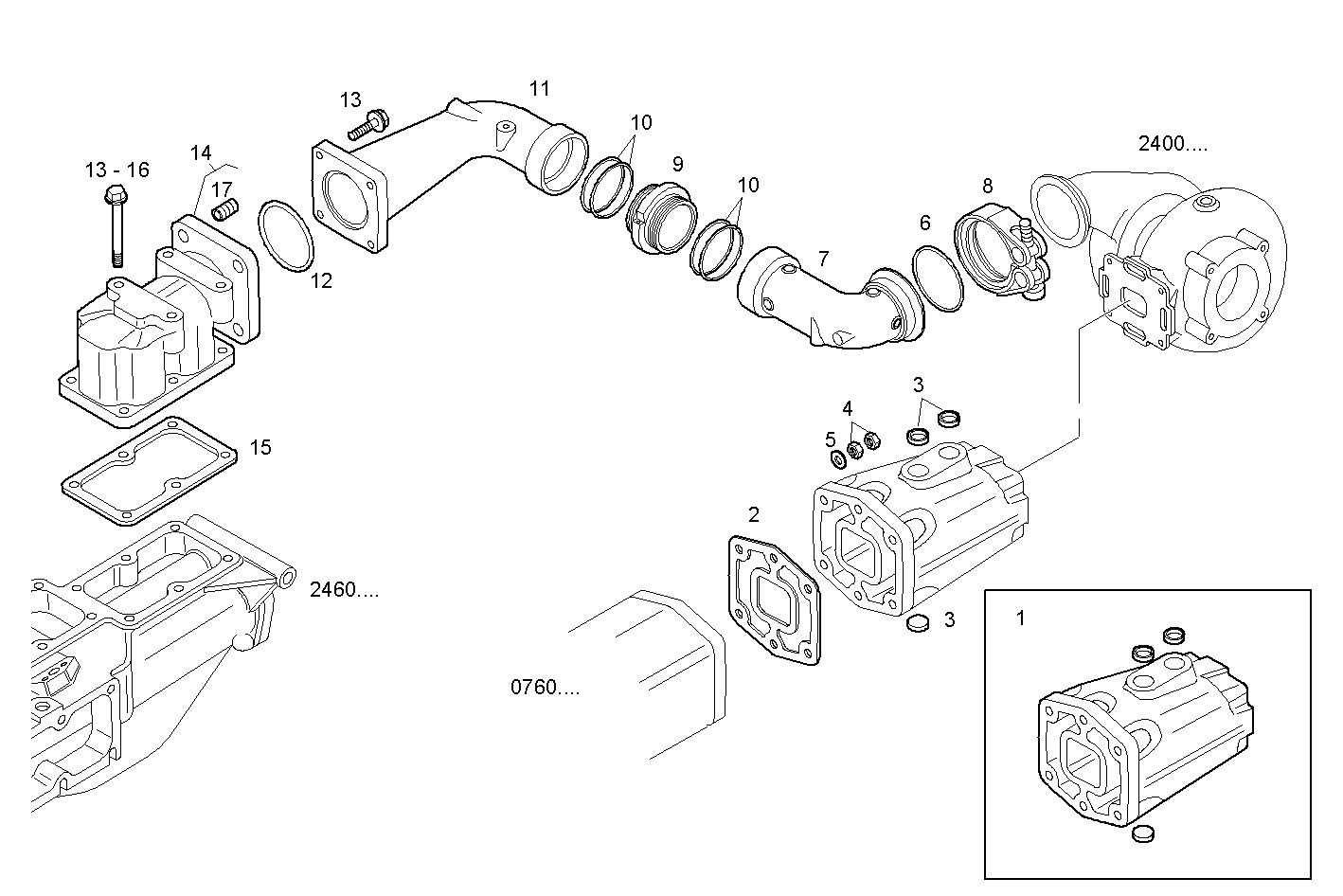

SUPERCHARGING LINES
C13ENTM50.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8038631 | MARINE EXHAUST PIPE MARINE EXHAUST PIPE | 1 | |
| 2 | 8035875 | EXH. MANIFOLD GKT EXH. MANIFOLD GKT | 1 | |
| 3 | 16990870 | LOCK PLUG LOCK PLUG | 3 | |
| 4 | 17038425 | HEXAGON NUT HEXAGON NUT | 12 | |
| 5 | 17090974 | SPRING WASHER SPRING WASHER | 6 | |
| 6 | 17285481 | O-RING O-RING | 1 | |
| 7 | 8042421 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 8 | 504073261 | CLIP CLIP | 1 | |
| 9 | 8009896 | ADAPTER ADAPTER | 1 | |
| 10 | 17290581 | O-RING O-RING | 4 | |
| 11 | 8038089 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 12 | 17291481 | O-RING O-RING | 1 | |
| 13 | 16587425 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 14 | 8037749 | AIR HOOD AIR HOOD | 1 | |
| 15 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 16 | 16586524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17873371 | THREADED INSERT THREADED INSERT | 4 |
