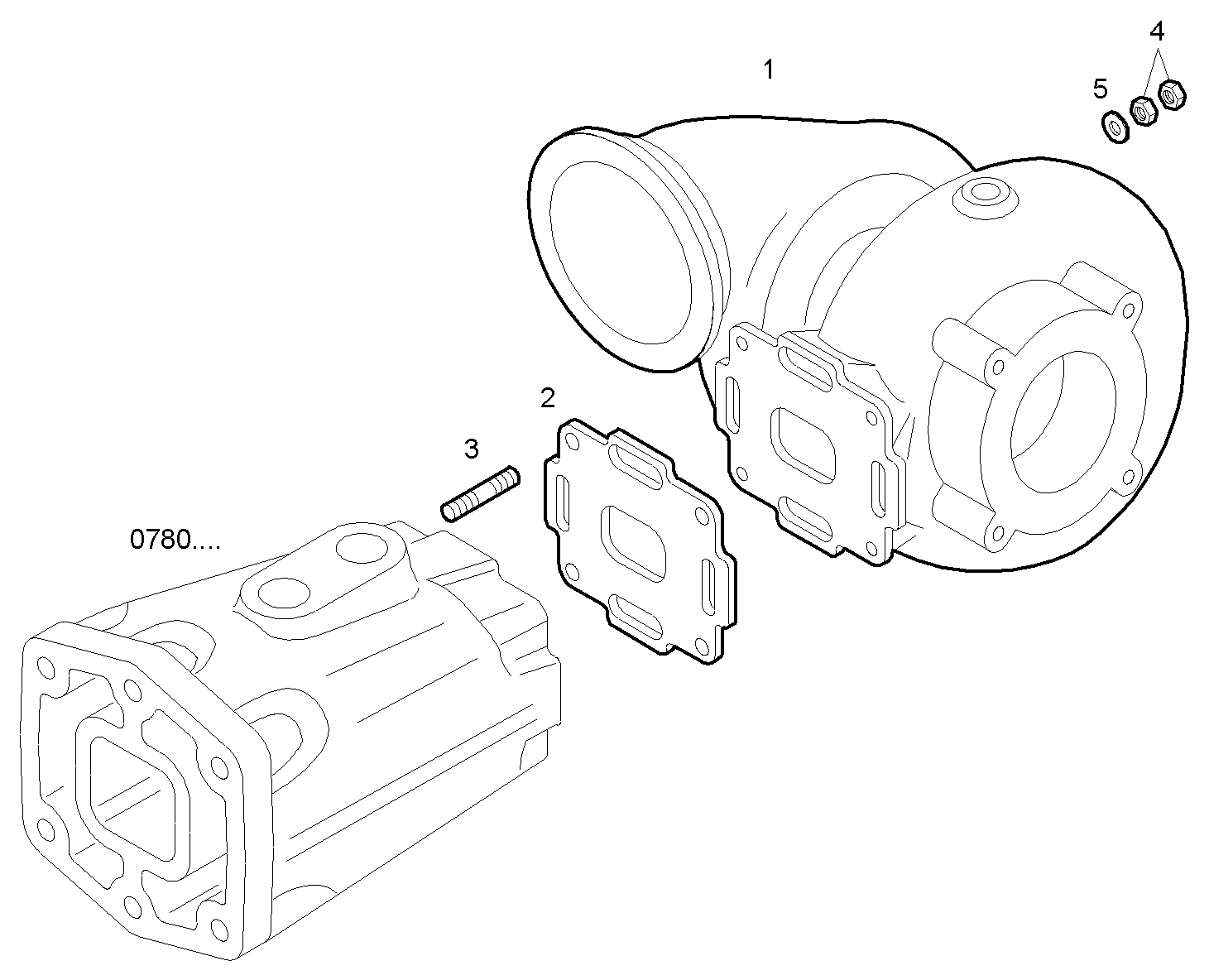

TURBOCHARGER
C13ENTM50.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042405 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 8027510 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16748834 | STUD STUD | 4 | |
| 4 | 17042631 | NUT NUT | 8 | |
| 5 | 17090274 | WASHER WASHER | 4 |
C13ENTM50.10 — CURSOR 13
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042405 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 8027510 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16748834 | STUD STUD | 4 | |
| 4 | 17042631 | NUT NUT | 8 | |
| 5 | 17090274 | WASHER WASHER | 4 |
