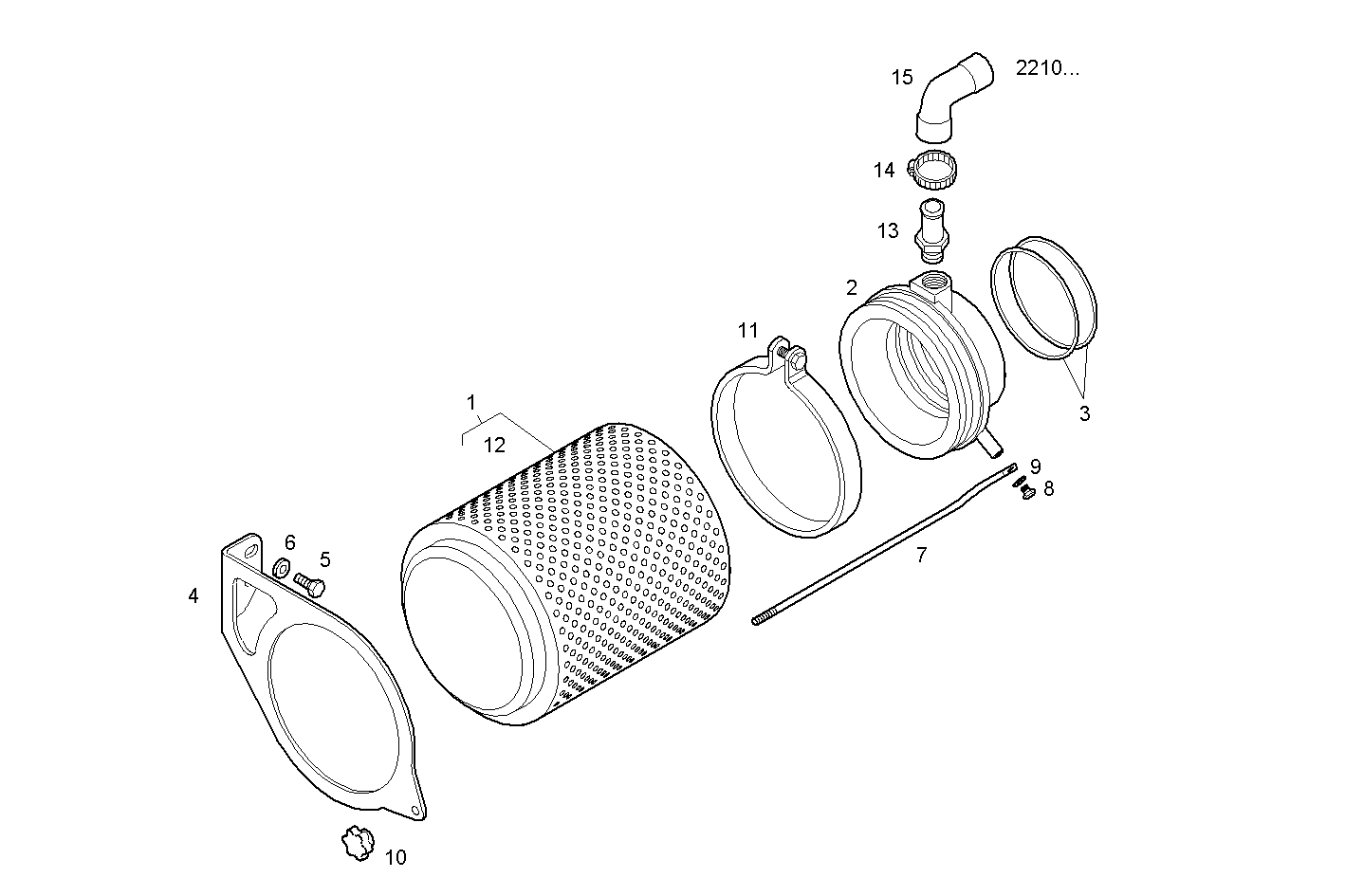

AIR CLEANER
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8039404 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8039901 | SUPPORT SUPPORT | 1 | |
| 3 | 17291481 | O-RING O-RING | 2 | |
| 4 | 8040968 | SUPPORT SUPPORT | 1 | |
| 5 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 8031906 | TIE ROD TIE ROD | 1 | |
| 8 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17088674 | WASHER WASHER | 1 | |
| 10 | 8030569 | HANDWHEEL HANDWHEEL | 1 | |
| 11 | 8032358 | CLIP CLIP | 1 | |
| 12 | 8039624 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 | |
| 13 | 4633506 | THREADED UNION THREADED UNION | 1 | |
| 14 | 17764593 | CLIP CLIP | 2 | |
| 15 | 8044073 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
