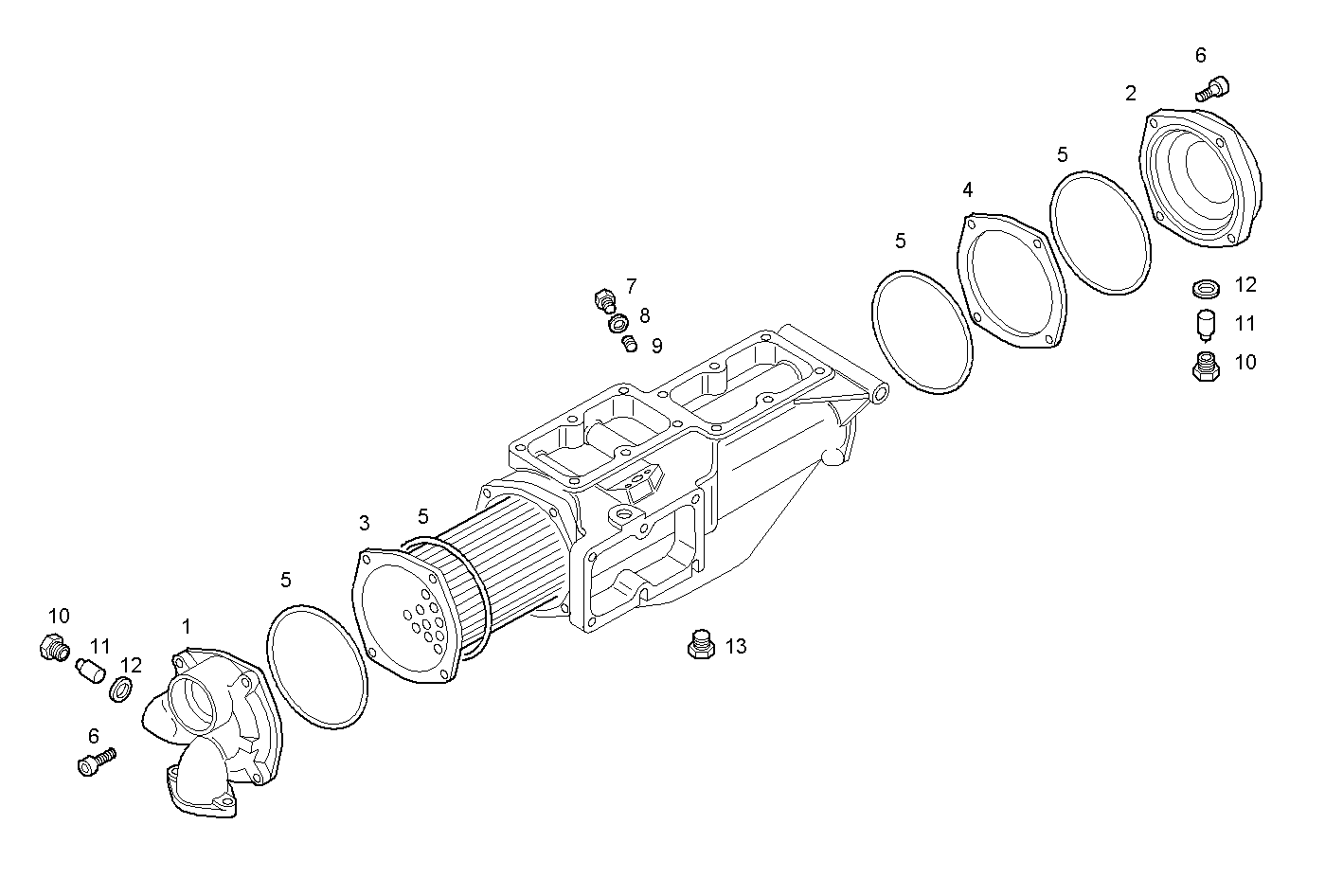

AIR - WATER HEAT EXCHANGER (COMPONENTS)
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041084 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 2 | 8041085 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 3 | 8041086 | TUBE STACK TUBE STACK | 1 | |
| 4 | 8041087 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8041088 | O-RING O-RING | 4 | |
| 6 | 16990924 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 8 | |
| 7 | 8041089 | SCREW SCREW | 1 | |
| 8 | 8041090 | WASHER WASHER | 1 | |
| 9 | 8041091 | SCREW SCREW | 1 | |
| 10 | 4917793 | PLUG PLUG | 2 | |
| 11 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 12 | 99489020 | SEAL GASKET SEAL GASKET | 2 | |
| 13 | 16992111 | THREADED PLUG THREADED PLUG | 1 |
