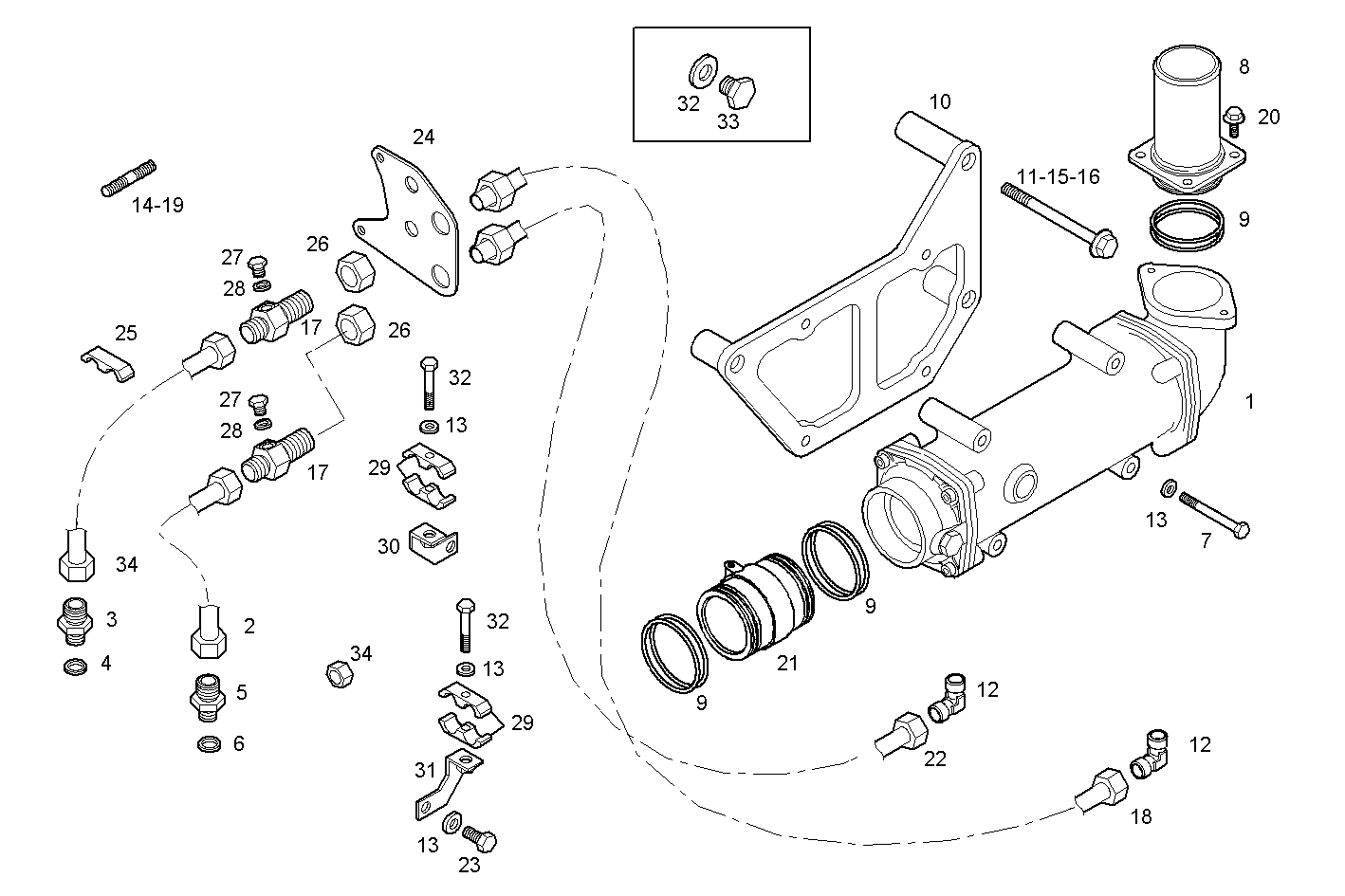

ARRANGED FOR TECHNODRIVE MARINE GEAR
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040270 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 7 | 17458234 | LOCKING SCREW LOCKING SCREW | 8 | |
| 8 | 8039848 | SPACING BAR SPACING BAR | 1 | |
| 9 | 17290481 | O-RING O-RING | 6 | |
| 10 | 8041594 | RETAINER RETAINER | 2 | |
| 11 | 16586924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 16512119 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 12 | 8111751 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 14 | 17368624 | STUD STUD | 2 | |
| 15 | 16598324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16592625 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 8113794 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 8041590 | OIL LINE OIL LINE | 1 | |
| 19 | 17368225 | STUD STUD | 10 | |
| 20 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 21 | 8038043 | ADAPTER ADAPTER | 1 | |
| 22 | 8041588 | OIL LINE OIL LINE | 1 | |
| 23 | 16607434 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 8032349 | RETAINER RETAINER | 1 | |
| 25 | 8041552 | SUPPORT SUPPORT | 1 | |
| 26 | 41217235 | HEXAGON NUT HEXAGON NUT | 2 | |
| 27 | 11903140 | PLUG PLUG | 2 | |
| 28 | 10284460 | SEAL GASKET SEAL GASKET | 2 | |
| 28 | 11271460 | GASKET GASKET | 2 | |
| 29 | 8010505 | CLAMP CLAMP | 4 | |
| 31 | 8030814 | RETAINER RETAINER | 1 | |
| 32 | 16605934 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 33 | 16997611 | THREADED PLUG THREADED PLUG | 1 | |
| 34 | 17037921 | NUT NUT | 2 | |
| 34 | 8113774 | HOSE HOSE | 2 | |
| 35 | 16508811 | NUT NUT | 2 | |
| 36 | 8011138 | PIPE SOCKET PIPE SOCKET | 2 | |
| 37 | 8011519 | PIPE SOCKET PIPE SOCKET | 2 |
