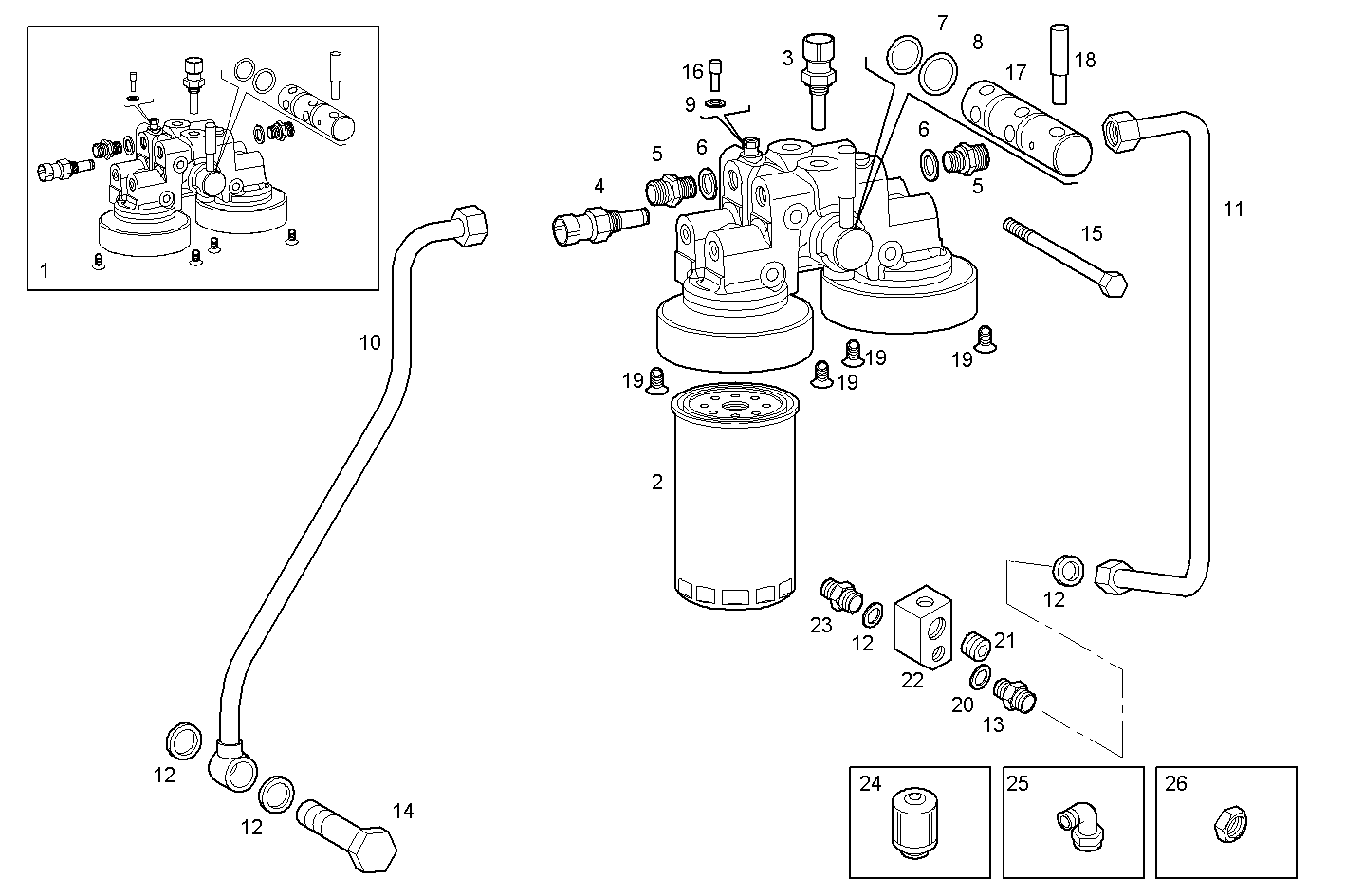

DOUBLE FUEL FILTER
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036586 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 2 | 2991585 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 2 | |
| 3 | 500382599 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 4 | 500346074 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 41905554 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 7 | 17282081 | O-RING O-RING | 1 | |
| 8 | 17282281 | O-RING O-RING | 1 | |
| 9 | 99469377 | WASHER WASHER | 1 | |
| 10 | 8043054 | FUEL LINE FUEL LINE | 1 | |
| 11 | 8045156 | FUEL LINE FUEL LINE | 1 | |
| 12 | 99489019 | WASHER WASHER | 5 | |
| 13 | 41031568 | THREADED UNION THREADED UNION | 1 | |
| 14 | 4864084 | BANJO BOLT BANJO BOLT | 1 | |
| 15 | 16598425 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 16 | 8033457 | DRAIN SCREW DRAIN SCREW | 1 | |
| 17 | 8036552 | LEVER LEVER | 1 | |
| 18 | 8009717 | HANDLE BALL HANDLE BALL | 1 | |
| 19 | 17342524 | C'SUNK SCREW C'SUNK SCREW | 4 | |
| 20 | 16507814 | WASHER WASHER | 1 | |
| 21 | 16997611 | THREADED PLUG THREADED PLUG | 1 | |
| 22 | 504133903 | THREADED UNION THREADED UNION | 1 | |
| 23 | 8043767 | PIPE SOCKET PIPE SOCKET | 1 | |
| 24 | 504112433 | REDUCTION VALVE REDUCTION VALVE | 1 | |
| 25 | 16504015 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 26 | 16507115 | NUT NUT | 1 |
