CURSOR 13/C13ENTM77.10/ENGINE PRE-LUBRIC./EXTR. OIL PUMP

ENGINE PRE-LUBRIC./EXTR. OIL PUMP

C13ENTM77.10 — CURSOR 13

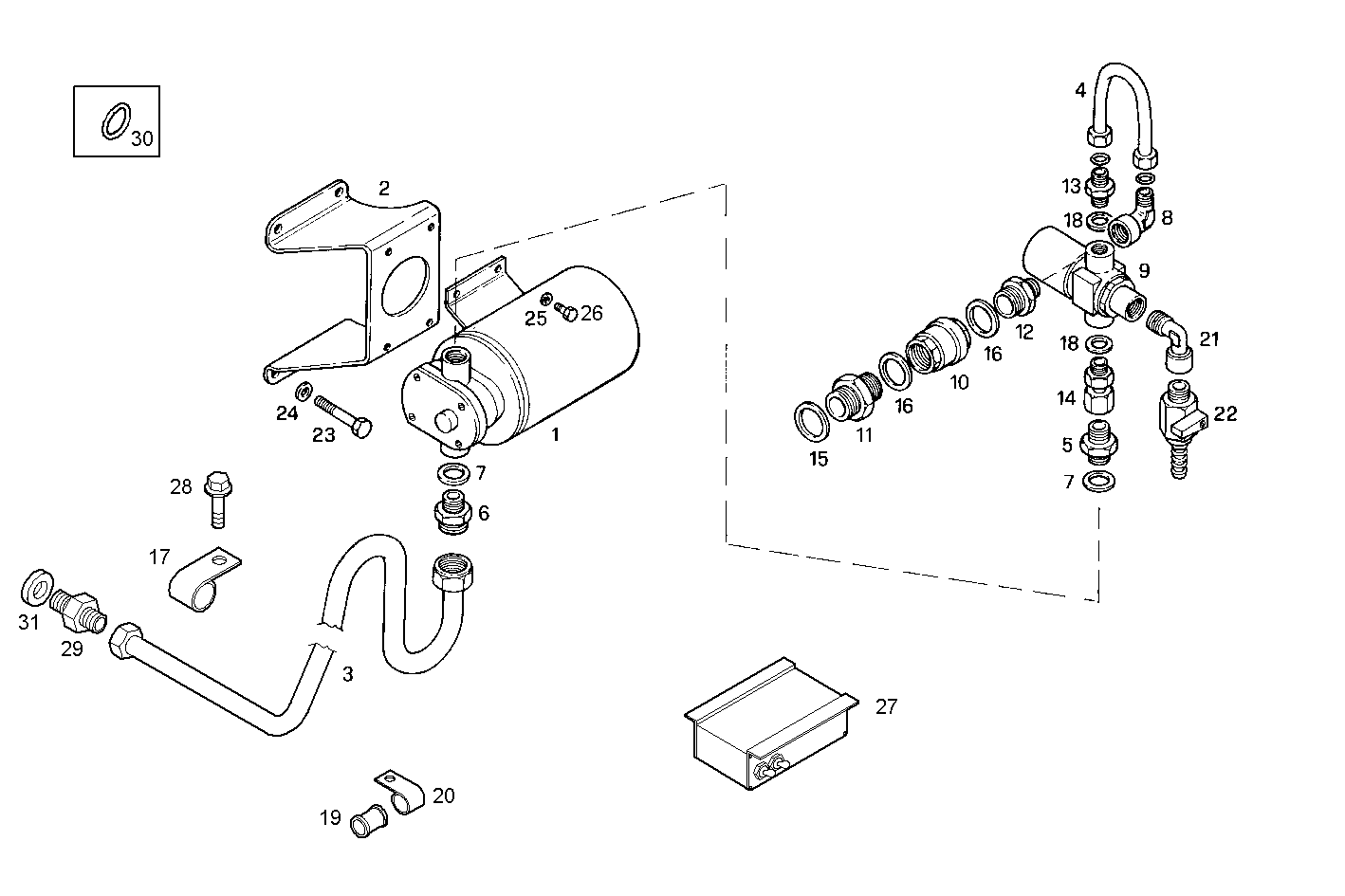

Parts List

#	Part No	Name / Description	Qty
1	8032366	OIL DRAIN ELECTRIC PUMP OIL DRAIN ELECTRIC PUMP	1
2	8030497	RETAINER RETAINER	1
3	8043024	OIL LINE OIL LINE	1
4	8031860	OIL LINE OIL LINE	1
5	8031881	PIPE SOCKET PIPE SOCKET	1
6	8011422	PIPE SOCKET PIPE SOCKET	1
7	11271460	GASKET GASKET	2
8	16504011	PIPE SOCKET PIPE SOCKET	1
9	8031292	ELECTROVALVE ELECTROVALVE	1
10	8011241	VALVE VALVE	1
11	8031795	PIPE SOCKET PIPE SOCKET	1
12	8031796	PIPE SOCKET PIPE SOCKET	1
13	16500214	THREADED UNION THREADED UNION	1
14	8031863	PIPE SOCKET PIPE SOCKET	1
15	98429281	SEAL GASKET SEAL GASKET	1
16	11270460	GASKET GASKET	2
17	17316790	CLIP CLIP	1
18	99489018	SEAL GASKET SEAL GASKET	2
19	4757122	RUBBER PAD RUBBER PAD	1
20	4763804	FASTENING BRACKET FASTENING BRACKET	1
21	8005303	PIPE SOCKET PIPE SOCKET	1
22	8113932	DRAIN COCK DRAIN COCK	1
23	16586924	HEXAGON BOLT HEXAGON BOLT	4
24	17089474	SPRING WASHER SPRING WASHER	4
25	17088474	WASHER WASHER	4
26	16603524	SCREW SCREW	4
27	8033537	SWITCH PANEL SWITCH PANEL	1
28	16605324	SCREW SCREW	1
29	8041011	PIPE SOCKET PIPE SOCKET	1
30	8024646	O-RING O-RING	6
31	99489022	SEAL GASKET SEAL GASKET	1
