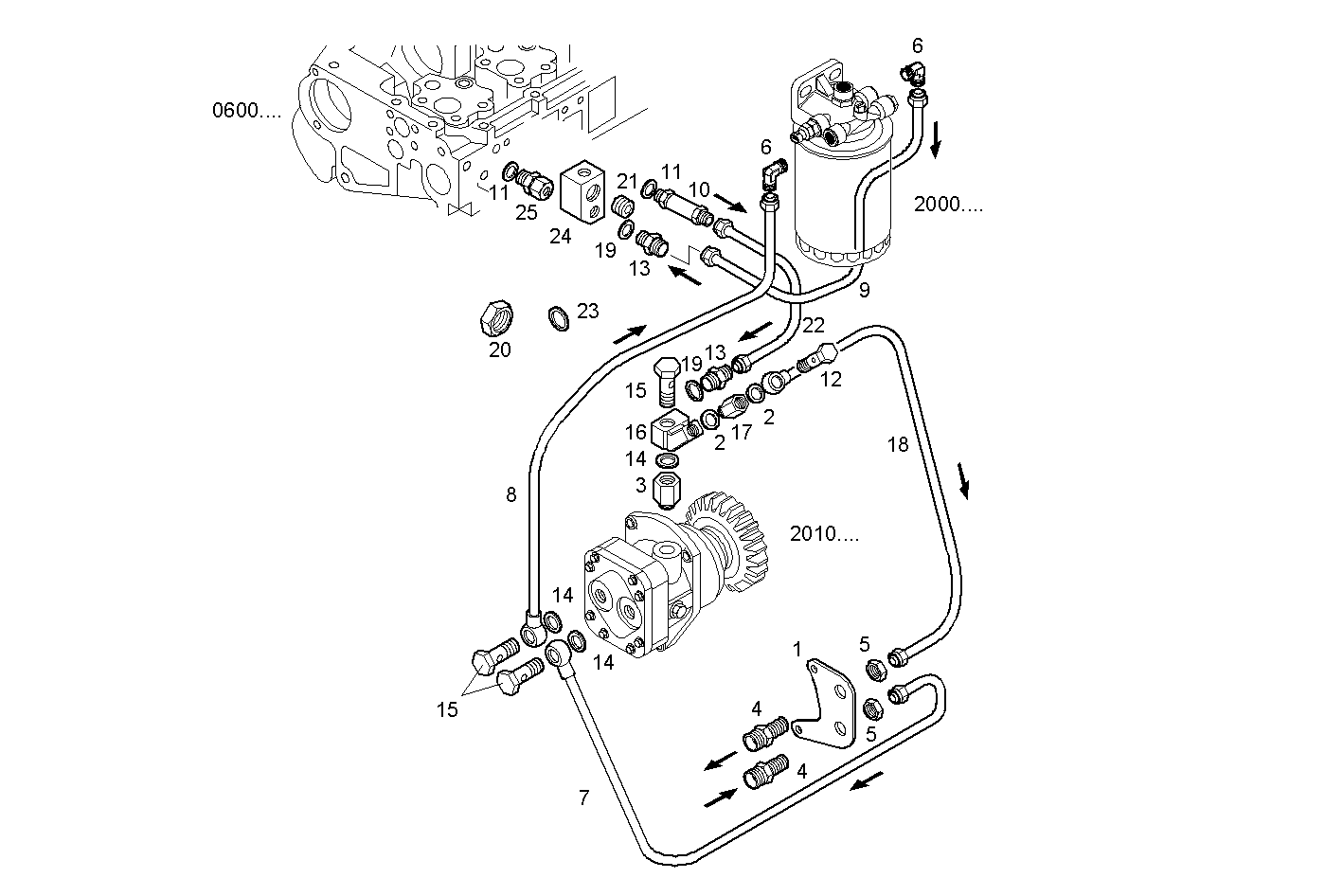

FUEL LINES
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030814 | RETAINER RETAINER | 1 | |
| 2 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 3 | 8041722 | THREADED UNION THREADED UNION | 1 | |
| 4 | 8011138 | PIPE SOCKET PIPE SOCKET | 2 | |
| 5 | 16508811 | NUT NUT | 2 | |
| 6 | 16504114 | ELBOW COUPLING ELBOW COUPLING | 2 | |
| 7 | 8031102 | FUEL LINE FUEL LINE | 1 | |
| 8 | 8040682 | FUEL LINE FUEL LINE | 1 | |
| 9 | 8040684 | FUEL LINE FUEL LINE | 1 | |
| 10 | 500310076 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 13 | 16500315 | THREADED UNION THREADED UNION | 2 | |
| 14 | 98474309 | WASHER WASHER | 4 | |
| 15 | 4864084 | BANJO BOLT BANJO BOLT | 3 | |
| 16 | 500342081 | PIPE SOCKET PIPE SOCKET | 1 | |
| 17 | 500328251 | VALVE VALVE | 1 | |
| 18 | 8040680 | FUEL LINE FUEL LINE | 1 | |
| 19 | 16507814 | WASHER WASHER | 2 | |
| 20 | 16507115 | NUT NUT | 1 | |
| 21 | 16997611 | THREADED PLUG THREADED PLUG | 1 | |
| 22 | 8041395 | FUEL LINE FUEL LINE | 1 | |
| 23 | 99489019 | WASHER WASHER | 5 | |
| 24 | 504133903 | THREADED UNION THREADED UNION | 1 | |
| 25 | 504136275 | THREADED UNION THREADED UNION | 1 |
