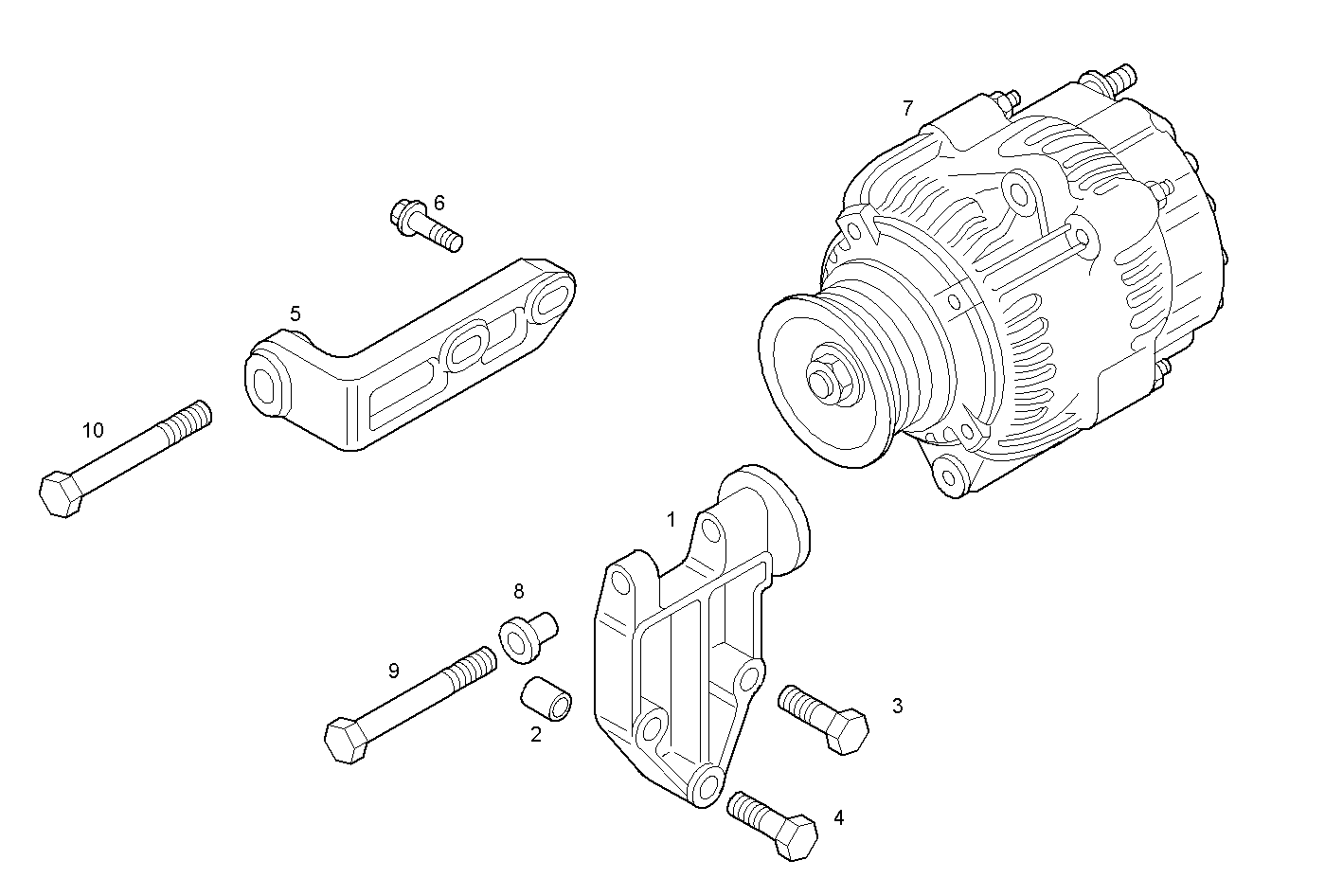

GENERATOR
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500346543 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 98405462 | DOWEL PIN DOWEL PIN | 2 | |
| 3 | 16587824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16587425 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 99458521 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 504028095 | ALTERNATOR ALTERNATOR | 1 | |
| 8 | 99484032 | SPACER BUSH SPACER BUSH | 1 | |
| 9 | 99474161 | SCREW SCREW | 1 | |
| 10 | 16586625 | HEXAGON BOLT HEXAGON BOLT | 1 |
