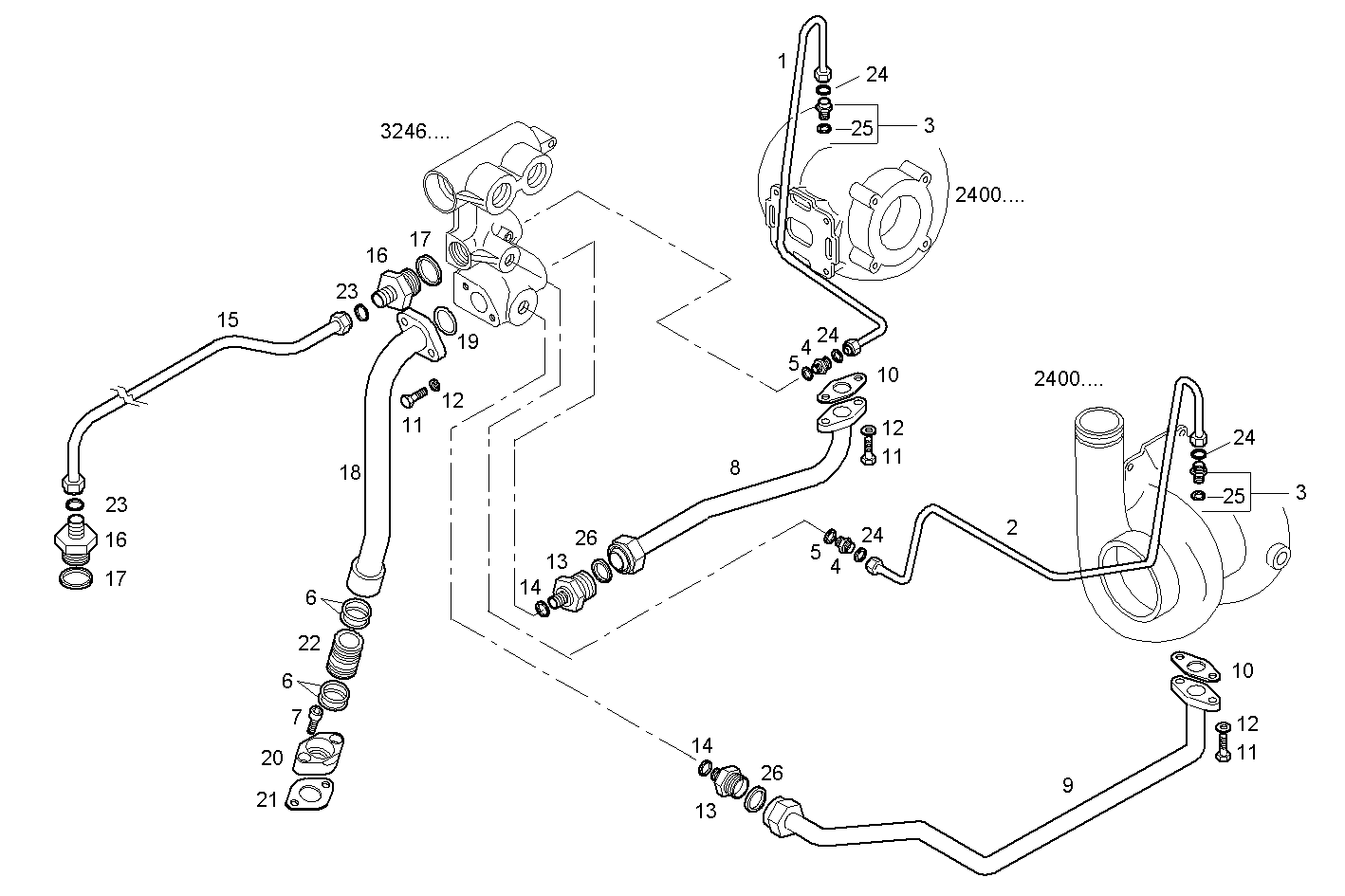

LUBE OIL LINES
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040892 | OIL LINE OIL LINE | 1 | |
| 2 | 8040895 | OIL LINE OIL LINE | 1 | |
| 3 | 8032268 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 16500215 | THREADED UNION THREADED UNION | 2 | |
| 5 | 99489018 | SEAL GASKET SEAL GASKET | 2 | |
| 6 | 17279181 | O-RING O-RING | 4 | |
| 7 | 16690624 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 8 | 8040822 | OIL LINE OIL LINE | 1 | |
| 9 | 8040844 | OIL LINE OIL LINE | 1 | |
| 10 | 98412509 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 11 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 13 | 16500315 | THREADED UNION THREADED UNION | 2 | |
| 14 | 99489019 | WASHER WASHER | 2 | |
| 15 | 8041967 | OIL LINE OIL LINE | 1 | |
| 16 | 8031297 | THREADED UNION THREADED UNION | 2 | |
| 17 | 99434480 | SEAL GASKET SEAL GASKET | 2 | |
| 18 | 8041047 | OIL LINE OIL LINE | 1 | |
| 19 | 98465110 | O-RING O-RING | 1 | |
| 20 | 8041027 | FLANGE FLANGE | 1 | |
| 21 | 4863361 | GASKET GASKET | 1 | |
| 22 | 8041029 | ADAPTER ADAPTER | 1 | |
| 23 | 16507614 | WASHER WASHER | 2 | |
| 24 | 16507514 | WASHER WASHER | 4 | |
| 25 | 4895610 | O-RING O-RING | 2 | |
| 26 | 16582111 | WASHER WASHER | 2 |
