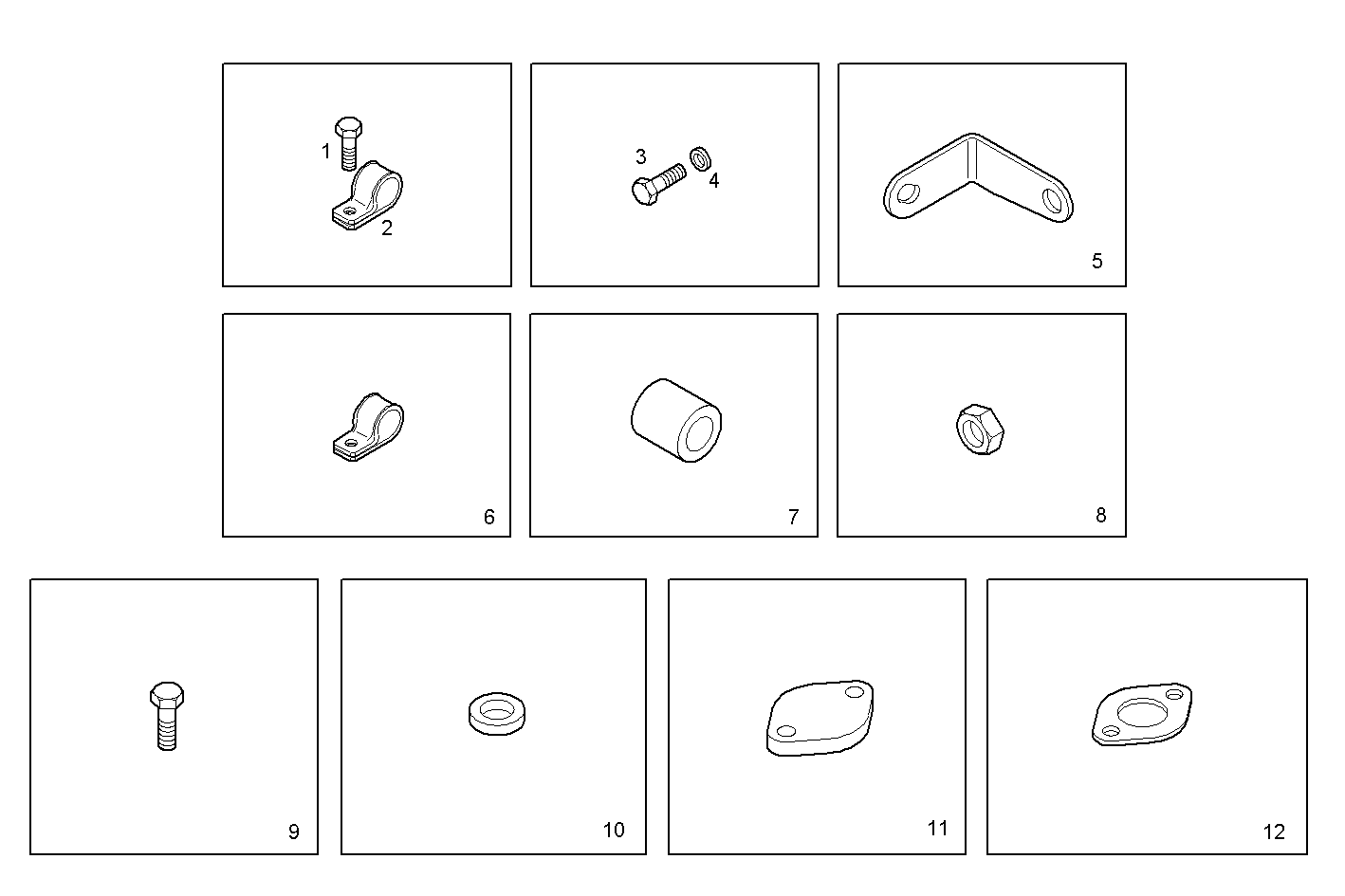

LUBE OIL LINES
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16605424 | SCREW SCREW | 3 | |
| 2 | 17316590 | PIPE CLIP PIPE CLIP | 1 | |
| 3 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 8042381 | RETAINER RETAINER | 1 | |
| 6 | 17316490 | CLIP CLIP | 2 | |
| 7 | 17816214 | SPACER SPACER | 1 | |
| 8 | 17037921 | NUT NUT | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 4798805 | COVER COVER | 1 | |
| 12 | 98482697 | GASKET GASKET | 1 |
