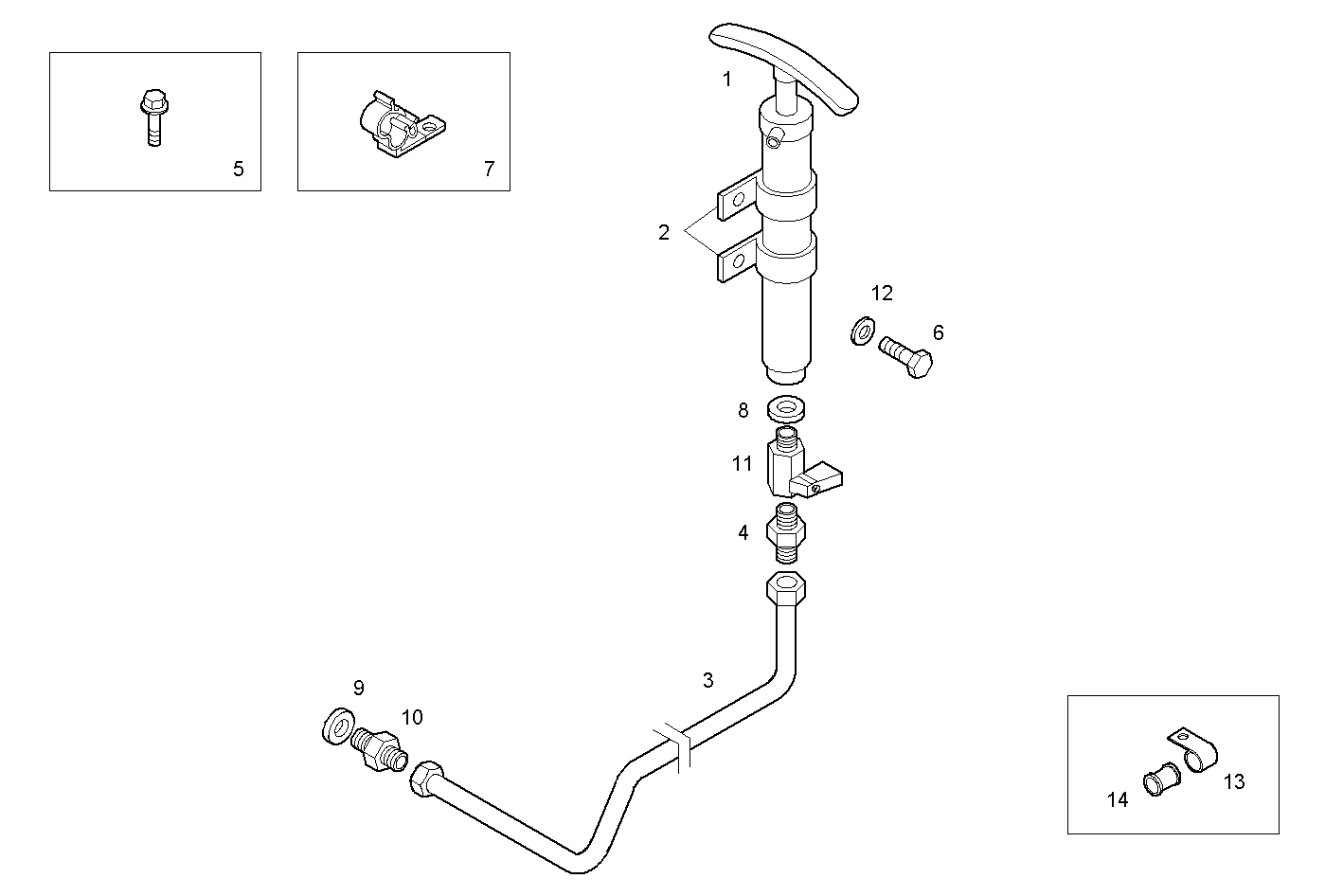

OIL OUTLET PUMP
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 2 | 4928851 | CLIP CLIP | 2 | |
| 3 | 8040993 | OIL LINE OIL LINE | 1 | |
| 4 | 8011422 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 16603524 | SCREW SCREW | 1 | |
| 6 | 16605424 | SCREW SCREW | 2 | |
| 7 | 99453771 | RETAINER RETAINER | 1 | |
| 8 | 99489019 | WASHER WASHER | 1 | |
| 9 | 99489022 | SEAL GASKET SEAL GASKET | 2 | |
| 10 | 8041011 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 8040027 | RETAINER COCK RETAINER COCK | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 4763804 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 14 | 4757122 | RUBBER PAD RUBBER PAD | 1 |
