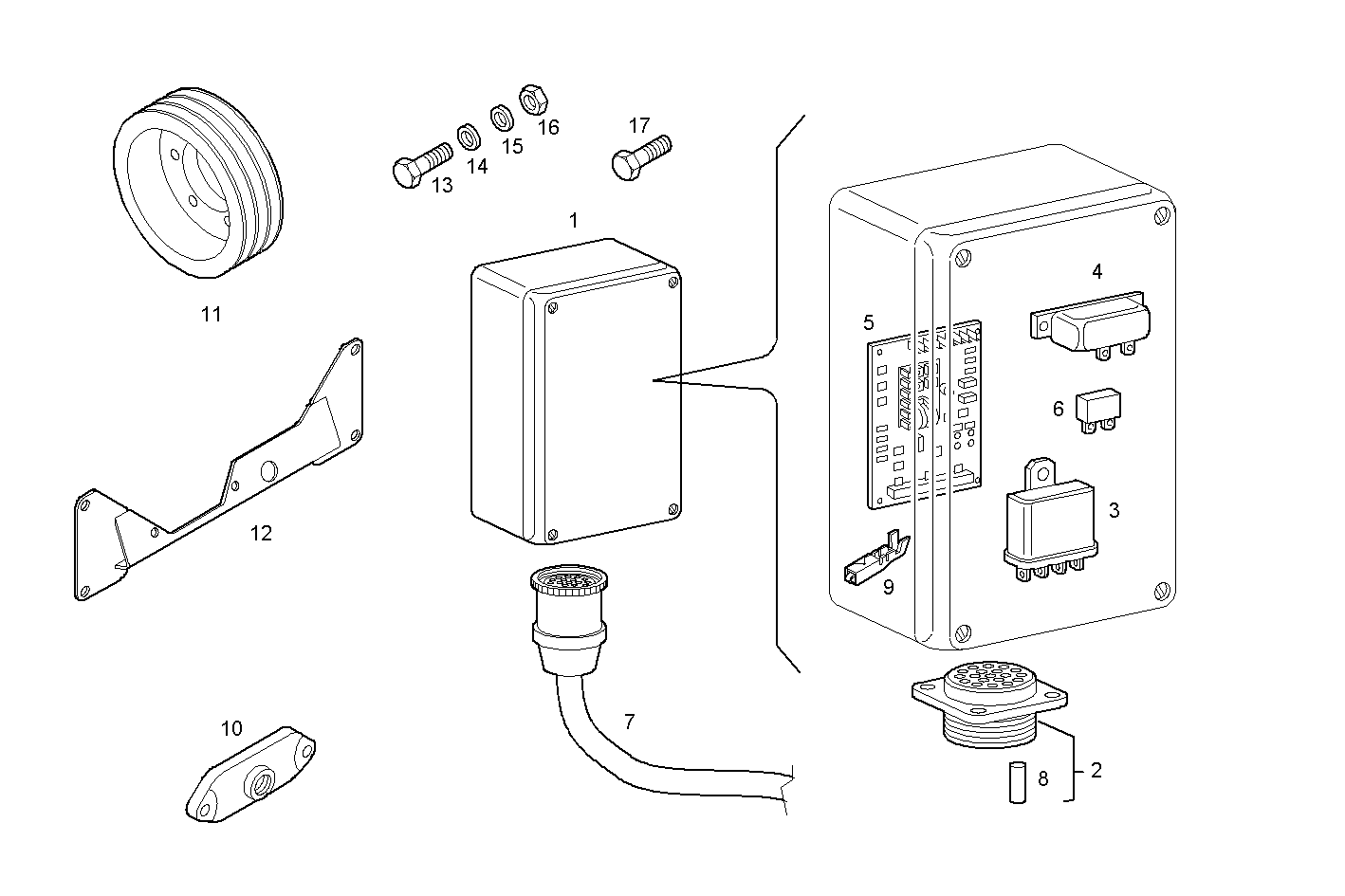

OVERSPEED DEVICE 24V AT MAX RPM
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042435 | ENGINE STOP ENGINE STOP | 1 | |
| 2 | 8113070 | CONNECTION CONNECTION | 1 | |
| 3 | 8109519 | RELAY RELAY | 2 | |
| 4 | 8108575 | RELAY RELAY | 1 | |
| 5 | 8024338 | ELECTRONIC CARD ELECTRONIC CARD | 1 | |
| 6 | 18095490 | FUSE FUSE | 1 | |
| 7 | 8040989 | WIRE/CABLE WIRE/CABLE | 1 | |
| 8 | 8113089 | CONNECTION CONNECTION | 6 | |
| 9 | 99433710 | TERMINAL TERMINAL | 2 | |
| 10 | 8033812 | PLATE PLATE | 1 | |
| 11 | 8108479 | PULLEY PULLEY | 1 | |
| 12 | 8018637 | SUPPORT SUPPORT | 1 | |
| 13 | 16603734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 17798174 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 17094724 | WASHER WASHER | 4 | |
| 16 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 17 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 2 |
