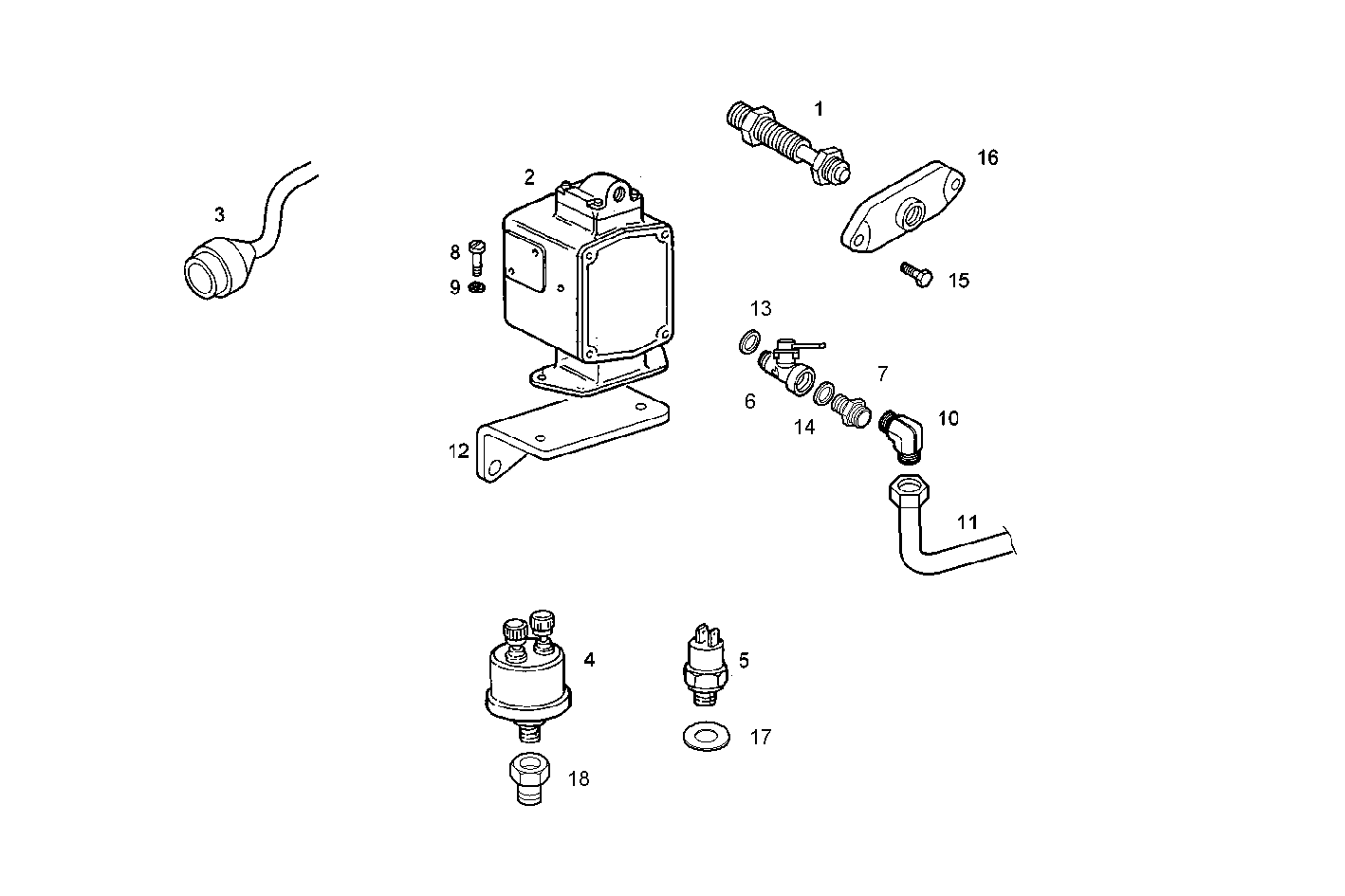

SENDERS
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018673 | PICK-UP PICK-UP | 1 | |
| 2 | 8110741 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 8034358 | EXTENSION EXTENSION | 1 | |
| 4 | 8100417 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 8037368 | TRANSMITTER TRANSMITTER | 1 | |
| 6 | 8037665 | RETAINER COCK RETAINER COCK | 1 | |
| 7 | 8033816 | THREADED UNION THREADED UNION | 1 | |
| 8 | 16603525 | SCREW SCREW | 2 | |
| 9 | 17088474 | WASHER WASHER | 2 | |
| 10 | 8033819 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 11 | 8036827 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 12 | 8033476 | RETAINER RETAINER | 1 | |
| 13 | 99489016 | SEAL GASKET SEAL GASKET | 1 | |
| 14 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 8033812 | PLATE PLATE | 1 | |
| 17 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 18 | 8032383 | PIPE SOCKET PIPE SOCKET | 1 |
