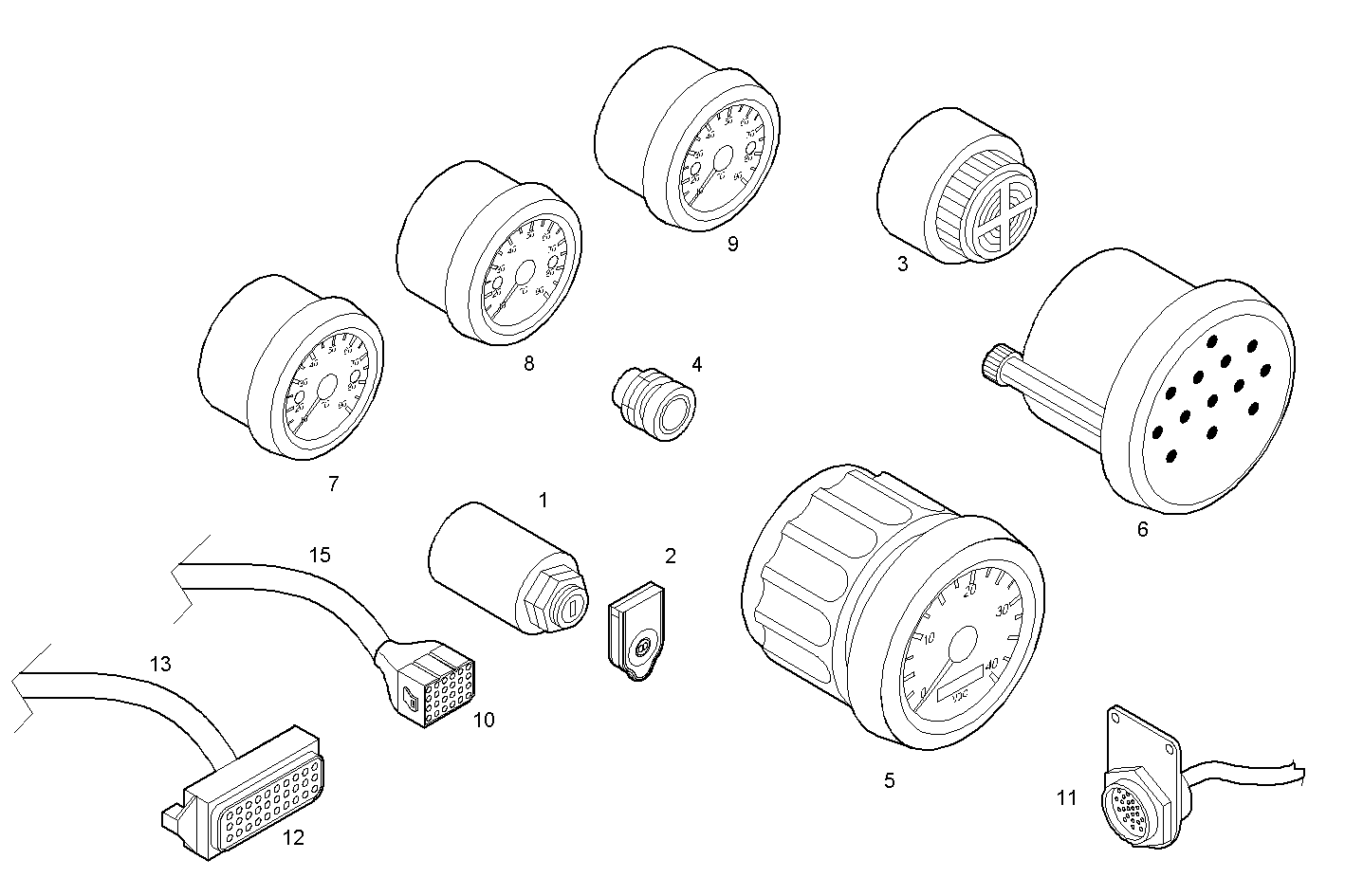

SIMPLE INSTRUMENTS KIT - 24V - VDO
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8035169 | SWITCH SWITCH | 1 | |
| 2 | 8035172 | COVER COVER | 1 | |
| 3 | 8035166 | ACOUSTIC HORN ACOUSTIC HORN | 1 | |
| 4 | 8036498 | SWITCH SWITCH | 1 | |
| 5 | 8030617 | REVOLUTION COUNTER REVOLUTION COUNTER | 1 | |
| 6 | 8034892 | WARNING LIGHT WARNING LIGHT | 1 | |
| 7 | 8030614 | THERMOMETER THERMOMETER | 1 | |
| 8 | 8030615 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 9 | 8030616 | VOLTMETER VOLTMETER | 1 | |
| 10 | 8036143 | CONNECTION CONNECTION | 1 | |
| 11 | 8041699 | ENGINE-BRIDGE CONN. ENGINE-BRIDGE CONN. | 1 | |
| 12 | 8042637 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 13 | 8041994 | ENGINE-BRIDGE CONN. ENGINE-BRIDGE CONN. | 1 | |
| 14 | 8045531 | SWITCHGEAR SWITCHGEAR | 1 | |
| 15 | 8043749 | ENGINE-BRIDGE CONN. ENGINE-BRIDGE CONN. | 1 |
