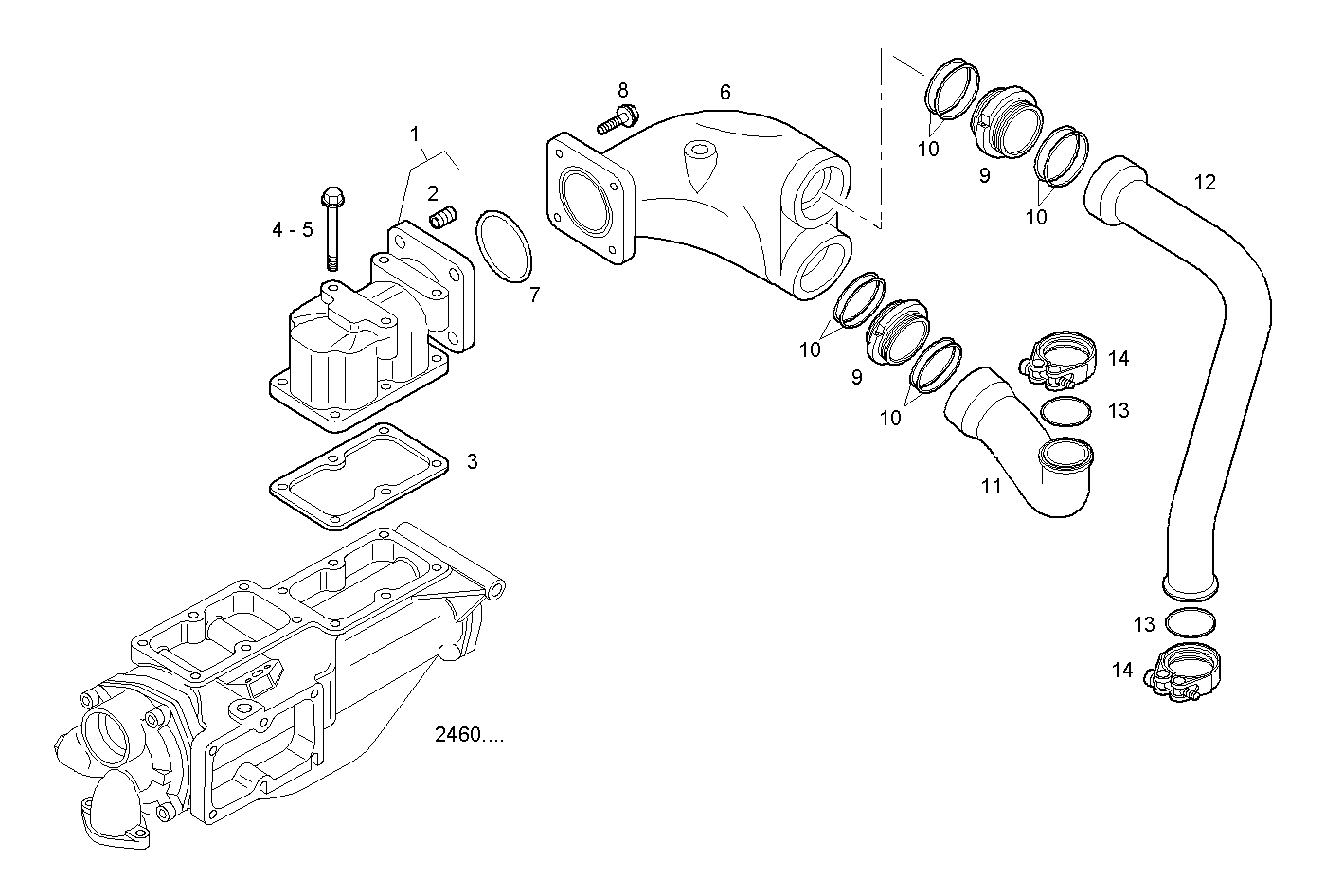

SUPERCHARGING LINES
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037749 | AIR HOOD AIR HOOD | 1 | |
| 2 | 17873371 | THREADED INSERT THREADED INSERT | 4 | |
| 3 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 16598625 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 16486524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 8038802 | DELIVERY LINE DELIVERY LINE | 1 | |
| 7 | 17291481 | O-RING O-RING | 1 | |
| 8 | 16587425 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 8032183 | ADAPTER ADAPTER | 2 | |
| 10 | 17290581 | O-RING O-RING | 8 | |
| 11 | 8038901 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 12 | 8039140 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 13 | 17284781 | O-RING O-RING | 2 | |
| 14 | 4800661 | CLIP CLIP | 2 |
