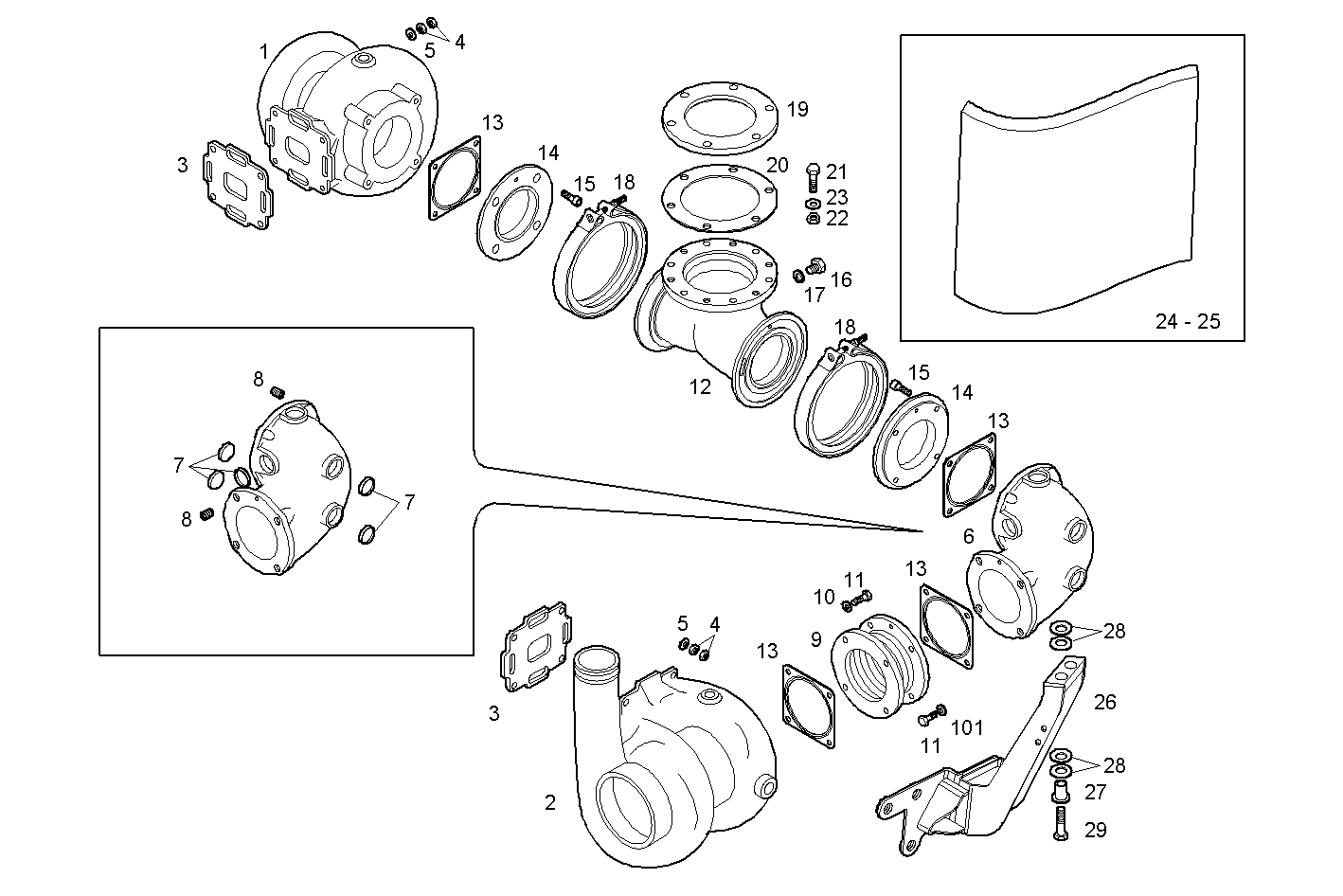

TURBOCHARGER
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504109151 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 504126628 | TURBOCHARGER TURBOCHARGER | 1 | |
| 3 | 8027510 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 17038131 | HEXAGON NUT HEXAGON NUT | 16 | |
| 5 | 17090274 | WASHER WASHER | 8 | |
| 6 | 8040170 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 7 | 16990870 | LOCK PLUG LOCK PLUG | 6 | |
| 8 | 17873271 | THREADED INSERT THREADED INSERT | 8 | |
| 9 | 8039993 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 10 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 16 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 16 | |
| 12 | 8041452 | LINE LINE | 1 | |
| 13 | 8040168 | FLAT ENGINE GKT FLAT ENGINE GKT | 4 | |
| 14 | 8040417 | FLANGE FLANGE | 2 | |
| 15 | 16690624 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 16 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 17 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 18 | 8040436 | CLIP CLIP | 2 | |
| 19 | 8022504 | FLANGE FLANGE | 1 | |
| 20 | 8010072 | GASKET GASKET | 1 | |
| 21 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 22 | 17038131 | HEXAGON NUT HEXAGON NUT | 6 | |
| 23 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 24 | 8041811 | PROTECTION PROTECTION | 1 | |
| 25 | 8041812 | PROTECTION PROTECTION | 1 | |
| 26 | 8041825 | RETAINER RETAINER | 1 | |
| 27 | 8041809 | BUSH BUSH | 2 | |
| 28 | 8041806 | SPRING SPRING | 8 | |
| 29 | 16587525 | HEXAGON BOLT HEXAGON BOLT | 2 |
