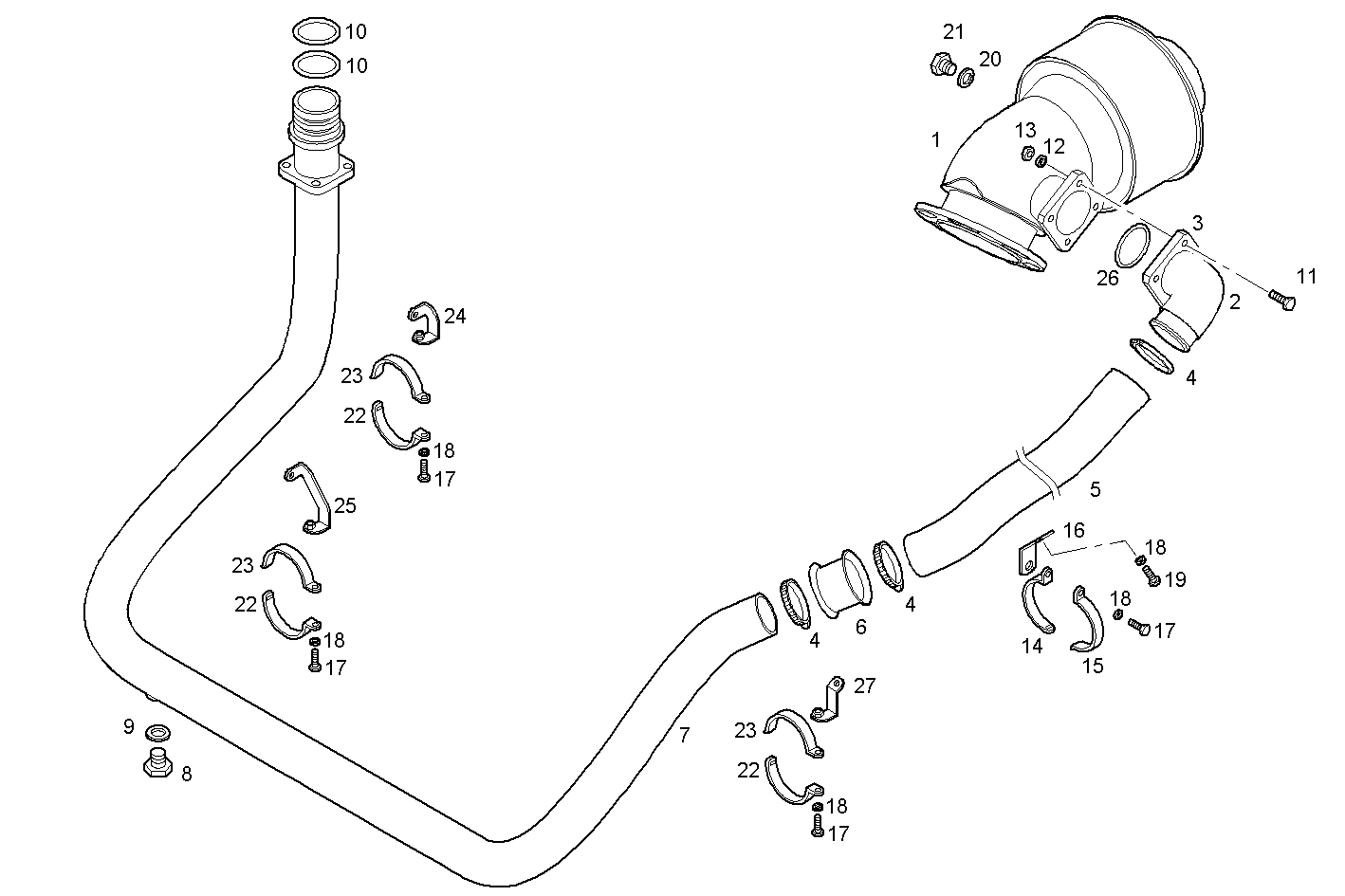

TURNING EXHAUST ELBOW
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041286 | MARINE EXHAUST PIPE MARINE EXHAUST PIPE | 1 | |
| 2 | 8111431 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8111433 | FLANGE FLANGE | 1 | |
| 4 | 17765093 | CLIP CLIP | 4 | |
| 5 | 8041337 | HOSE HOSE | 1 | |
| 6 | 8042966 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 8042520 | WATER PIPE WATER PIPE | 1 | |
| 8 | 16992140 | PLUG PLUG | 1 | |
| 9 | 99489016 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 17290481 | O-RING O-RING | 2 | |
| 11 | 16587325 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 17038131 | HEXAGON NUT HEXAGON NUT | 4 | |
| 14 | 8013655 | CLAMP CLAMP | 1 | |
| 15 | 8013656 | CLAMP CLAMP | 1 | |
| 16 | 8042299 | RETAINER RETAINER | 1 | |
| 17 | 16605424 | SCREW SCREW | 4 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 19 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 98474306 | WASHER WASHER | 1 | |
| 21 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 22 | 8017811 | CLAMP CLAMP | 3 | |
| 23 | 8017810 | CLAMP CLAMP | 3 | |
| 24 | 8042153 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 25 | 8042249 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 26 | 17290281 | O-RING O-RING | 1 | |
| 27 | 8041570 | FASTENING BRACKET FASTENING BRACKET | 1 |
