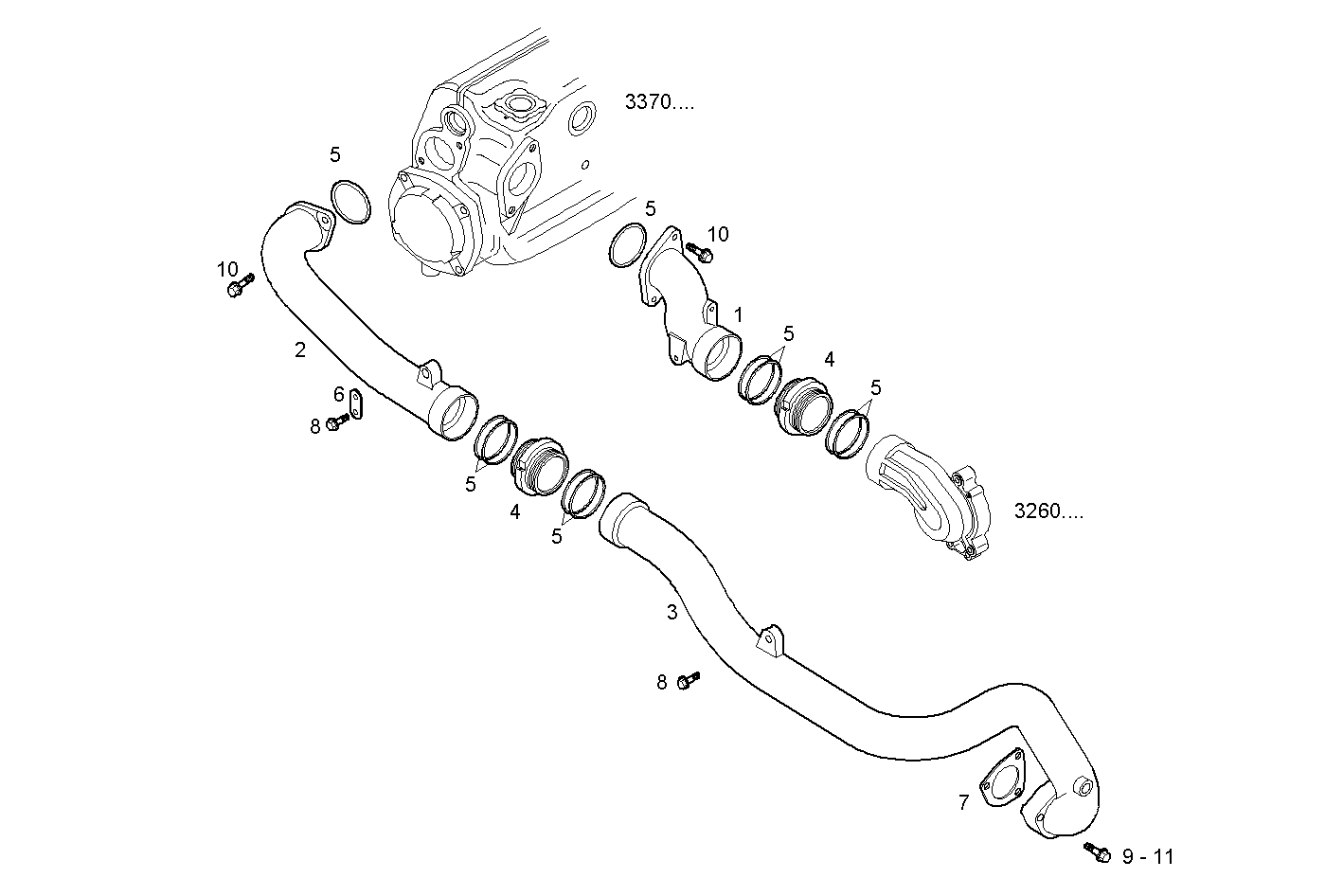

WATER LINES
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037636 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8037637 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8035096 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8032183 | ADAPTER ADAPTER | 2 | |
| 5 | 17290581 | O-RING O-RING | 10 | |
| 6 | 8032736 | CONNECTING PLATE CONNECTING PLATE | 1 | |
| 7 | 99466940 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 16592625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 16586725 | HEXAGON BOLT HEXAGON BOLT | 1 |
