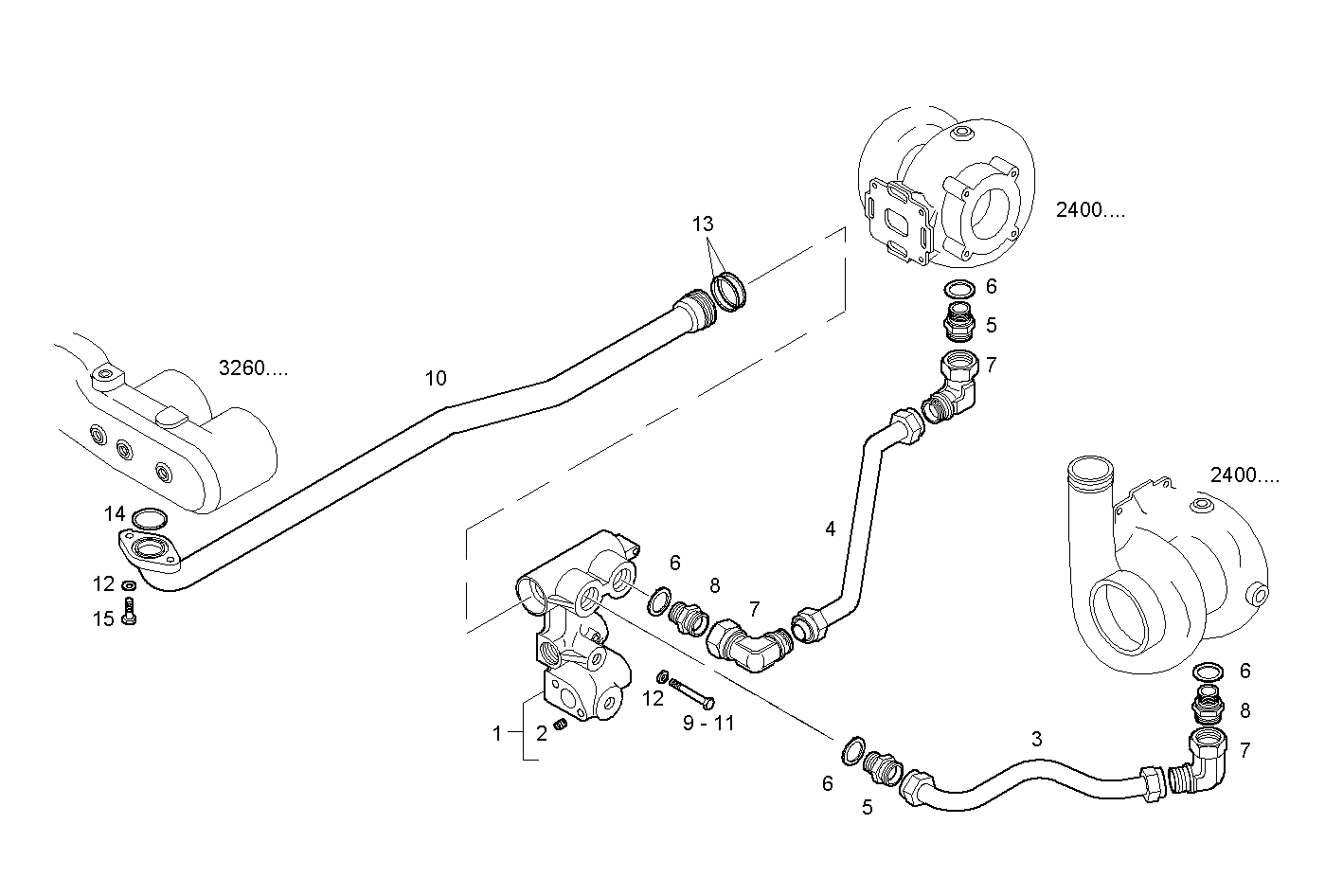

WATER LINES
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041704 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 2 | 17873271 | THREADED INSERT THREADED INSERT | 2 | |
| 3 | 8040871 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8040867 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8110943 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 99489024 | SEAL GASKET SEAL GASKET | 4 | |
| 7 | 16526514 | ELBOW COUPLING ELBOW COUPLING | 3 | |
| 8 | 41031577 | THREADED UNION THREADED UNION | 2 | |
| 9 | 16606824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 8040274 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8041974 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 13 | 17283381 | O-RING O-RING | 2 | |
| 14 | 17289481 | O-RING O-RING | 1 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 |
