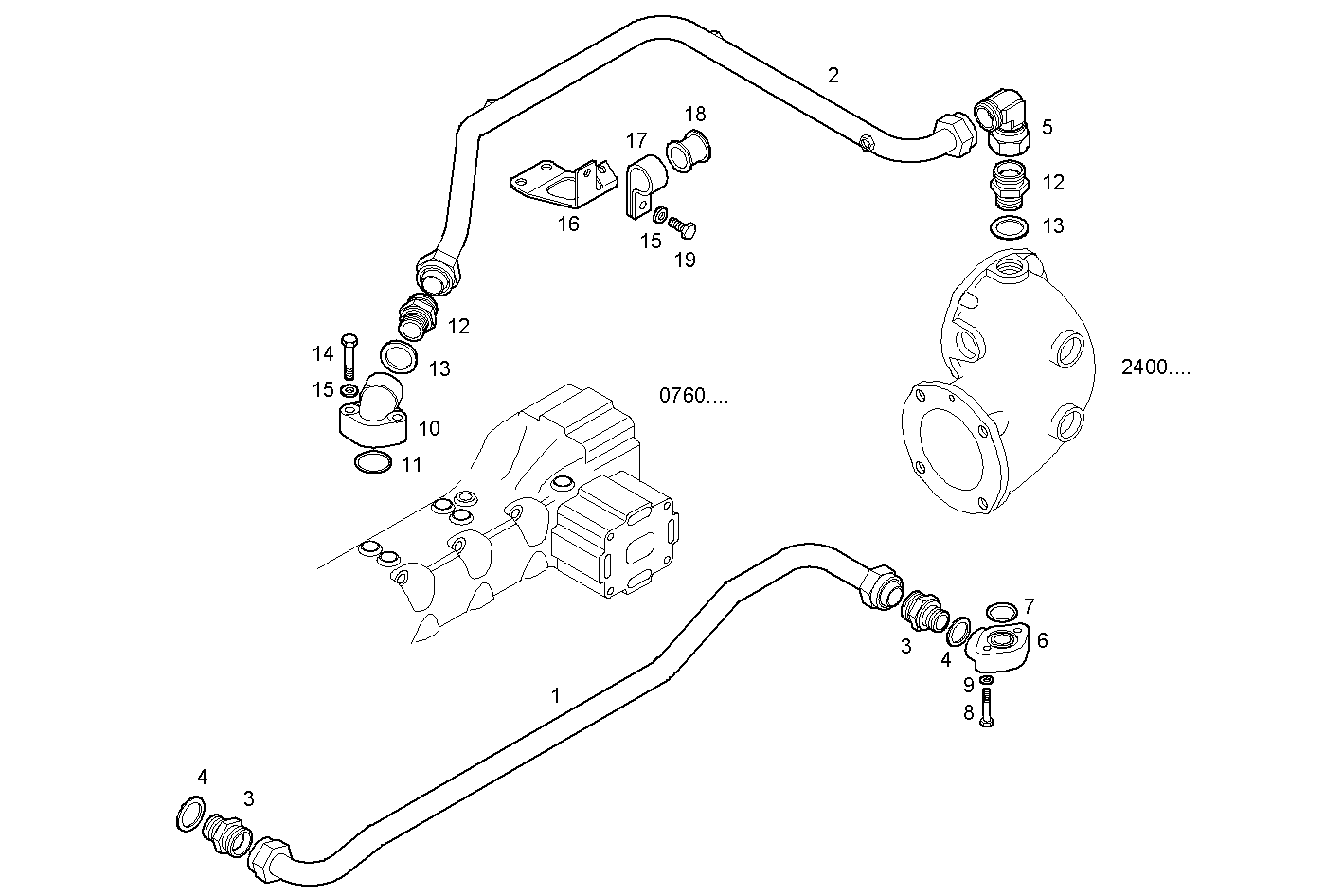

WATER LINES
C13ENTM77.10 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040899 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8040904 | WATER PIPE WATER PIPE | 1 | |
| 3 | 16500514 | THREADED UNION THREADED UNION | 2 | |
| 4 | 99489022 | SEAL GASKET SEAL GASKET | 2 | |
| 5 | 16526514 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 6 | 8031032 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 7 | 17282381 | O-RING O-RING | 1 | |
| 8 | 16604024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17088474 | WASHER WASHER | 2 | |
| 10 | 8039949 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 11 | 98465110 | O-RING O-RING | 1 | |
| 12 | 8110943 | PIPE SOCKET PIPE SOCKET | 2 | |
| 13 | 99489024 | SEAL GASKET SEAL GASKET | 2 | |
| 14 | 16605934 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 8042341 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 17 | 8033225 | CLIP CLIP | 1 | |
| 18 | 4747140 | RUBBER PAD RUBBER PAD | 1 | |
| 19 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 |
