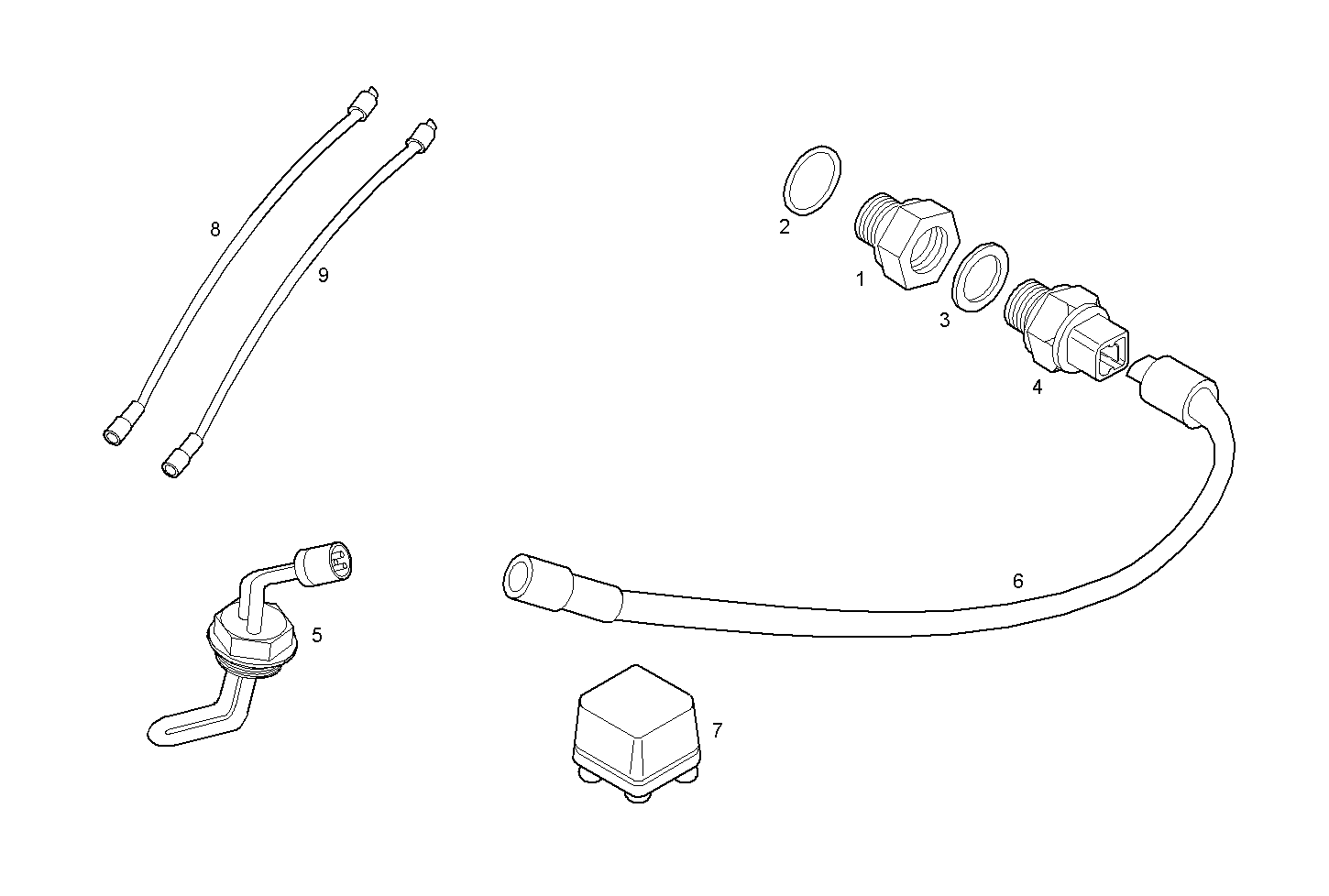

WATER PREHEATER DEVICE - 230V
CURSOR13TE1.A559 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 2 | 98474309 | WASHER WASHER | 1 | |
| 3 | 98474308 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 8038597 | THERMOSWITCH THERMOSWITCH | 1 | |
| 5 | 8038725 | HEATER HEATER | 1 | |
| 6 | 504084179 | WIRE/CABLE WIRE/CABLE | 1 | |
| 7 | 8038600 | RELAY RELAY | 1 | |
| 8 | 8038507 | WIRE/CABLE WIRE/CABLE | 1 | |
| 9 | 503111089 | WIRE/CABLE WIRE/CABLE | 1 |
