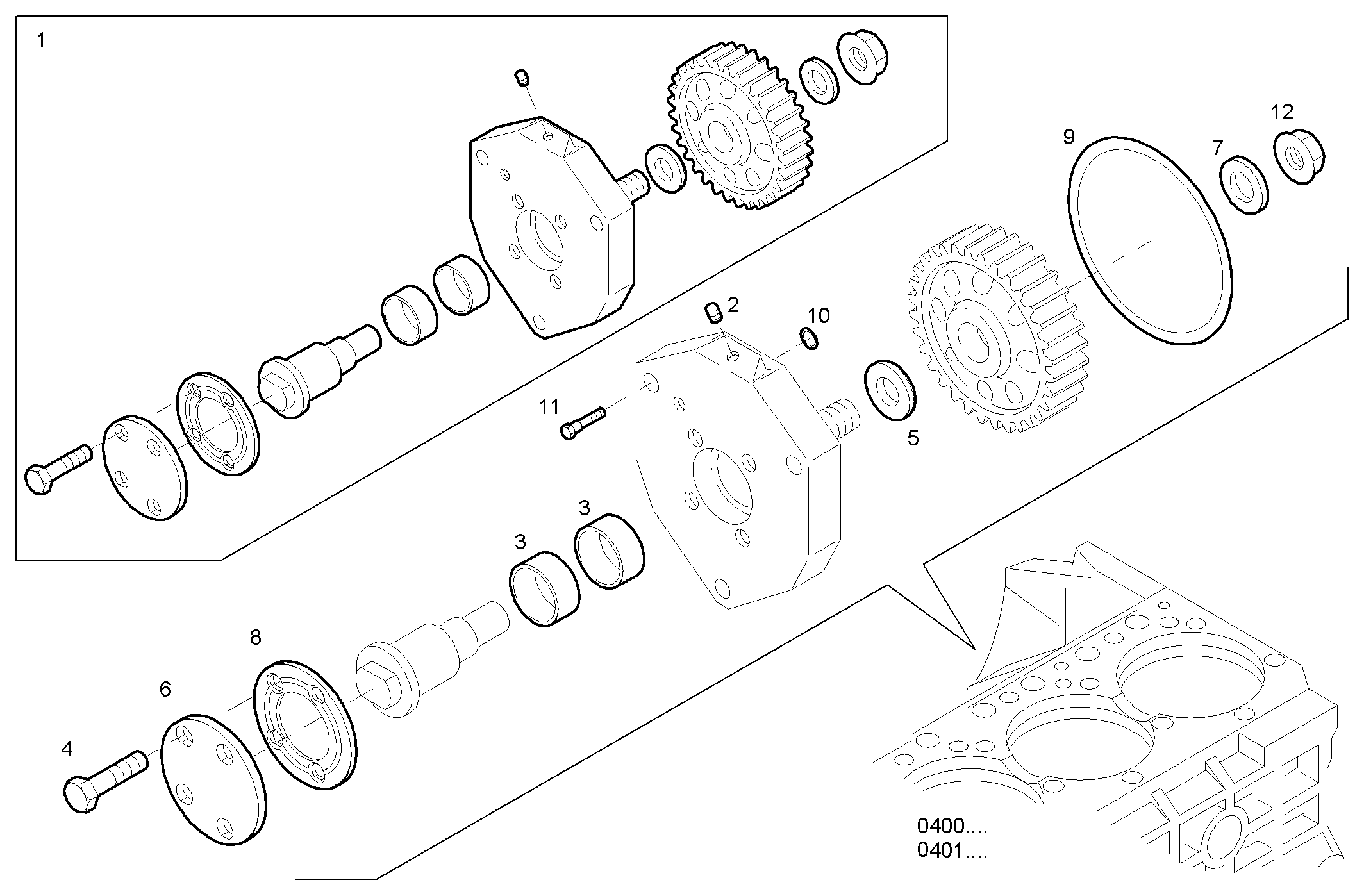

POWER TAKE OFF
CURSOR13TE2.A002 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500382578 | POWER TAKE OFF POWER TAKE OFF | 1 | |
| 2 | 504051236 | THREADED PLUG THREADED PLUG | 1 | |
| 3 | 4788087 | BUSH BUSH | 2 | |
| 4 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 500351319 | WASHER WASHER | 1 | |
| 6 | 500355019 | COVER COVER | 1 | |
| 7 | 500382574 | WASHER WASHER | 1 | |
| 8 | 500355018 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 17292281 | O-RING O-RING | 1 | |
| 10 | 17281381 | O-RING O-RING | 1 | |
| 11 | 16678135 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 17046231 | NUT NUT | 1 |
