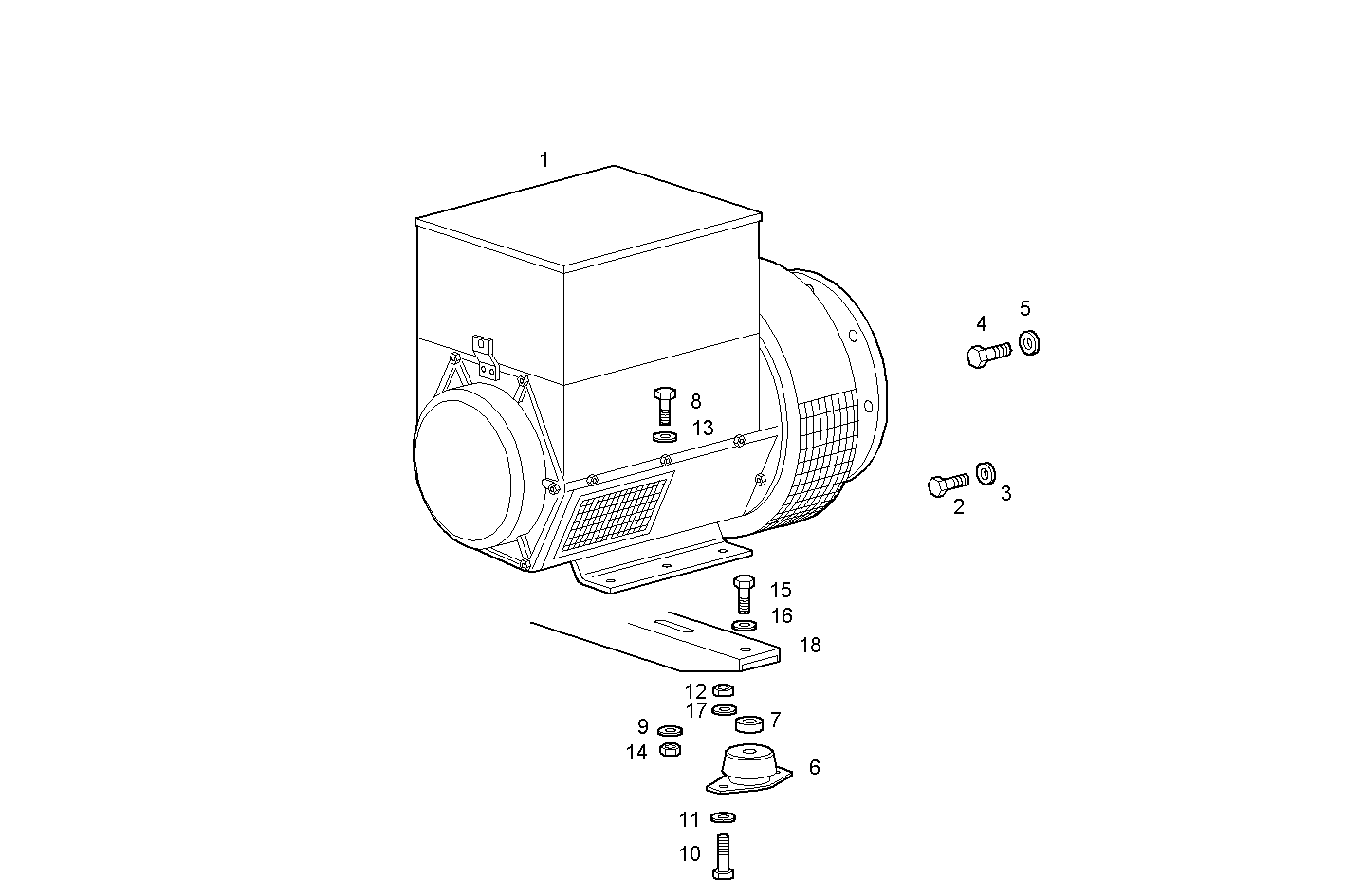

ELECTRIC MACHINE
GECURSOR300E.R990 — CURSOR 13
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 503112753 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 16608125 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 4 | 16609924 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 17091074 | WASHER WASHER | 8 | |
| 6 | 503112690 | RUBBER PAD RUBBER PAD | 2 | |
| 7 | 503112698 | SPACING BAR SPACING BAR | 2 | |
| 8 | 16619824 | SCREW SCREW | 2 | |
| 9 | 17096214 | WASHER WASHER | 2 | |
| 10 | 16612424 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 17091674 | WASHER WASHER | 4 | |
| 12 | 17038725 | NUT NUT | 4 | |
| 13 | 17093174 | WASHER WASHER | 2 | |
| 14 | 17039721 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 16615524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17092174 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 17095504 | WASHER WASHER | 4 | |
| 18 | 503112683 | TIE TIE | 1 |
