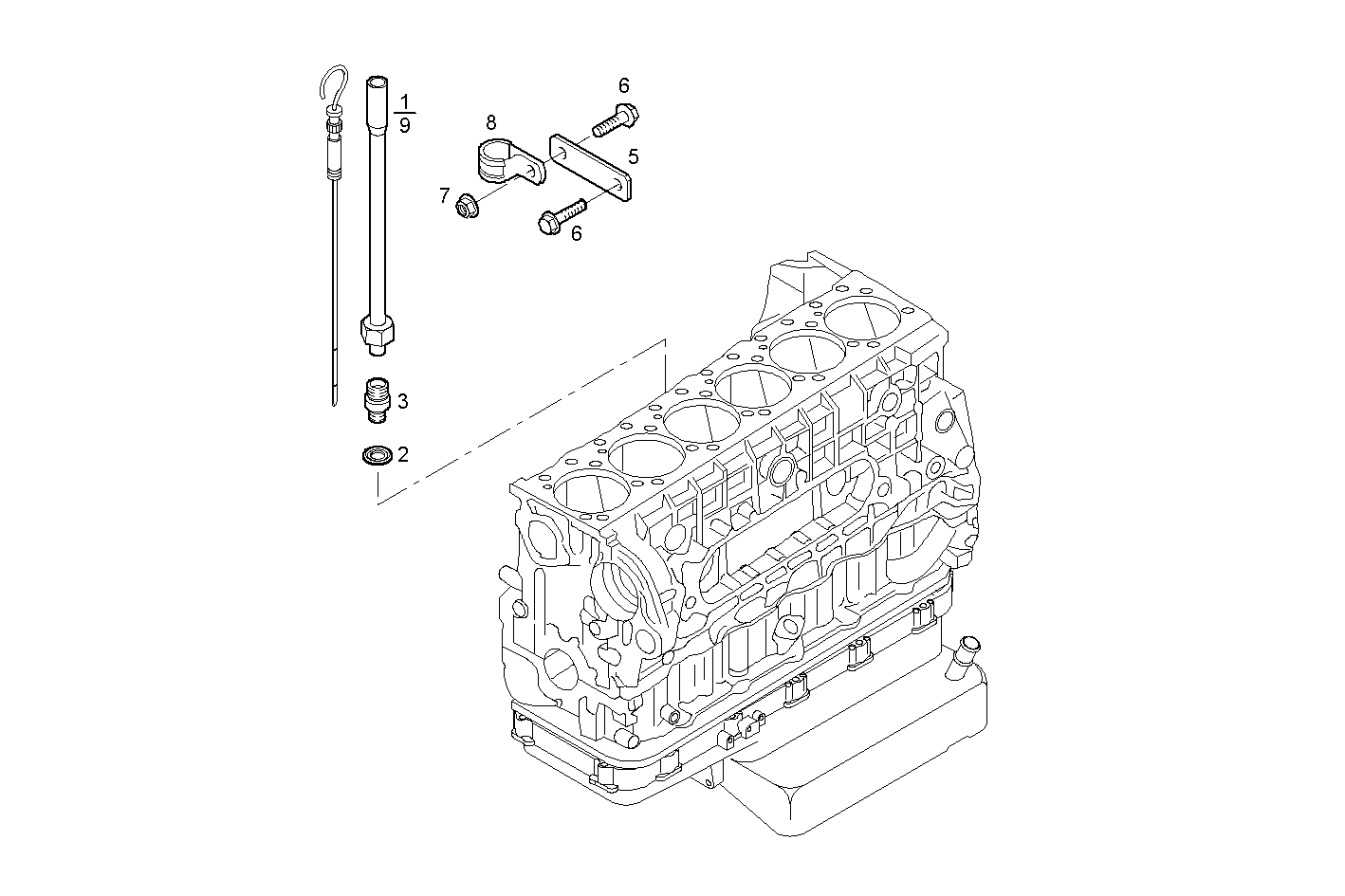

OIL DIPSTICK PIPE
F2BE0642A*A002 — CURSOR 8 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504045023 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 99489020 | SEAL GASKET SEAL GASKET | 1 | |
| 3 | 504023175 | THREADED UNION THREADED UNION | 1 | |
| 5 | 504012288 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17044725 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 17316699 | PIPE CLIP PIPE CLIP | 1 | |
| 9 | 504117964 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 |
