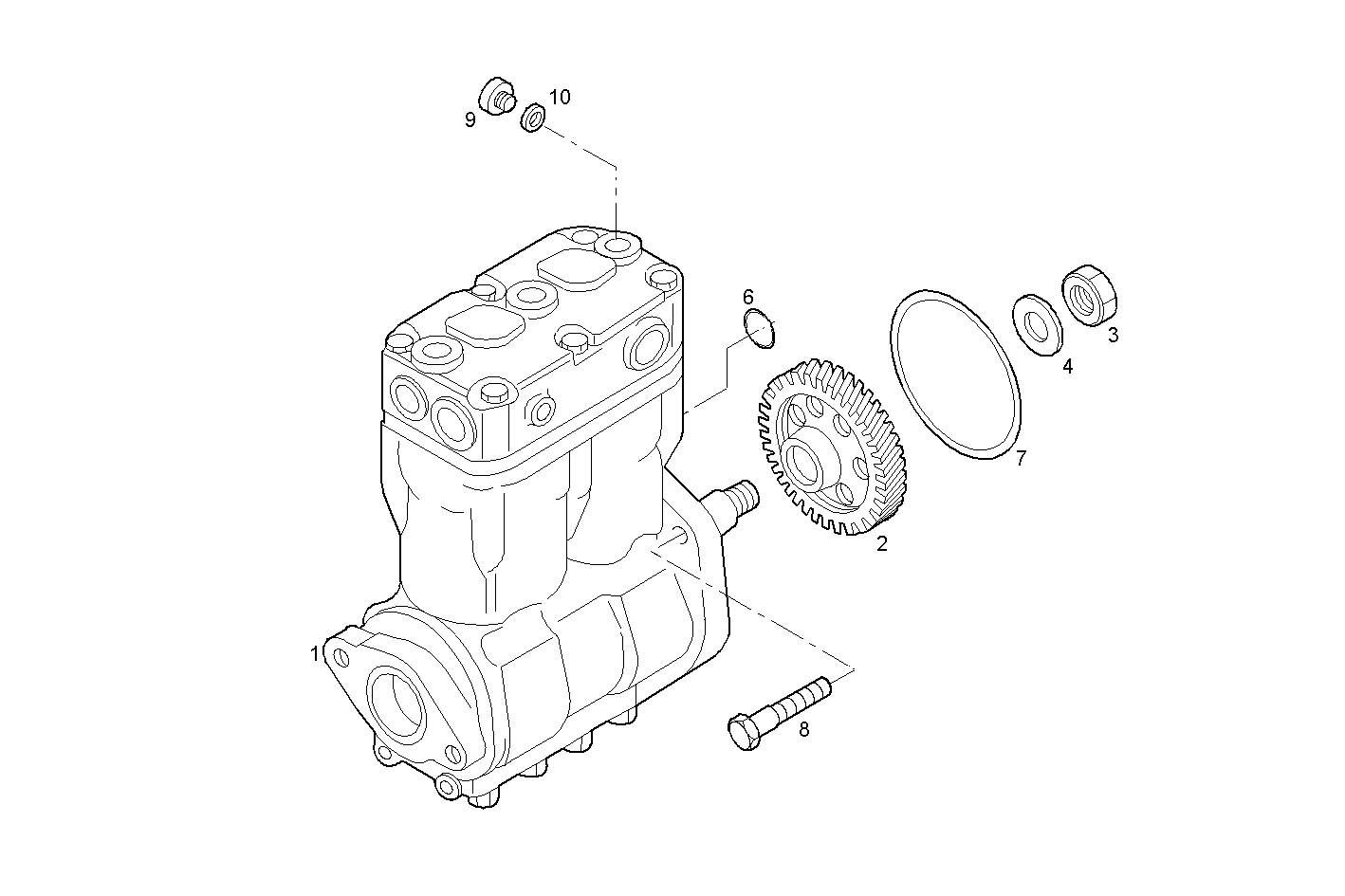

AIR COMPRESSOR
F2BE0642A*A003 — CURSOR 8 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 41211340 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 99435001 | GEAR GEAR | 1 | |
| 3 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 4 | 17095914 | WASHER WASHER | 1 | |
| 6 | 17281381 | O-RING O-RING | 1 | |
| 7 | 17292281 | O-RING O-RING | 1 | |
| 8 | 16693924 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 9 | 16993311 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 99489020 | SEAL GASKET SEAL GASKET | 1 |
