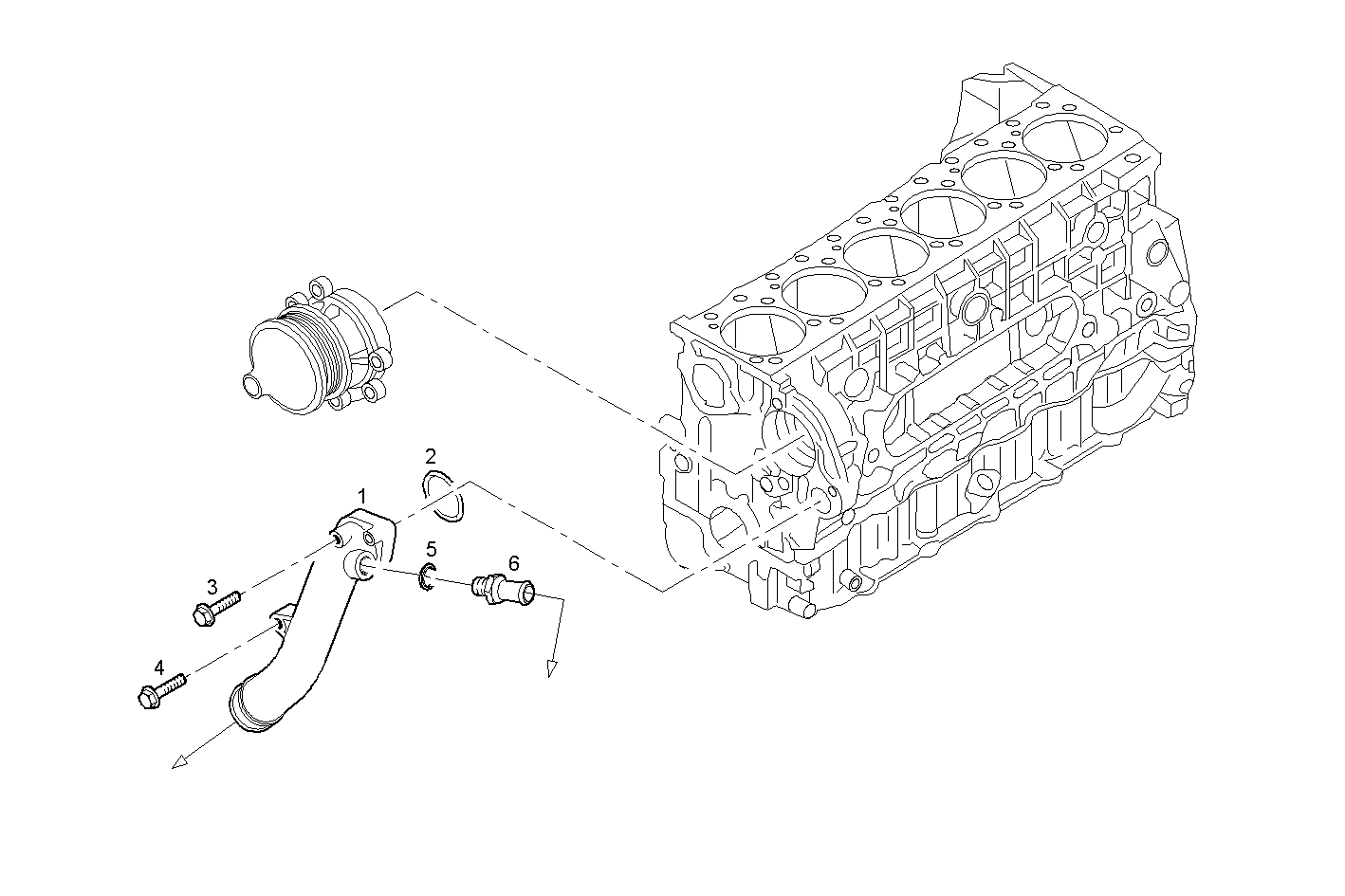

WATER PIPE
F2BE0642A*A003 — CURSOR 8 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500328245 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17290081 | O-RING O-RING | 1 | |
| 3 | 16586925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 99434480 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 504020128 | PIPE SOCKET PIPE SOCKET | 1 |
