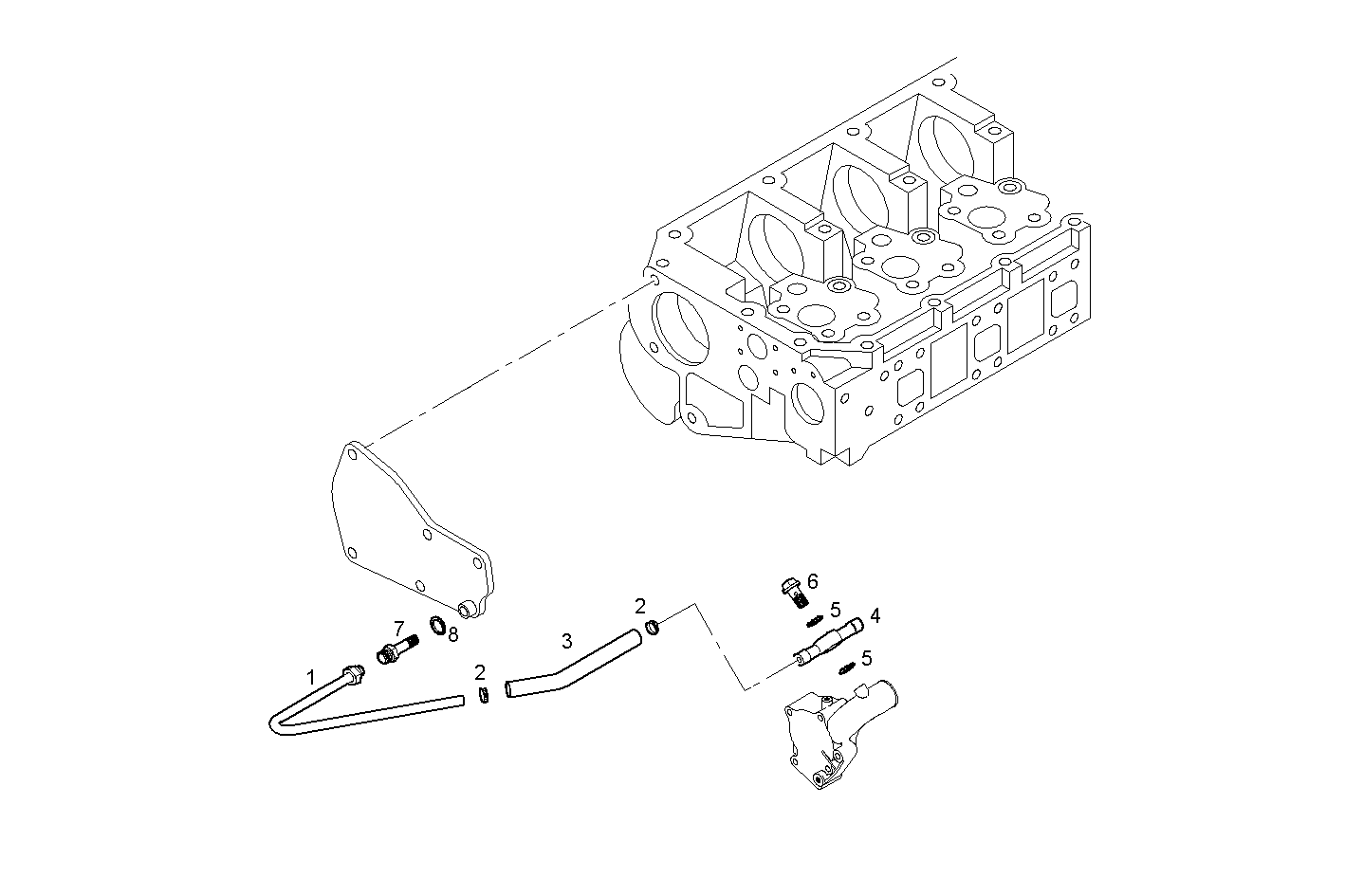

BLEEDER TUBING
F2BE0642B*A001 — CURSOR 8 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500380190 | PIPE PIPE | 1 | |
| 2 | 18087993 | CLIP CLIP | 2 | |
| 3 | 500378844 | WATER HOSE WATER HOSE | 1 | |
| 4 | 4627990 | BREATHER CONN. BREATHER CONN. | 1 | |
| 5 | 98474305 | WASHER WASHER | 2 | |
| 6 | 4864081 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 99454269 | THREADED UNION THREADED UNION | 1 | |
| 8 | 99489016 | SEAL GASKET SEAL GASKET | 1 |
