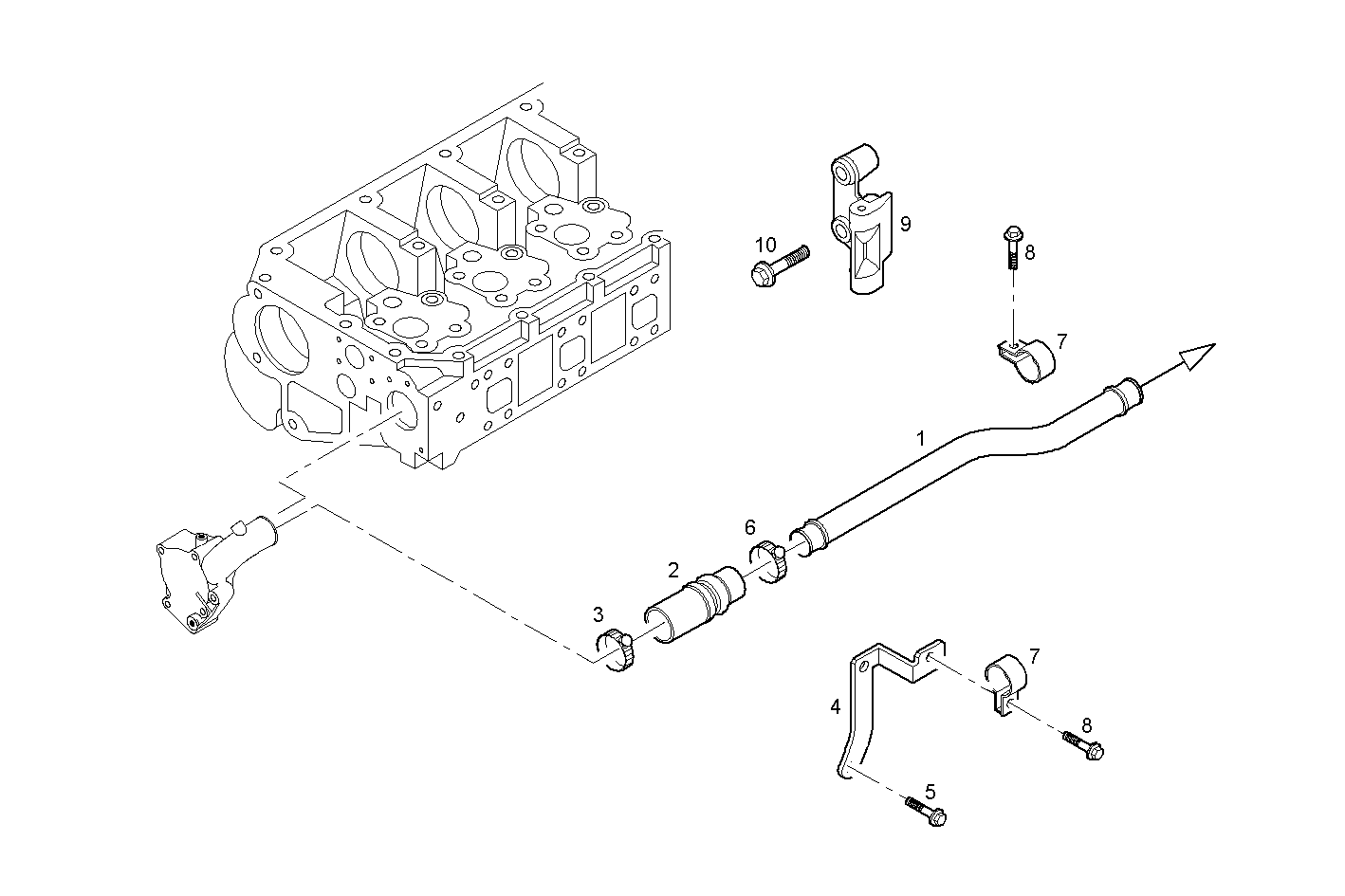

GEARBOX ENTRY PIPE
F2BE0642B*A001 — CURSOR 8 CNG
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504001772 | PIPE PIPE | 1 | |
| 2 | 500300763 | WATER HOSE WATER HOSE | 1 | |
| 3 | 17765091 | CLIP CLIP | 1 | |
| 4 | 504001770 | RETAINER RETAINER | 1 | |
| 5 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17764991 | CLIP CLIP | 1 | |
| 7 | 41033181 | CLIP CLIP | 2 | |
| 8 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 500347648 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 10 | 16588624 | HEXAGON BOLT HEXAGON BOLT | 2 |
