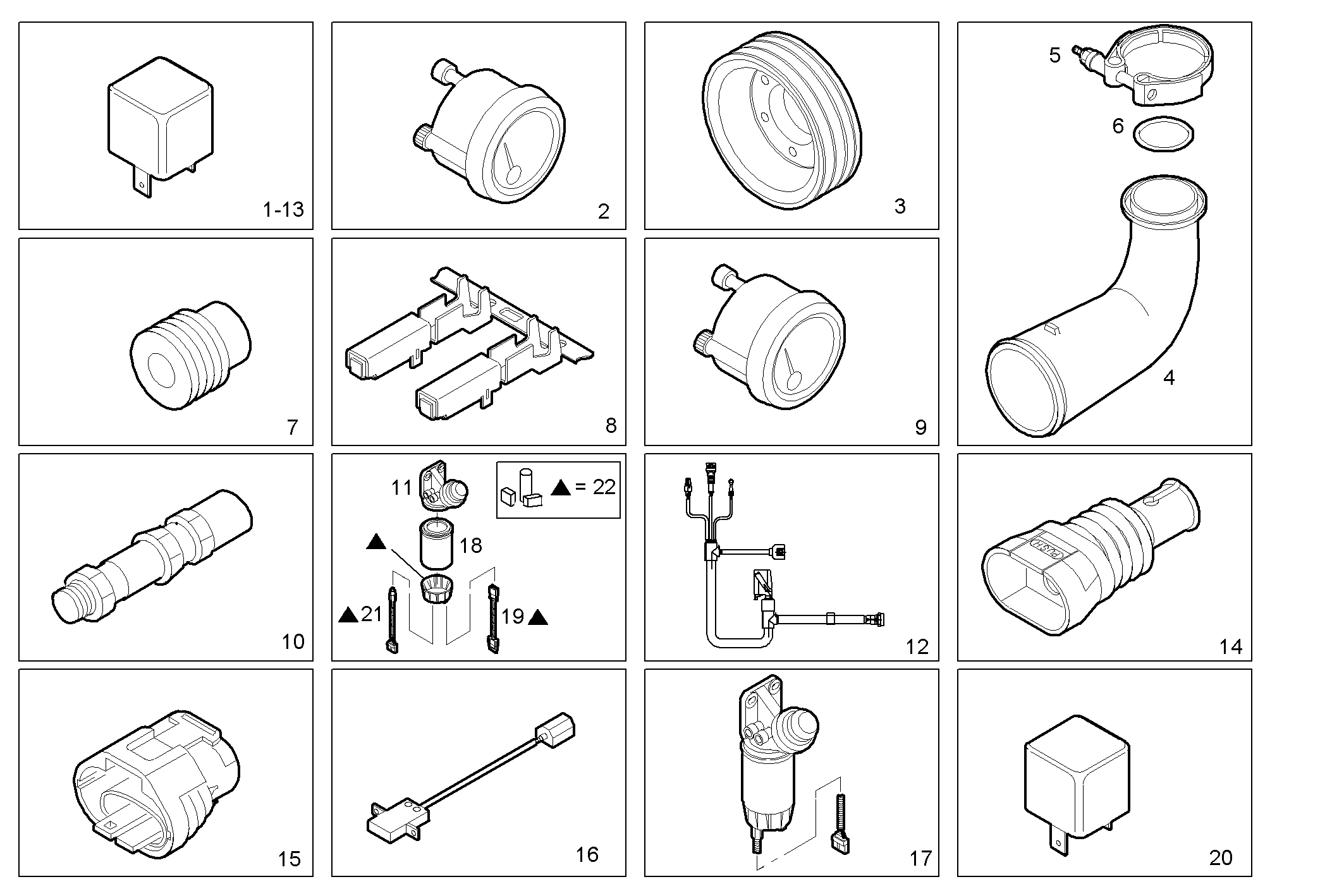

ACCESSORIES
C78ENTC25.00A003 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 41040442 | RELAY RELAY | 1 | |
| 2 | 500313802 | OIL PRESSURE GAUGE OIL PRESSURE GAUGE | 1 | |
| 3 | 504009357 | PULLEY PULLEY | 1 | |
| 4 | 61318365 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 5 | 4800661 | CLIP CLIP | 1 | |
| 6 | 17284681 | O-RING O-RING | 1 | |
| 7 | 99465963 | RUBBER BUSH RUBBER BUSH | 6 | |
| 8 | 99465966 | TERMINAL TERMINAL | 6 | |
| 9 | 4822921 | THERMOMETER THERMOMETER | 1 | |
| 10 | 500319244 | LIGHT STOP SWITCH LIGHT STOP SWITCH | 1 | |
| 11 | 42550973 | FUEL FILT.SUPPORT FUEL FILT.SUPPORT | 1 | |
| 12 | 8036518 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 13 | 500362250 | RELAY RELAY | 1 | |
| 14 | 99476793 | CAP CAP | 2 | |
| 15 | 99465498 | CONNECTION CONNECTION | 2 | |
| 16 | 99464594 | SWITCH SWITCH | 1 | |
| 17 | 504101412 | PRECLEANER PRECLEANER | 1 | |
| 18 | 42549295 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 19 | 42549296 | HEATER FUEL FILTE HEATER FUEL FILTE | 1 | |
| 20 | 500334927 | DIODE PLATE DIODE PLATE | 1 | |
| 21 | 42554066 | SENSOR SENSOR | 1 | |
| 22 | 42554741 | COVER COVER | 1 |
