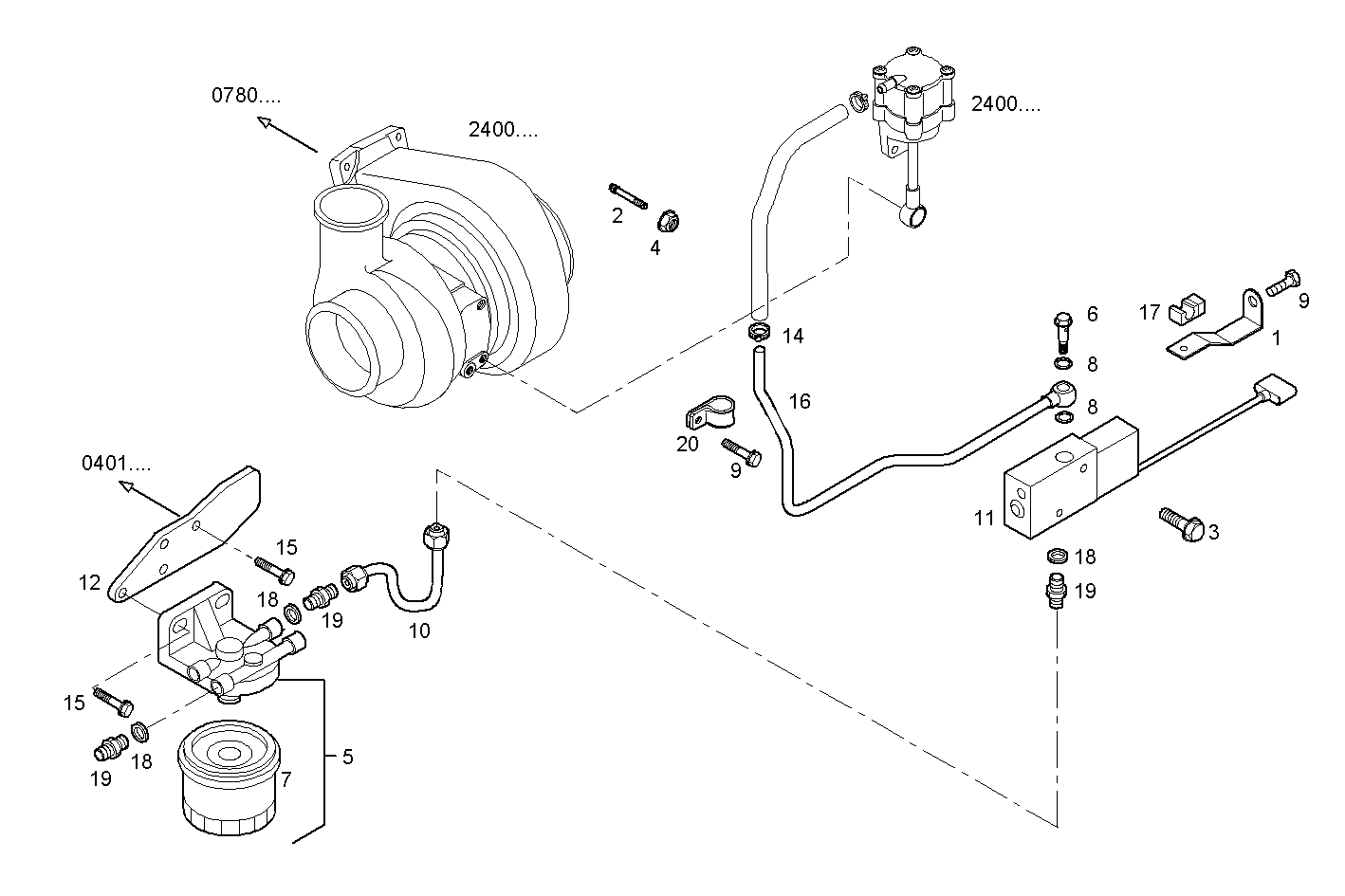

CONTROL VALVE
C78ENTC25.00A003 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500346658 | RETAINER RETAINER | 1 | |
| 2 | 500346862 | STUD STUD | 1 | |
| 3 | 16591925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 17044625 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 500344293 | FILTER AIR FILTER AIR | 1 | |
| 6 | 61585664 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 500339085 | FILTERING CARTRIDGE FILTERING CARTRIDGE | 1 | |
| 8 | 98474306 | WASHER WASHER | 2 | |
| 9 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 500366968 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 11 | 504013790 | VALVE VALVE | 1 | |
| 12 | 500366932 | SUPPORT SUPPORT | 1 | |
| 14 | 500332605 | CLIP CLIP | 1 | |
| 15 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 504022335 | PIPE PIPE | 1 | |
| 17 | 500346378 | SPRING CLAMP SPRING CLAMP | 1 | |
| 18 | 99489018 | SEAL GASKET SEAL GASKET | 3 | |
| 19 | 504081276 | THREADED UNION THREADED UNION | 3 | |
| 20 | 17316190 | PIPE CLIP PIPE CLIP | 2 |
