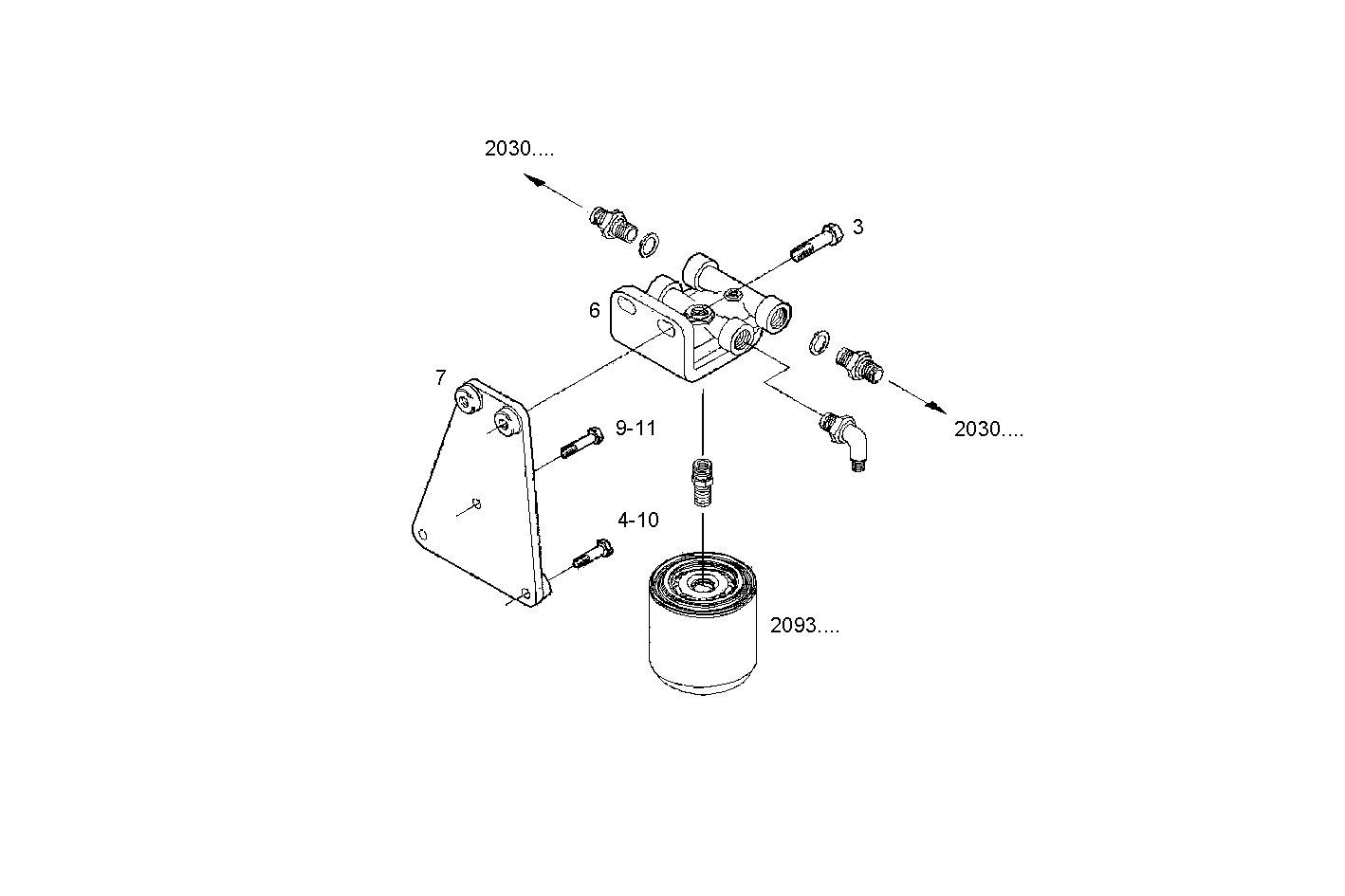

FUEL FILTER SUPPORT
C78ENTC25.00A003 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 3 | 16675835 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16586825 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 504070790 | FUEL FILT.SUPPORT FUEL FILT.SUPPORT | 1 | |
| 7 | 500346218 | SUPPORT SUPPORT | 1 | |
| 9 | 16592425 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 16586925 | HEXAGON BOLT HEXAGON BOLT | 1 |
