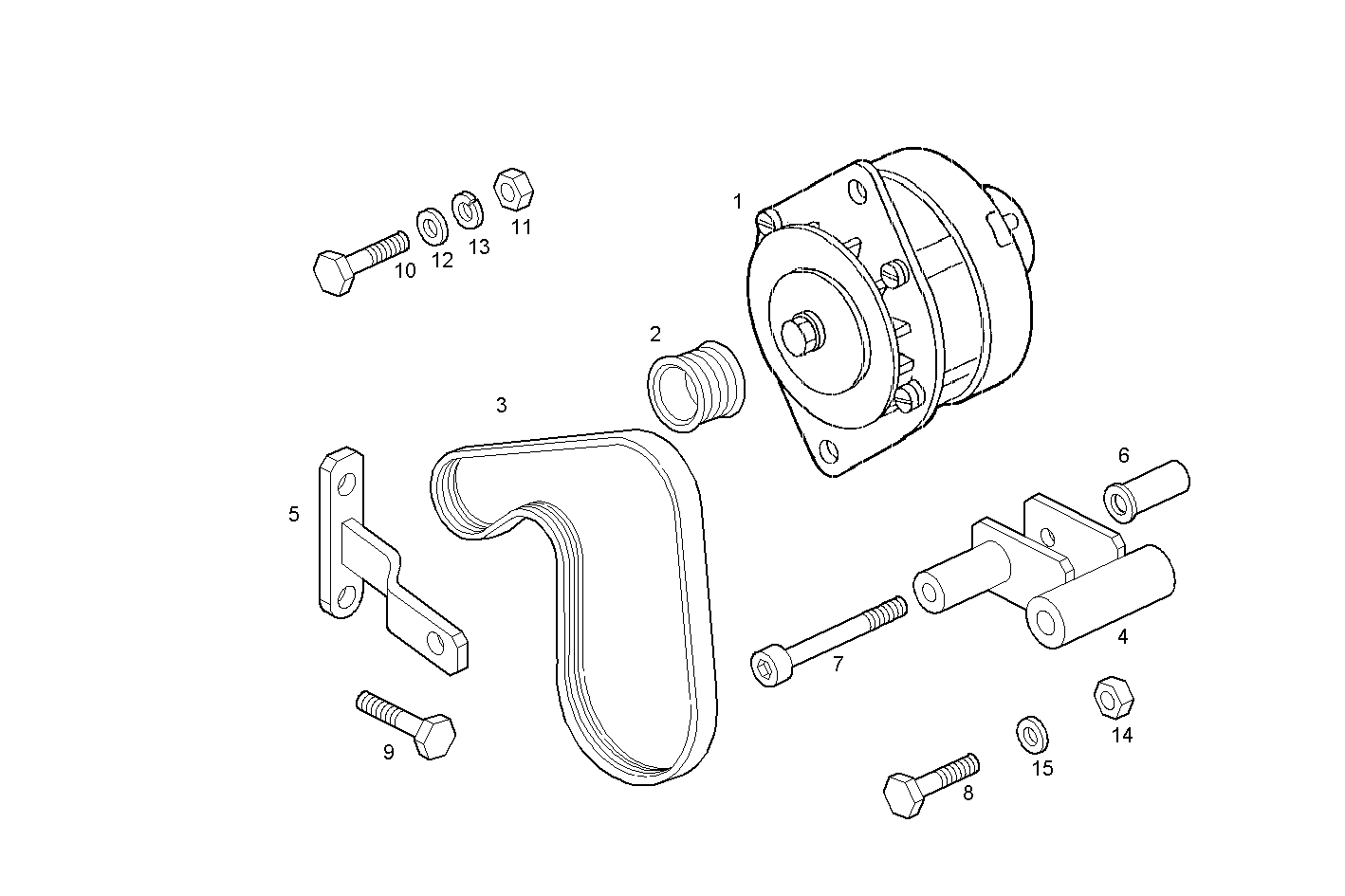

ALTERNATOR
C78ENTC26.00A004 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4831585 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 8037089 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 3 | 8037174 | V-BELT V-BELT | 1 | |
| 4 | 8037092 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 5 | 8037093 | BELT TENSIONER BELT TENSIONER | 1 | |
| 6 | 8037140 | SPACING BAR SPACING BAR | 1 | |
| 7 | 16596625 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 8 | 4604245 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16588025 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17038621 | NUT NUT | 1 | |
| 12 | 17091074 | WASHER WASHER | 1 | |
| 13 | 17091174 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 17038425 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 16665704 | WASHER WASHER | 1 |
