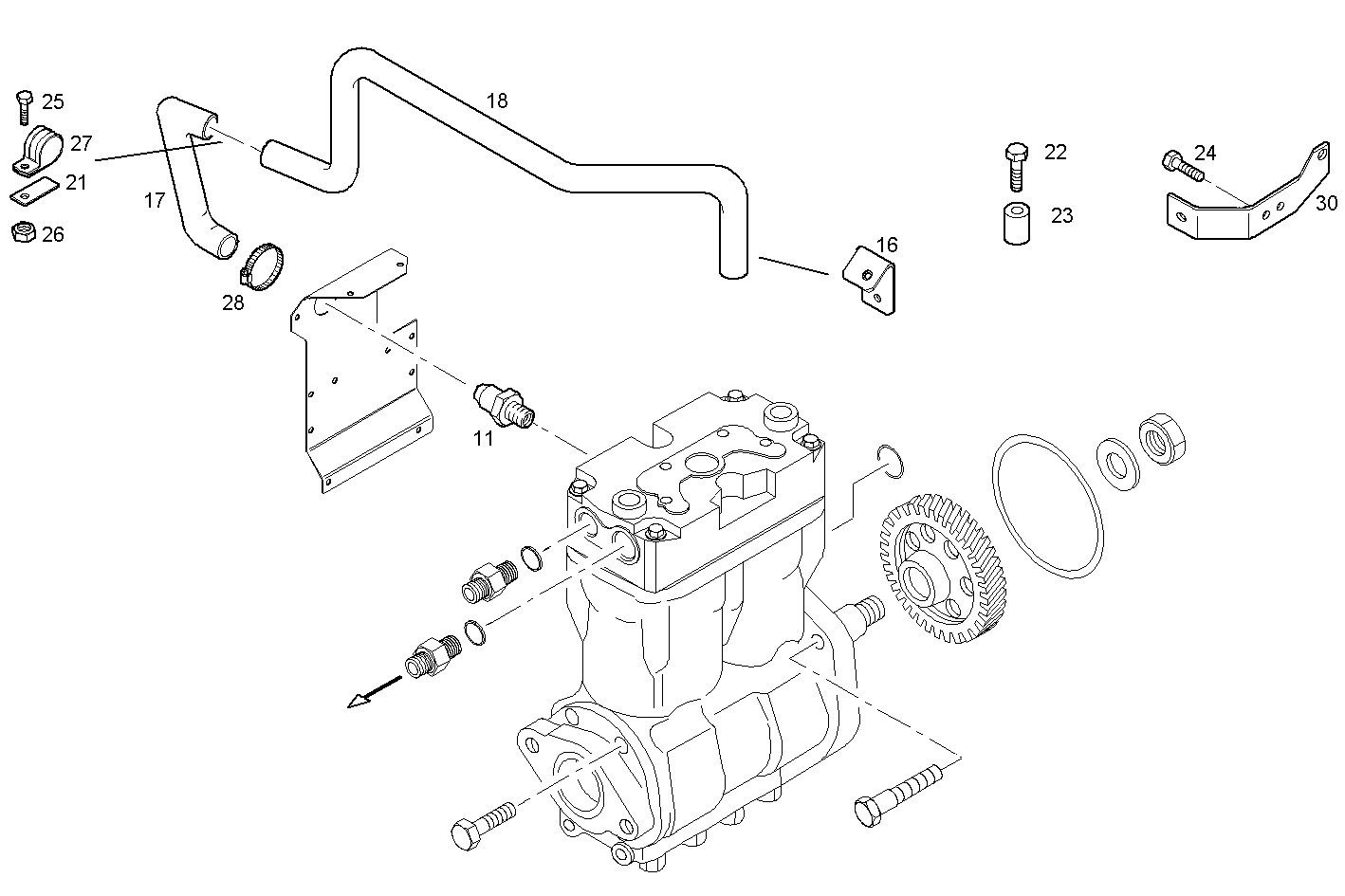

AIR COMPESSOR SUCTION
F2BE0681A*BC13 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 11 | 41232261 | THREADED UNION THREADED UNION | 1 | |
| 16 | 41226267 | SUPPORT SUPPORT | 1 | |
| 17 | 41226225 | AIR HOSE AIR HOSE | 1 | |
| 18 | 41226224 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 21 | 41226271 | SUPPORT SUPPORT | 1 | |
| 22 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 23 | 17816111 | SPACING BAR SPACING BAR | 1 | |
| 24 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 25 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 26 | 16984235 | HEXAGON NUT HEXAGON NUT | 1 | |
| 27 | 41231094 | FASTENING BRACKET FASTENING BRACKET | 3 | |
| 28 | 18088692 | HOSE CLIP HOSE CLIP | 2 | |
| 30 | 41213776 | RETAINER RETAINER | 1 |
