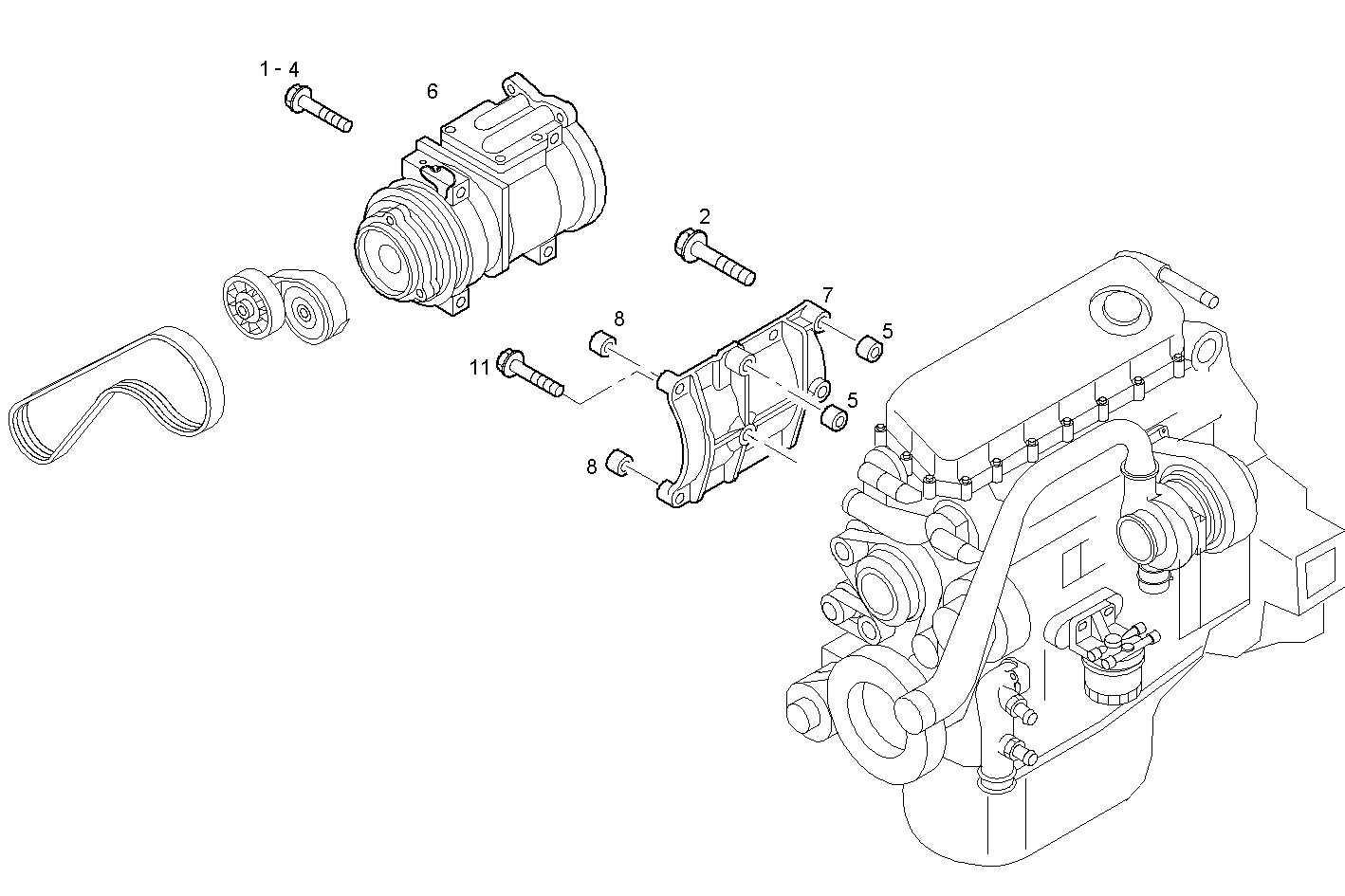

COMPRESSOR AIR CONDITIONING
F2BE0681A*BC13 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16592625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 16587425 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 16598224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 98405462 | DOWEL PIN DOWEL PIN | 2 | |
| 6 | 98497470 | AIR COND.COMPRESS. AIR COND.COMPRESS. | 1 | |
| 7 | 99435555 | SUPPORT SUPPORT | 1 | |
| 8 | 99435557 | DOWEL PIN DOWEL PIN | 2 | |
| 11 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 1 |
