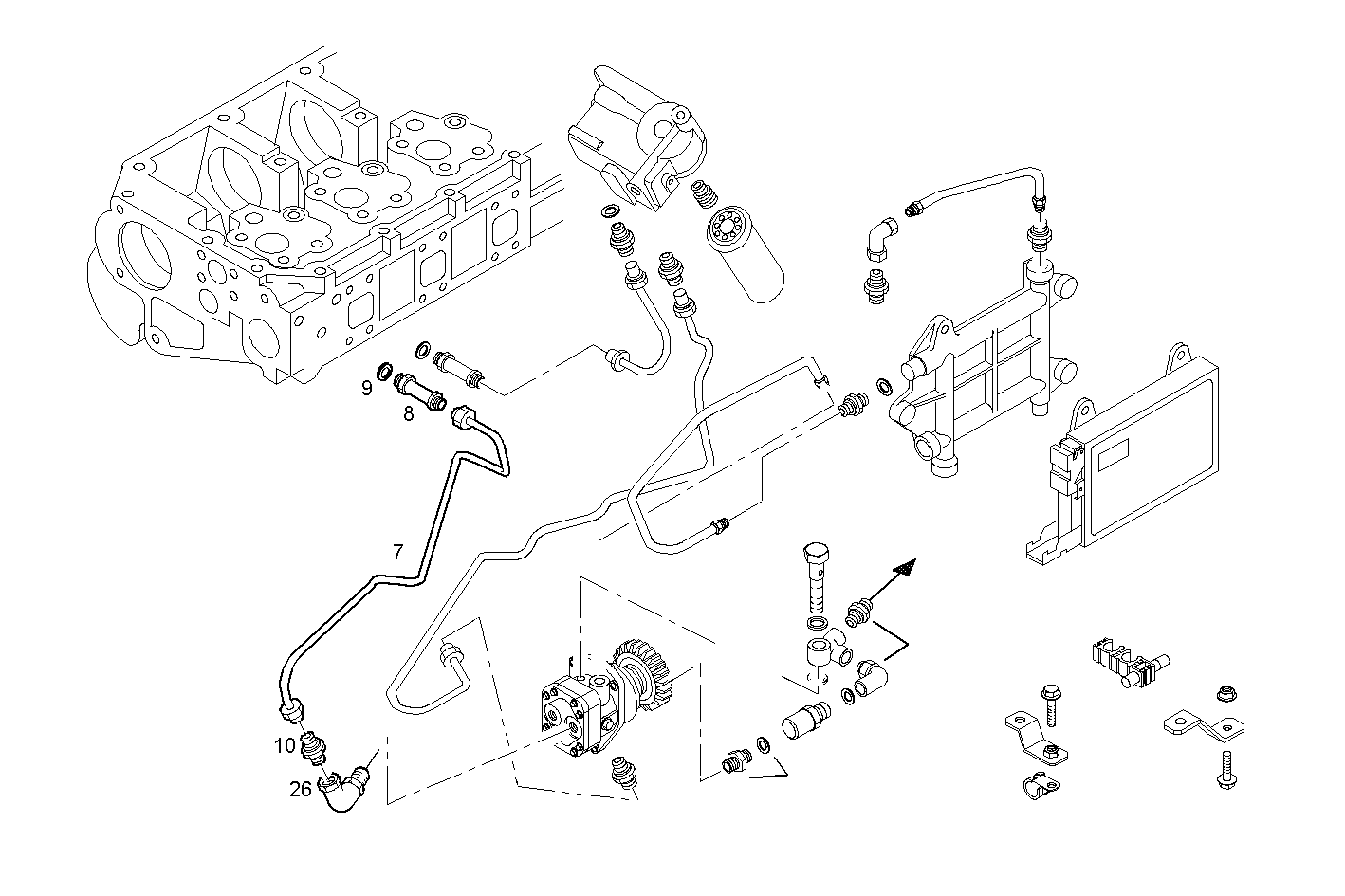

FUEL LINES - RETURN TO FUEL PUMP
F2BE0681A*BC13 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 7 | 504072855 | FUEL LINE FUEL LINE | 1 | |
| 8 | 99455351 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 9 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 26 | 16504114 | ELBOW COUPLING ELBOW COUPLING | 1 |
