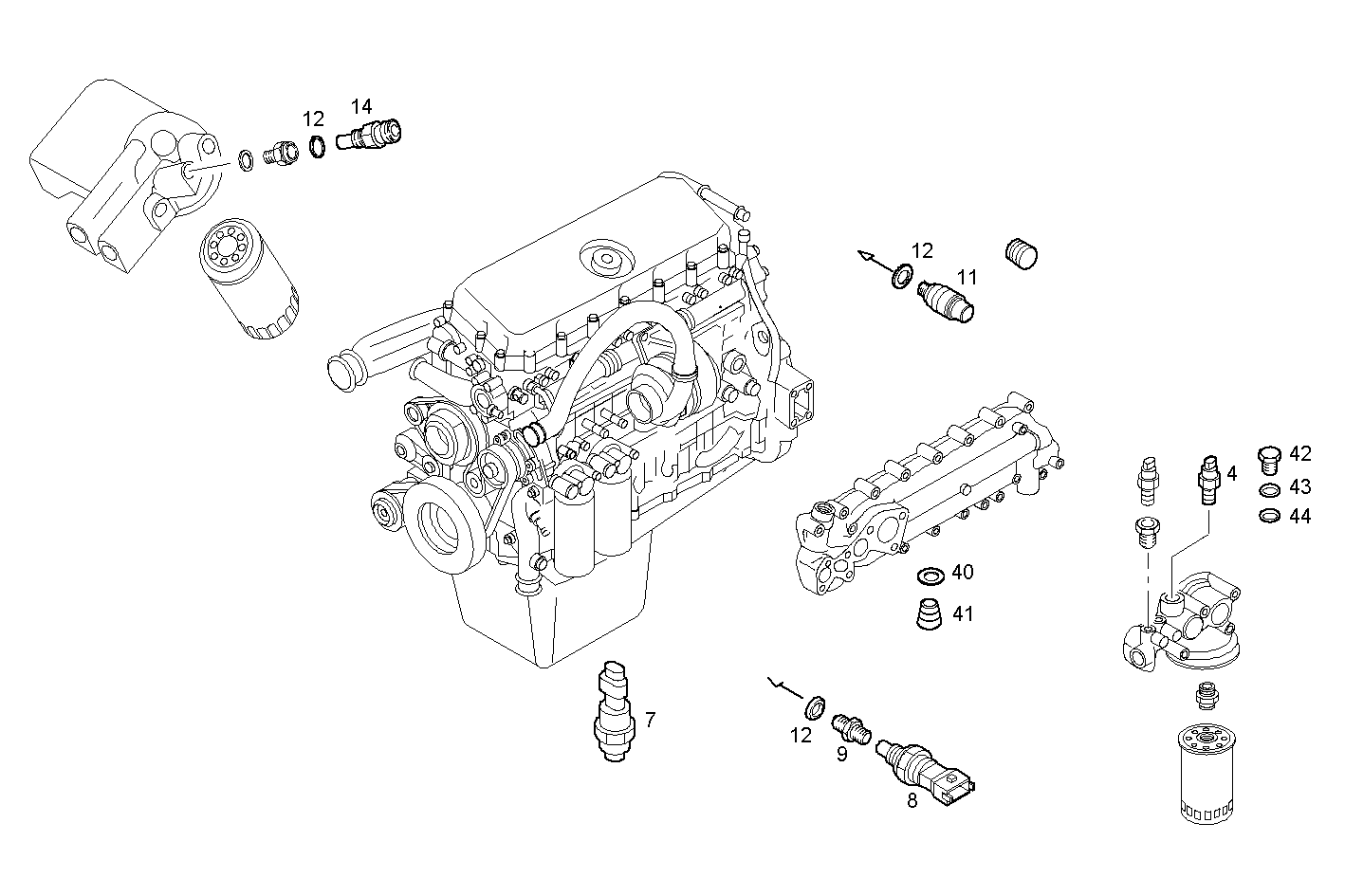

SENSORS
F2BE0681A*BC13 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 4 | 500351609 | SENSOR SENSOR | 1 | |
| 7 | 500382599 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 8 | 500377533 | SENSOR SENSOR | 1 | |
| 9 | 500356858 | THREADED UNION THREADED UNION | 1 | |
| 11 | 500346371 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 12 | 99489018 | SEAL GASKET SEAL GASKET | 3 | |
| 14 | 500346074 | TRANSMITTER TRANSMITTER | 1 | |
| 40 | 99489019 | WASHER WASHER | 1 | |
| 41 | 16992415 | THREADED PLUG THREADED PLUG | 1 | |
| 42 | 500337200 | THREADED PLUG THREADED PLUG | 1 | |
| 43 | 500337199 | O-RING O-RING | 1 | |
| 44 | 17278181 | O-RING O-RING | 1 | |
| 45 | 504051237 | THREADED PLUG THREADED PLUG | 1 |
