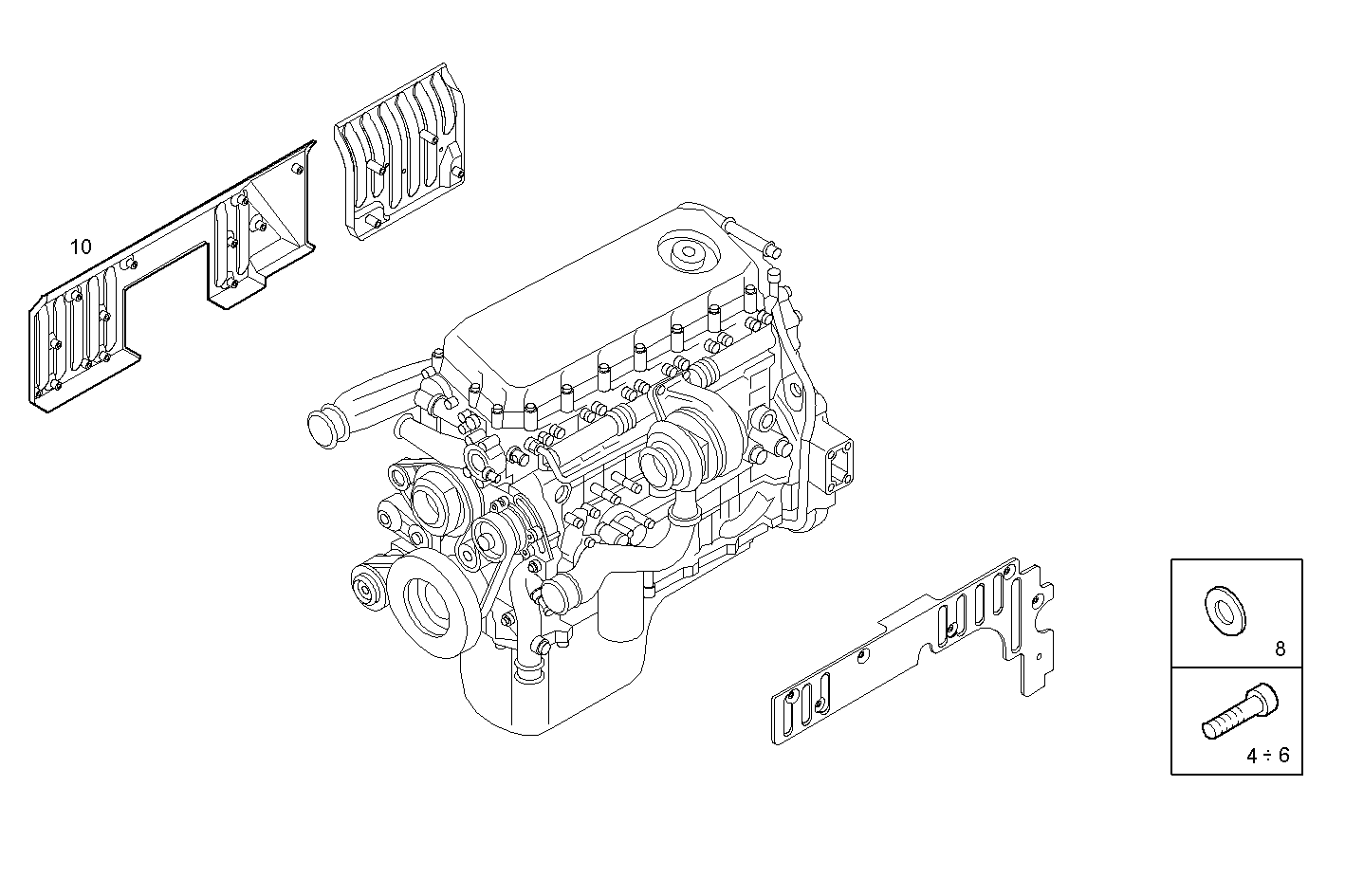

SOUND PROOFING CYLINDER HEAD
F2BE0681A*BC13 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 4 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 7 | |
| 5 | 16690824 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 6 | 16691077 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 8 | 17096824 | WASHER WASHER | 4 | |
| 10 | 99487109 | PROTECTION PROTECTION | 1 |
